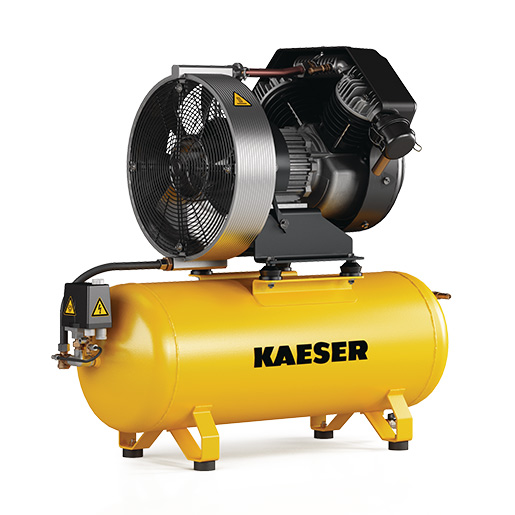

KAESER Industrial Reciprocating compressors model KCT 550-100 (horizontal) oil-free
Volume flow at 6 bar: 390 l/min | Maximum overpressure: 10 bar | Pressure tank: 90 liters | Electrical connection: 400 V / 3 Ph / 50 Hz
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
1.5981.2Category :
KAESER oil-free industrial compressorsWeight :
100.00 kgDelivery area :
GermanyDirect-coupled systems:
- very compact design with direct coupling between drive motor and compressor block
- Very durable thanks to Teflon piston rings and low speed (1500 1/min)
- Compressed air tank with internal coating
| Volume flow at 6 bar (l/min) | 390 |
| Volume flow at 8 bar (l/min) | 350 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 3,0 |
| Number of cylinders | 2 |
| Nominal synchronous speed (1/min) | 1500 |
| Volume of compressed air tank (litres) | 90 |
| Emission sound pressure level (dB(A)) | 79 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Width (mm) | 1150 |
| Depth (mm) | 480 |
| Height (mm) | 950 |
| Weight (kg) | 100 |
| Design | stationary |
