RIEGLER Service unit 2-part »multifix«, Protective cage, Size 3, G 3/4
Type number: CL 34 S
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Wartungseinheit 2-tlg. »multifix«, PC-Behälter und Schutzkorb, BG 3, G 3/4, Eingangsdruck max. 16 bar, Regelbereich 0,5 - 10 bar
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Dropper attachment | PA |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 3/4 |
| Flow rate | 5800 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 20 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 3 |
| A | 134.8 mm |
| B | 246.3 mm |
| C | 99 mm |
| D | 147.3 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100571] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 1, G 1/4](/web/image/product.template/140006/image_128/%5B100571%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=c5f3133)
|
Type number: CL 11 S |
94.24 € | |
![[100572] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 1, G 3/8](/web/image/product.template/140007/image_128/%5B100572%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=03218d7)
|
Type number: CL 12 S |
97.41 € | |

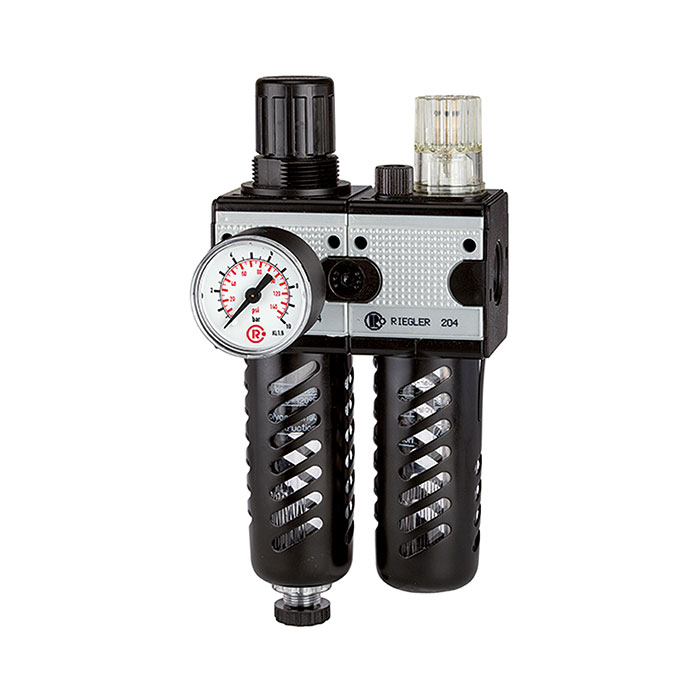

![[100573] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 3, G 1/2](/web/image/product.template/140008/image_128/%5B100573%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%201-2?unique=4fd6538)
|
Type number: CL 33 S |
157.26 € | |
![[133124] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 4, G 1](/web/image/product.template/202774/image_128/%5B133124%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%201?unique=5ef6ac0)
|
Type number: CL 45 S-10 |
288.67 € | |
![[133123] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 4, G 3/4](/web/image/product.template/202773/image_128/%5B133123%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%203-4?unique=d30b9e1)
|
Type number: CL 44 S-10 |
288.67 € | |
![[100575] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 5, G 1](/web/image/product.template/140010/image_128/%5B100575%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%205%2C%20G%201?unique=46948f4)
|
Type number: CL 55 S |
422.07 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=9630c6a)
|
Type number: 32 |
34.57 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=dfc77c6)
|
Type number: 655.6.900 |
36.96 € | |
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=afc3da2)
|
Type number: 1233.7.909 |
18.71 € | |
![[100439] RIEGLER Mounting bracket with nut M50x1.5, for »multifix«, Size 3](/web/image/product.template/139873/image_128/%5B100439%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M50x1.5%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203?unique=064bf09)
|
Type number: MV 50 |
5.28 € | |
![[100440] RIEGLER Control panel nut M50x1.5, for »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139874/image_128/%5B100440%5D%20RIEGLER%20Control%20panel%20nut%20M50x1.5%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=b44d26b)
|
Type number: R 33-55 |
1.82 € | |
![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=183b5e0)
|
Type number: ZW 33 |
5.00 € | |
![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=bb3a998)
|
Type number: KP 33 |
2.02 € | |

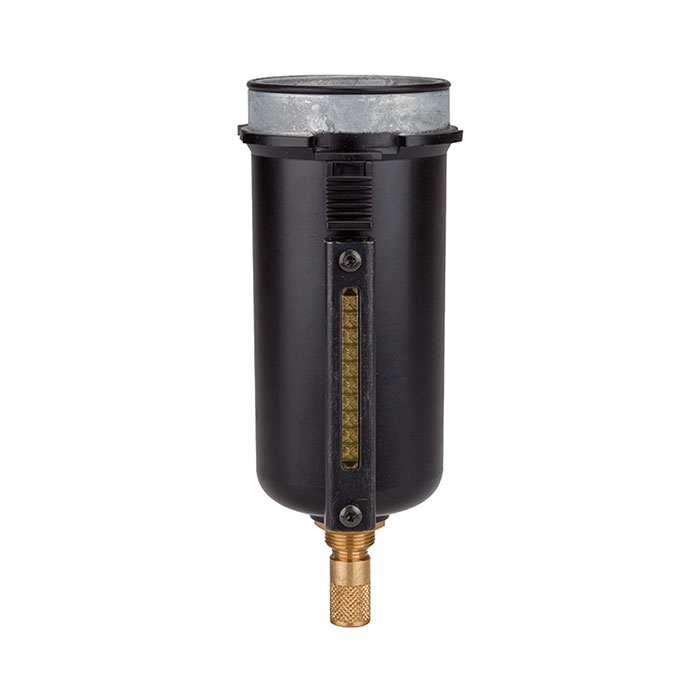

![[100502] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139937/image_128/%5B100502%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=641c165)
|
Type number: MS 33 FS |
34.69 € | |
![[100503] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139938/image_128/%5B100503%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=49eea46)
|
Type number: MS 33 FS-A |
74.98 € | |

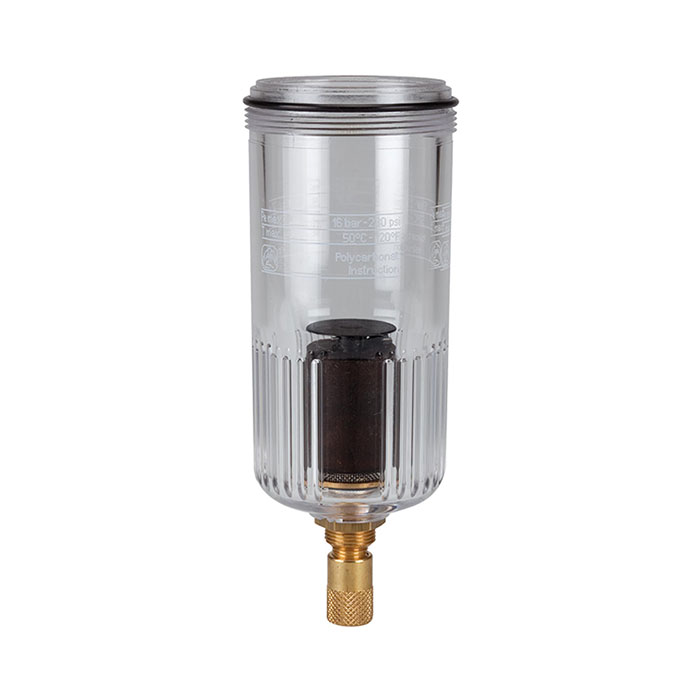

![[100505] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139940/image_128/%5B100505%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=94339bc)
|
Type number: KS 33 F-A |
45.98 € | |

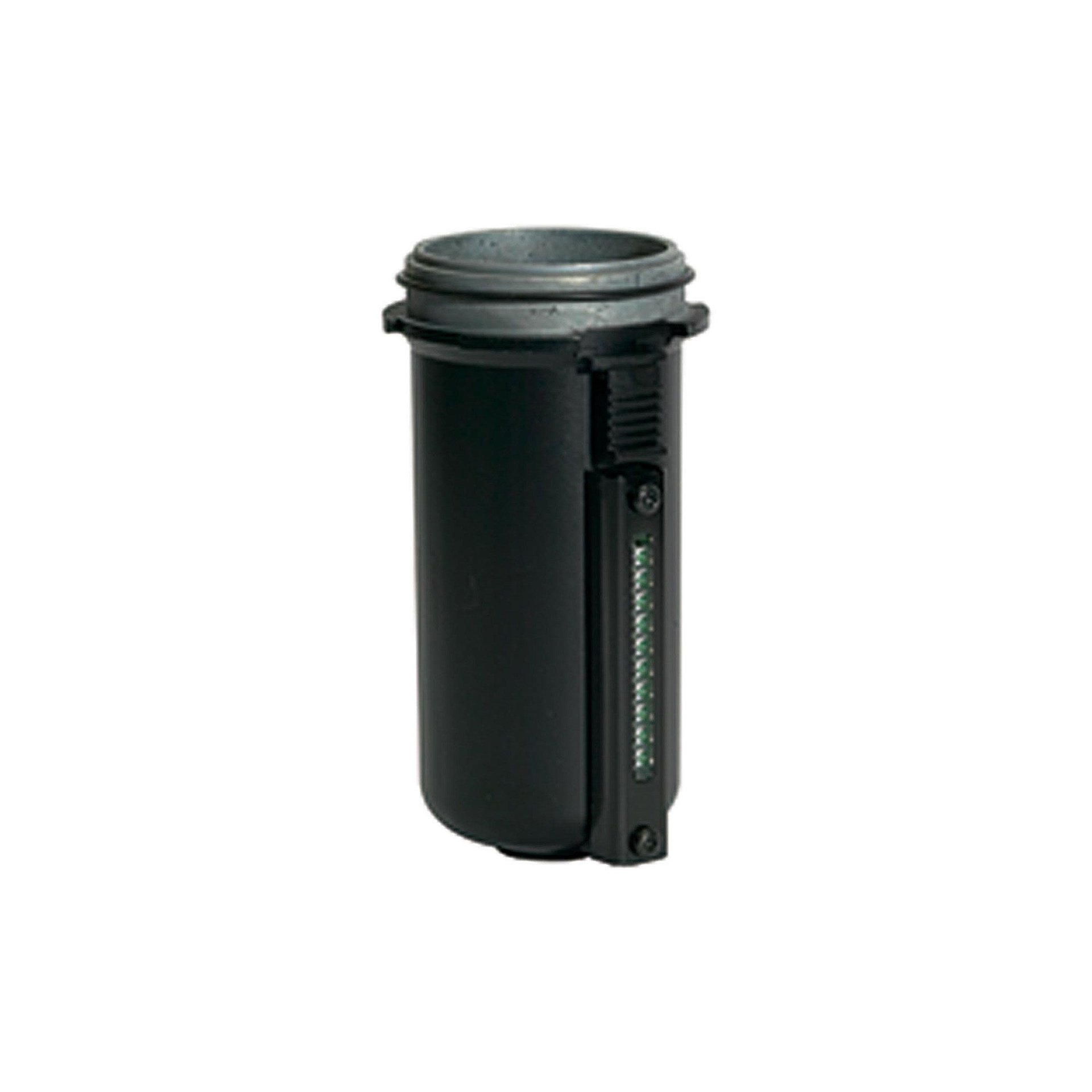

![[100549] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139984/image_128/%5B100549%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=6317f17)
|
Type number: MS 33 NS |
32.64 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100392] RIEGLER Drip cap polyamide PA, Thread M24x1.5](/web/image/product.template/139826/image_128/%5B100392%5D%20RIEGLER%20Drip%20cap%20polyamide%20PA%2C%20Thread%20M24x1.5?unique=a575e3a)
|
Type number: 1233.7.990 |
9.50 € | |
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=868d0bd)
|
Type number: 633.6.905 |
14.08 € | |

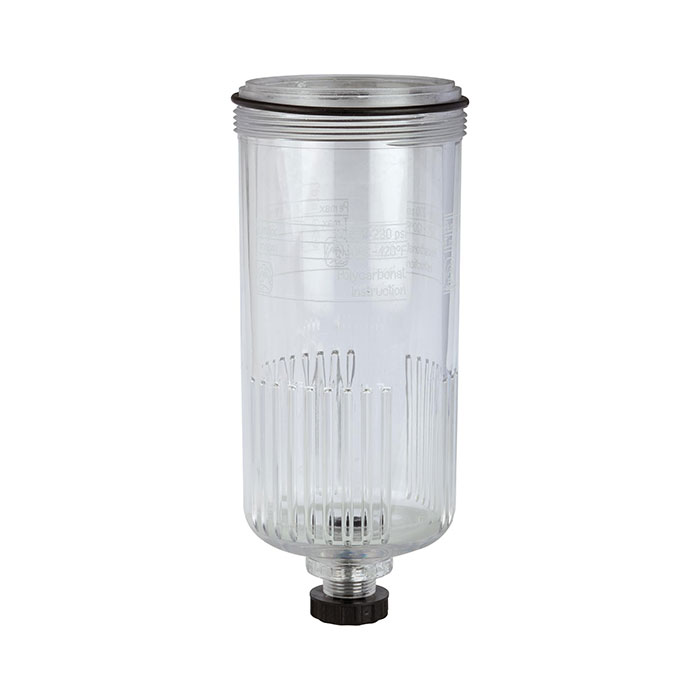

![[100504] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139939/image_128/%5B100504%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=cfb5eba)
|
Type number: KS 33 F-HA |
13.66 € | |

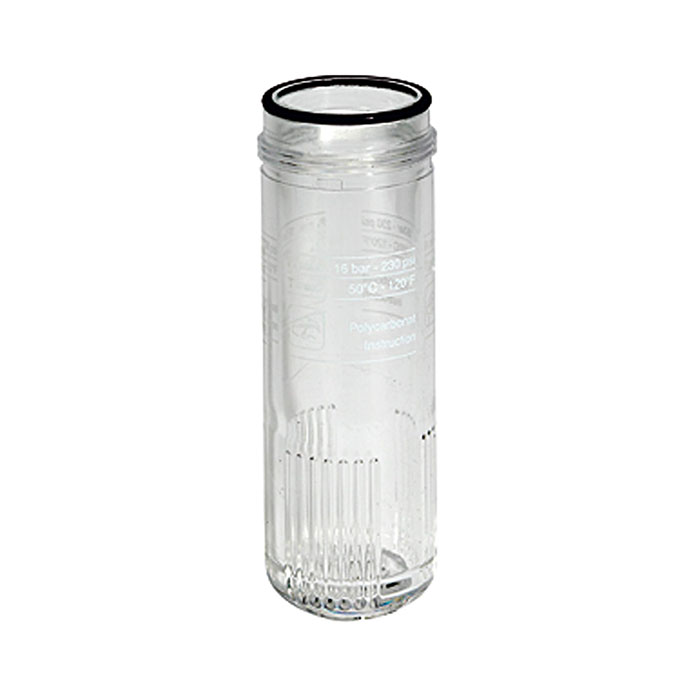

![[100548] RIEGLER Polycarbonate container, incl. O-ring, for »multifix«, Size 3+5](/web/image/product.template/139983/image_128/%5B100548%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2B5?unique=3317214)
|
Type number: KS 33 N |
12.30 € | |
![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=2d7a133)
|
Type number: SK 33 |
10.91 € | |
![[101678] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169650/image_128/%5B101678%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=2d0571b)
|
Type number: 207-KD |
6.30 € | |

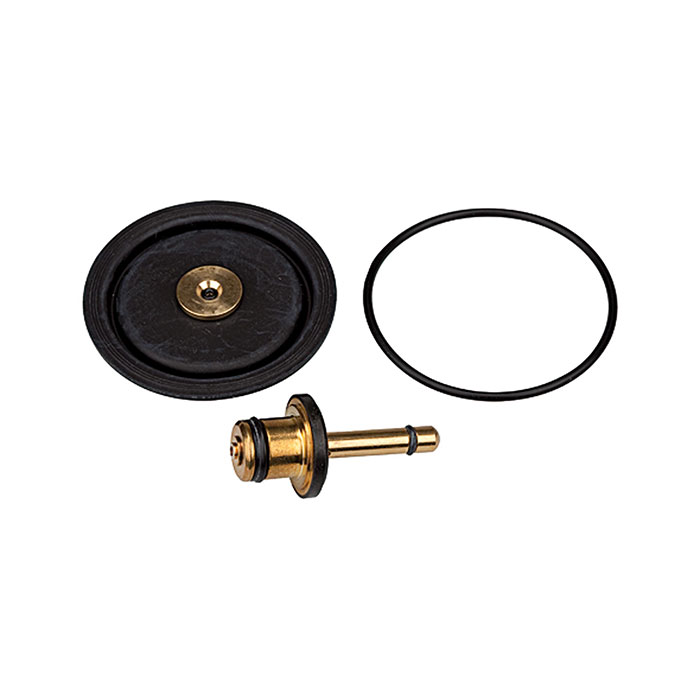

![[100444] RIEGLER Wear part set incl. membrane, Valve cone and O-ring 50x2](/web/image/product.template/139878/image_128/%5B100444%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring%2050x2?unique=4990228)
|
