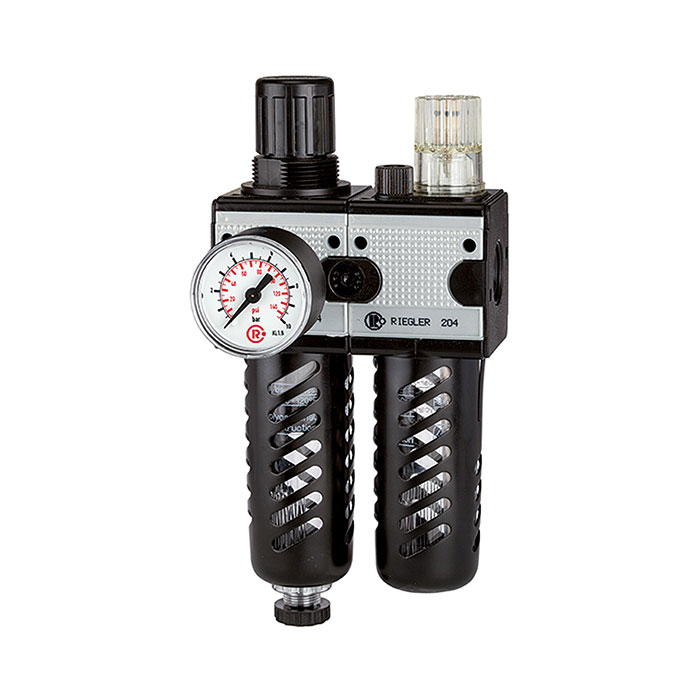

RIEGLER Service unit 2-part »multifix«, Protective cage, Size 1, G 1/4
Type number: CL 11 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Wartungseinheit 2-tlg. »multifix«, PC-Behälter und Schutzkorb, BG 1, G 1/4, Eingangsdruck max. 16 bar, Regelbereich 0,5 - 10 bar
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Dropper attachment | PA |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/4 |
| Flow rate | 1200 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 6 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 1 |
| A | 92.8 mm |
| B | 192.1 mm |
| C | 67 mm |
| D | 125.1 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100572] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 1, G 3/8](/web/image/product.template/140007/image_128/%5B100572%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=c22a218)
|
Type number: CL 12 S |
97.40 € | |
![[100573] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 3, G 1/2](/web/image/product.template/140008/image_128/%5B100573%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%201-2?unique=631e55d)
|
Type number: CL 33 S |
154.69 € | |

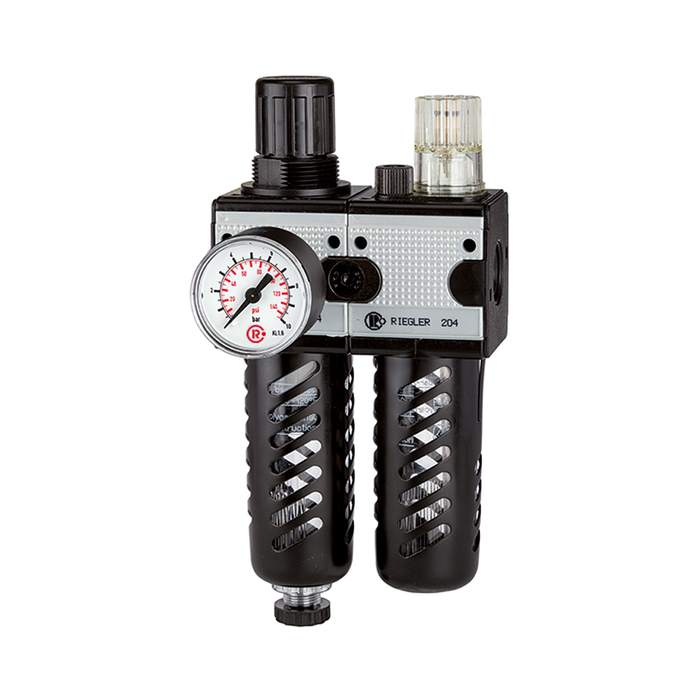

![[100574] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 3, G 3/4](/web/image/product.template/140009/image_128/%5B100574%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%203-4?unique=c989430)
|
Type number: CL 34 S |
153.28 € | |
![[133124] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 4, G 1](/web/image/product.template/202774/image_128/%5B133124%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%201?unique=fcdb53c)
|
Type number: CL 45 S-10 |
288.66 € | |

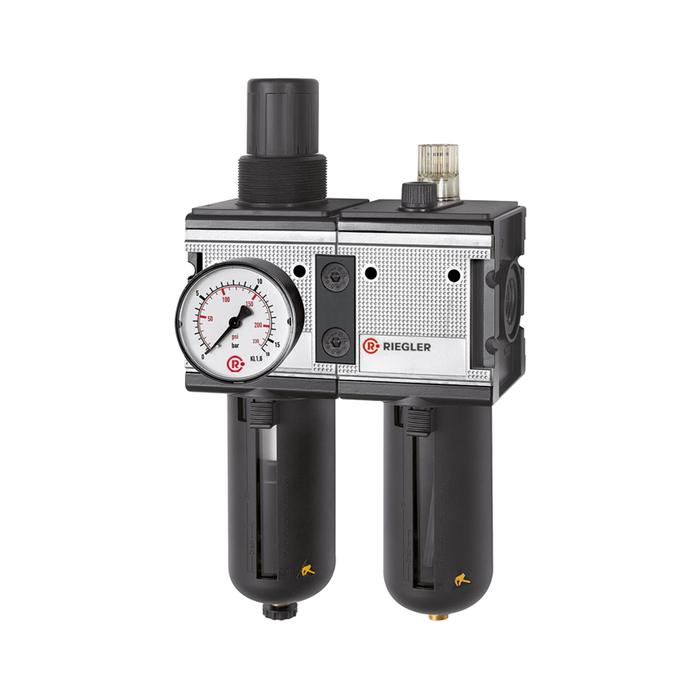

![[133123] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 4, G 3/4](/web/image/product.template/202773/image_128/%5B133123%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%203-4?unique=dccac9b)
|
Type number: CL 44 S-10 |
288.66 € | |
![[100575] RIEGLER Service unit 2-part »multifix«, Protective cage, Size 5, G 1](/web/image/product.template/140010/image_128/%5B100575%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%205%2C%20G%201?unique=2598579)
|
Type number: CL 55 S |
422.07 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100392] RIEGLER Drip cap polyamide PA, Thread M24x1.5](/web/image/product.template/139826/image_128/%5B100392%5D%20RIEGLER%20Drip%20cap%20polyamide%20PA%2C%20Thread%20M24x1.5?unique=c8ff26e)
|
Type number: 1233.7.990 |
9.48 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=880b63d)
|
Type number: 611.6.905 |
9.46 € | |

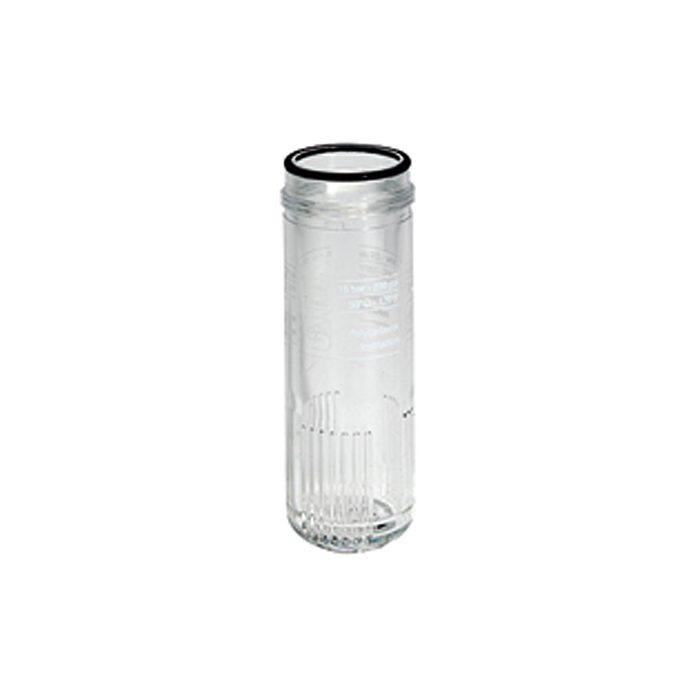

![[100385] RIEGLER Polycarbonate container incl. O-ring](/web/image/product.template/139819/image_128/%5B100385%5D%20RIEGLER%20Polycarbonate%20container%20incl.%20O-ring?unique=7eb4cc2)
|
Type number: KS 11 N |
7.22 € | |

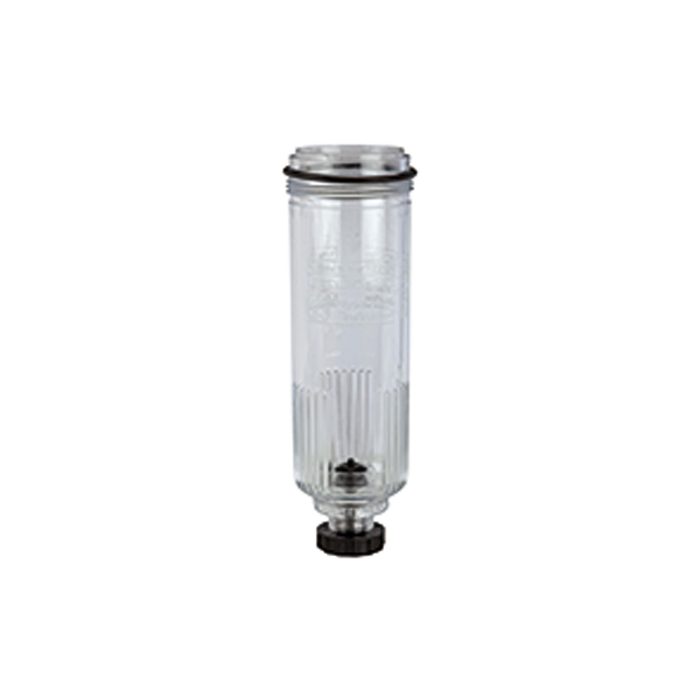

![[100500] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139935/image_128/%5B100500%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=aa861d7)
|
Type number: KS 11 F-HA |
13.15 € | |

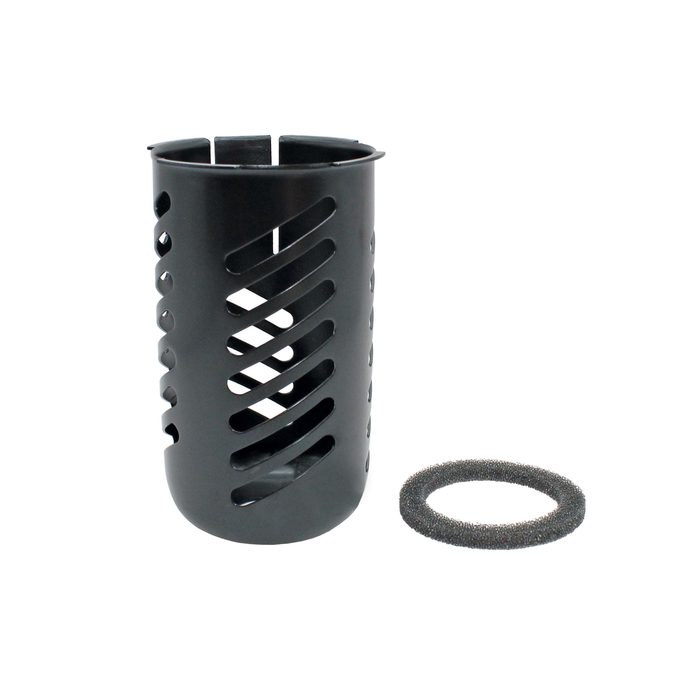

![[100501] RIEGLER Protective cage, for »multifix«, Size 1, G 1/4 and G 3/8](/web/image/product.template/139936/image_128/%5B100501%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=bf28f17)
|
Type number: SK 11 |
9.51 € | |
![[116901] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 16.0 bar/230 psi, Ø40](/web/image/product.template/274706/image_128/%5B116901%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%2016.0%20bar-230%20psi%2C%20%C3%9840?unique=a9d368c)
|
Type number: 110.04-KD |
5.77 € | |
![[100438] RIEGLER Wear part set incl. membrane, Valve cone and O-ring 30x2](/web/image/product.template/139872/image_128/%5B100438%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring%2030x2?unique=73324b5)
|
Type number: 22.1811.4 |
24.32 € | |
