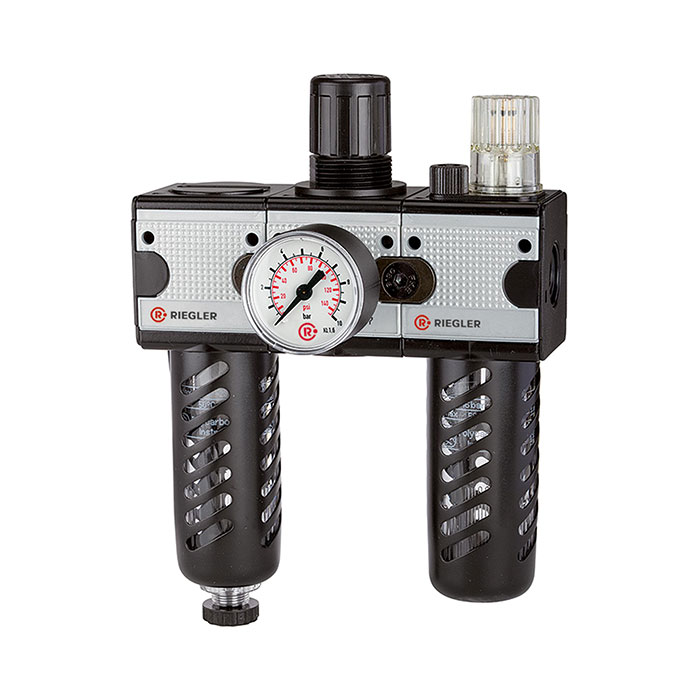

RIEGLER Service unit 3-part »multifix«, Protective cage, Size 1, G 1/4
Type number: FRL 11 S
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Service unit 3-part »multifix«, PC container, Protective cage, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.5-10 bar
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Dropper attachment | PA |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/4 |
| Flow rate | 1200 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 6 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 1 |
| A | 137.8 mm |
| B | 192.1 mm |
| C | 67 mm |
| D | 125.1 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100587] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 1, G 3/8](/web/image/product.template/140022/image_128/%5B100587%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=a94e36d)
|
Type number: FRL 12 S |
116.29 € | |
![[100588] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 3, G 1/2](/web/image/product.template/140023/image_128/%5B100588%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%201-2?unique=7589b1c)
|
Type number: FRL 33 S |
169.24 € | |
![[100589] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 3, G 3/4](/web/image/product.template/140024/image_128/%5B100589%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%203-4?unique=bd7b191)
|
Type number: FRL 34 S |
169.24 € | |
![[133128] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 4, G 1](/web/image/product.template/202778/image_128/%5B133128%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%201?unique=3e3d276)
|
Type number: FRL 45 S-10 |
339.67 € | |
![[133127] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 4, G 3/4](/web/image/product.template/202777/image_128/%5B133127%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%203-4?unique=9fe679f)
|
Type number: FRL 44 S-10 |
339.67 € | |
![[100590] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 5, G 1](/web/image/product.template/140025/image_128/%5B100590%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%205%2C%20G%201?unique=49a5655)
|
Type number: FRL 55 S |
436.10 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=a056128)
|
Type number: 32 |
34.57 € | |
![[100344] RIEGLER Mounting bracket with nut M30x1.5](/web/image/product.template/139778/image_128/%5B100344%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M30x1.5?unique=e03fd01)
|
Type number: MV 30 |
5.11 € | |
![[100345] RIEGLER Control panel nut M30x1.5, for »multifix-mini« and »multifix«](/web/image/product.template/139779/image_128/%5B100345%5D%20RIEGLER%20Control%20panel%20nut%20M30x1.5%2C%20for%20%C2%BBmultifix-mini%C2%AB%20and%20%C2%BBmultifix%C2%AB?unique=27584db)
|
Type number: R 11-55 |
1.64 € | |
![[100361] RIEGLER Polycarbonate container, incl. O-ring, fully autom. bleeder valve](/web/image/product.template/139795/image_128/%5B100361%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20fully%20autom.%20bleeder%20valve?unique=28e83ff)
|
Type number: KS 11 F-A |
43.65 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=2982ee1)
|
Type number: 655.6.900 |
36.96 € | |
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=ffae751)
|
Type number: 1233.7.909 |
18.71 € | |
![[100435] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 1, G 1/4, G 3/8](/web/image/product.template/139869/image_128/%5B100435%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20G%203-8?unique=e3fb7ab)
|
Type number: ZW 11 |
3.63 € | |
![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=38ba8c3)
|
Type number: KP 11 |
2.00 € | |
![[100498] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139933/image_128/%5B100498%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=9d9a4fc)
|
Type number: MS 11 FS |
27.48 € | |
![[100499] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139934/image_128/%5B100499%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=88d1544)
|
Type number: MS 11 FS-A |
62.71 € | |
![[100547] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139982/image_128/%5B100547%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=36ee95f)
|
Type number: MS 11 NS |
26.11 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100392] RIEGLER Drip cap polyamide PA, Thread M24x1.5](/web/image/product.template/139826/image_128/%5B100392%5D%20RIEGLER%20Drip%20cap%20polyamide%20PA%2C%20Thread%20M24x1.5?unique=e961ce3)
|
Type number: 1233.7.990 |
9.50 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=1c09ebb)
|
Type number: 611.6.905 |
13.14 € | |
![[100385] RIEGLER Polycarbonate container incl. O-ring](/web/image/product.template/139819/image_128/%5B100385%5D%20RIEGLER%20Polycarbonate%20container%20incl.%20O-ring?unique=d7bd80e)
|
Type number: KS 11 N |
7.34 € | |
![[100500] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139935/image_128/%5B100500%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=af14198)
|
Type number: KS 11 F-HA |
13.16 € | |
![[100501] RIEGLER Protective cage, for »multifix«, Size 1, G 1/4 and G 3/8](/web/image/product.template/139936/image_128/%5B100501%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=fde1e3b)
|
Type number: SK 11 |
9.51 € | |
![[116901] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 16.0 bar/230 psi, Ø40](/web/image/product.template/274706/image_128/%5B116901%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%2016.0%20bar-230%20psi%2C%20%C3%9840?unique=c6ec50f)
|
Type number: 110.04-KD |
5.82 € | |
![[100438] RIEGLER Wear part set incl. membrane, Valve cone and O-ring 30x2](/web/image/product.template/139872/image_128/%5B100438%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring%2030x2?unique=77b8306)
|
Type number: 22.1811.4 |
24.66 € | |
