RIEGLER Service unit 3-part »multifix«, Protective cage, Size 3, G 1/2
Type number: FRL 33 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "multifix" maintenance unit made of die-cast zinc, for compressed air preparation - type FRL 33 S
The RIEGLER 3-piece "multifix" maintenance unit, PC fitting, protective cage, BG3, G1/2 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 5800 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, polycarbonate container with protective cage. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Dropper attachment | PA |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/2 |
| Flow rate | 5800 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 15 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 3 |
| A | 200.8 mm |
| B | 246.3 mm |
| C | 99 mm |
| D | 147.3 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100586] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 1, G 1/4](/web/image/product.template/140021/image_128/%5B100586%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=772c7c4)
|
Type number: FRL 11 S |
116.29 € | |
![[100587] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 1, G 3/8](/web/image/product.template/140022/image_128/%5B100587%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=ba8b44f)
|
Type number: FRL 12 S |
116.29 € | |

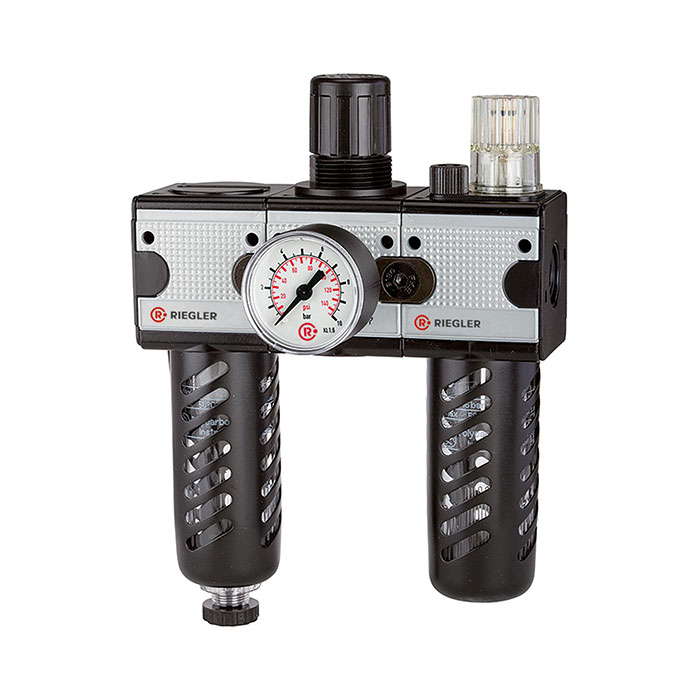

![[100589] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 3, G 3/4](/web/image/product.template/140024/image_128/%5B100589%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%203%2C%20G%203-4?unique=c0ce420)
|
Type number: FRL 34 S |
166.47 € | |

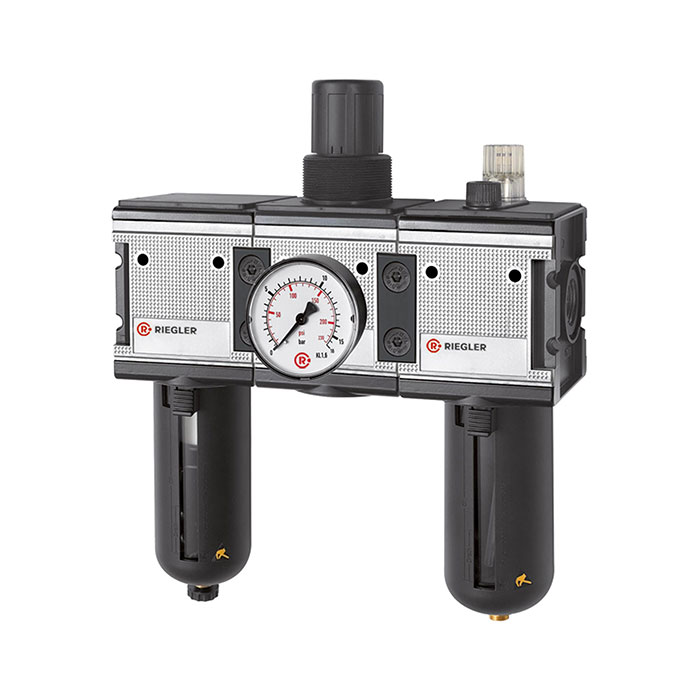

![[133128] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 4, G 1](/web/image/product.template/202778/image_128/%5B133128%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%201?unique=33c275c)
|
Type number: FRL 45 S-10 |
334.10 € | |
![[133127] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 4, G 3/4](/web/image/product.template/202777/image_128/%5B133127%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%204%2C%20G%203-4?unique=7b2a8f7)
|
Type number: FRL 44 S-10 |
334.10 € | |
![[100590] RIEGLER Service unit 3-part »multifix«, Protective cage, Size 5, G 1](/web/image/product.template/140025/image_128/%5B100590%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%2C%20Protective%20cage%2C%20Size%205%2C%20G%201?unique=653f470)
|
Type number: FRL 55 S |
428.96 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100392] RIEGLER Drip cap polyamide PA, Thread M24x1.5](/web/image/product.template/139826/image_128/%5B100392%5D%20RIEGLER%20Drip%20cap%20polyamide%20PA%2C%20Thread%20M24x1.5?unique=c54de14)
|
Type number: 1233.7.990 |
9.48 € | |
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=c07d854)
|
Type number: 633.6.905 |
13.89 € | |

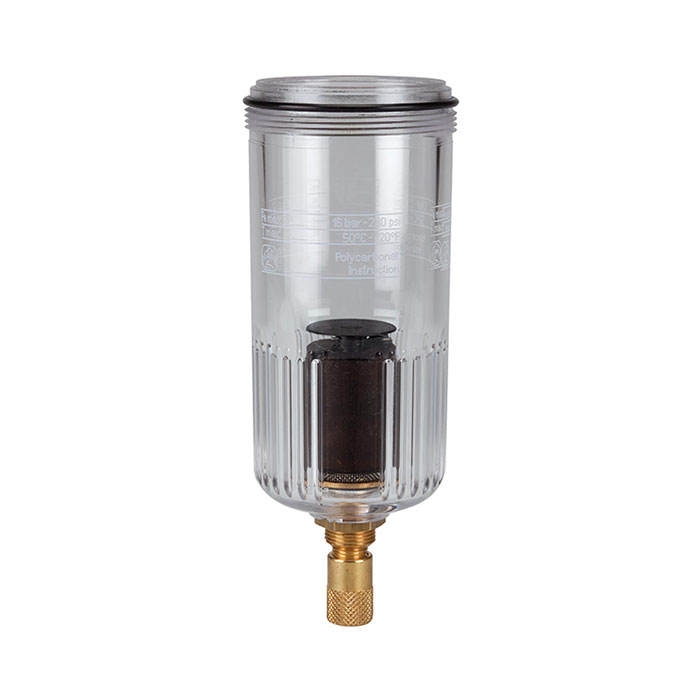

![[100504] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139939/image_128/%5B100504%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=24ed19a)
|
Type number: KS 33 F-HA |
14.14 € | |

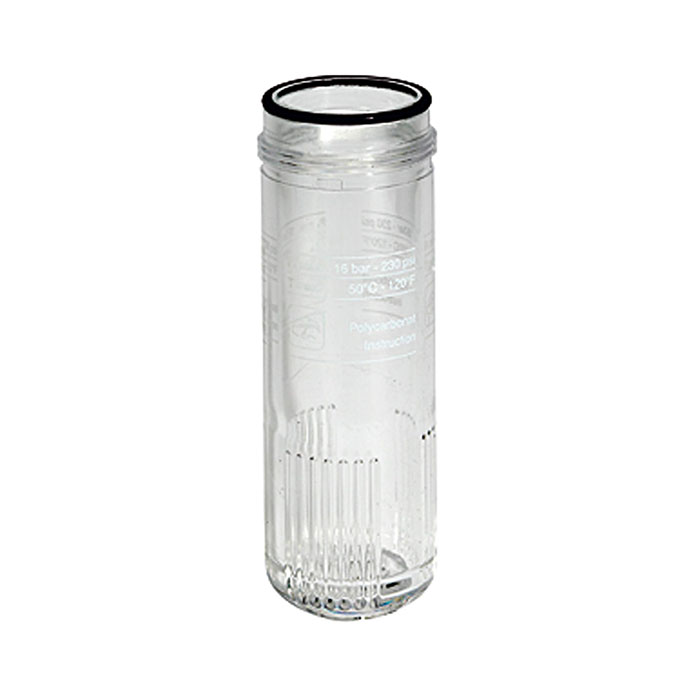

![[100548] RIEGLER Polycarbonate container, incl. O-ring, for »multifix«, Size 3+5](/web/image/product.template/139983/image_128/%5B100548%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2B5?unique=2640589)
|
Type number: KS 33 N |
11.90 € | |
![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=5f6b3f8)
|
Type number: SK 33 |
10.91 € | |
![[101678] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169650/image_128/%5B101678%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=cda21d5)
|
Type number: 207-KD |
6.25 € | |

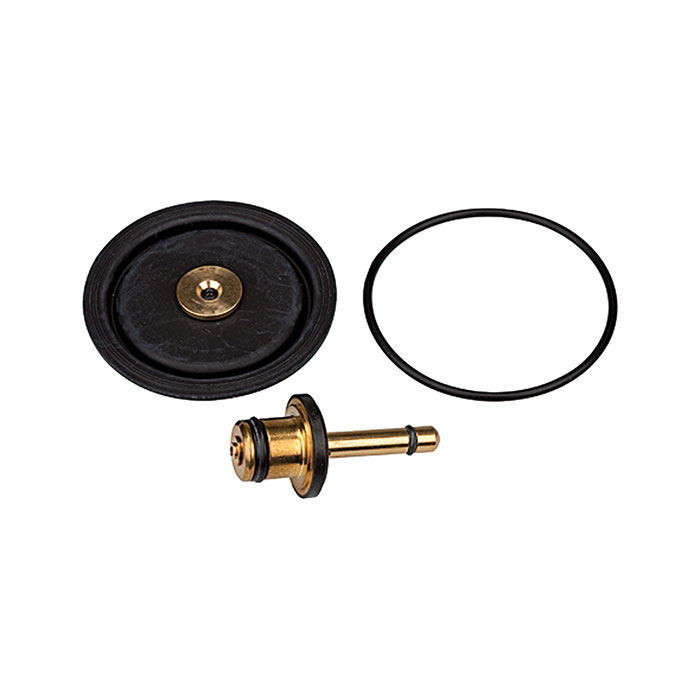

![[100444] RIEGLER Wear part set incl. membrane, Valve cone and O-ring 50x2](/web/image/product.template/139878/image_128/%5B100444%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring%2050x2?unique=265fb6f)
|
