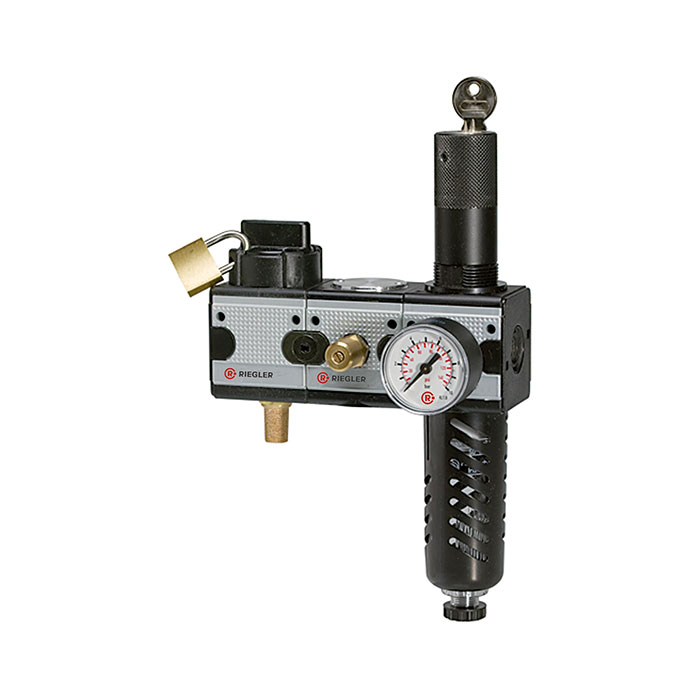

RIEGLER Service station SAFETY »multifix«, Size 1, G 1/4
Type number: WS 2001
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Service station SAFETY »multifix«, Ball valve - start-up valve - filter regulator, Size 1, G 1/4, Input pressure 2 - 16 bar
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Spring cover | POM |
| Thread | G 1/4 |
| Flow rate | 1000 l/min |
| Control range min. | 2 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 1 |
| A | 219.1 mm |
| B | 137.8 mm |
| C | 94 mm |
| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100600] RIEGLER Service station SAFETY »multifix«, Size 3, G 1/2](/web/image/product.template/140035/image_128/%5B100600%5D%20RIEGLER%20Service%20station%20SAFETY%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2?unique=c0edff1)
|
Type number: WS 2002 |
275.08 € | |
![[100601] RIEGLER Service station SAFETY »multifix«, Size 5, G 1](/web/image/product.template/140036/image_128/%5B100601%5D%20RIEGLER%20Service%20station%20SAFETY%20%C2%BBmultifix%C2%AB%2C%20Size%205%2C%20G%201?unique=5ccd22b)
|
Type number: WS 2003 |
614.25 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100290] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/4, AF 15](/web/image/product.template/139725/image_128/%5B100290%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-4%2C%20AF%2015?unique=806b463)
|
Type number: 567-2/M |
3.13 € | |
![[100344] RIEGLER Mounting bracket with nut M30x1.5](/web/image/product.template/139778/image_128/%5B100344%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M30x1.5?unique=50544a9)
|
Type number: MV 30 |
5.11 € | |
![[100345] RIEGLER Control panel nut M30x1.5, for »multifix-mini« and »multifix«](/web/image/product.template/139779/image_128/%5B100345%5D%20RIEGLER%20Control%20panel%20nut%20M30x1.5%2C%20for%20%C2%BBmultifix-mini%C2%AB%20and%20%C2%BBmultifix%C2%AB?unique=f9da608)
|
Type number: R 11-55 |
1.64 € | |
![[100361] RIEGLER Polycarbonate container, incl. O-ring, fully autom. bleeder valve](/web/image/product.template/139795/image_128/%5B100361%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20fully%20autom.%20bleeder%20valve?unique=d7f0770)
|
Type number: KS 11 F-A |
43.65 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=f5c1cf1)
|
Type number: 655.6.900 |
36.96 € | |
![[100435] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 1, G 1/4, G 3/8](/web/image/product.template/139869/image_128/%5B100435%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20G%203-8?unique=8742358)
|
Type number: ZW 11 |
3.63 € | |

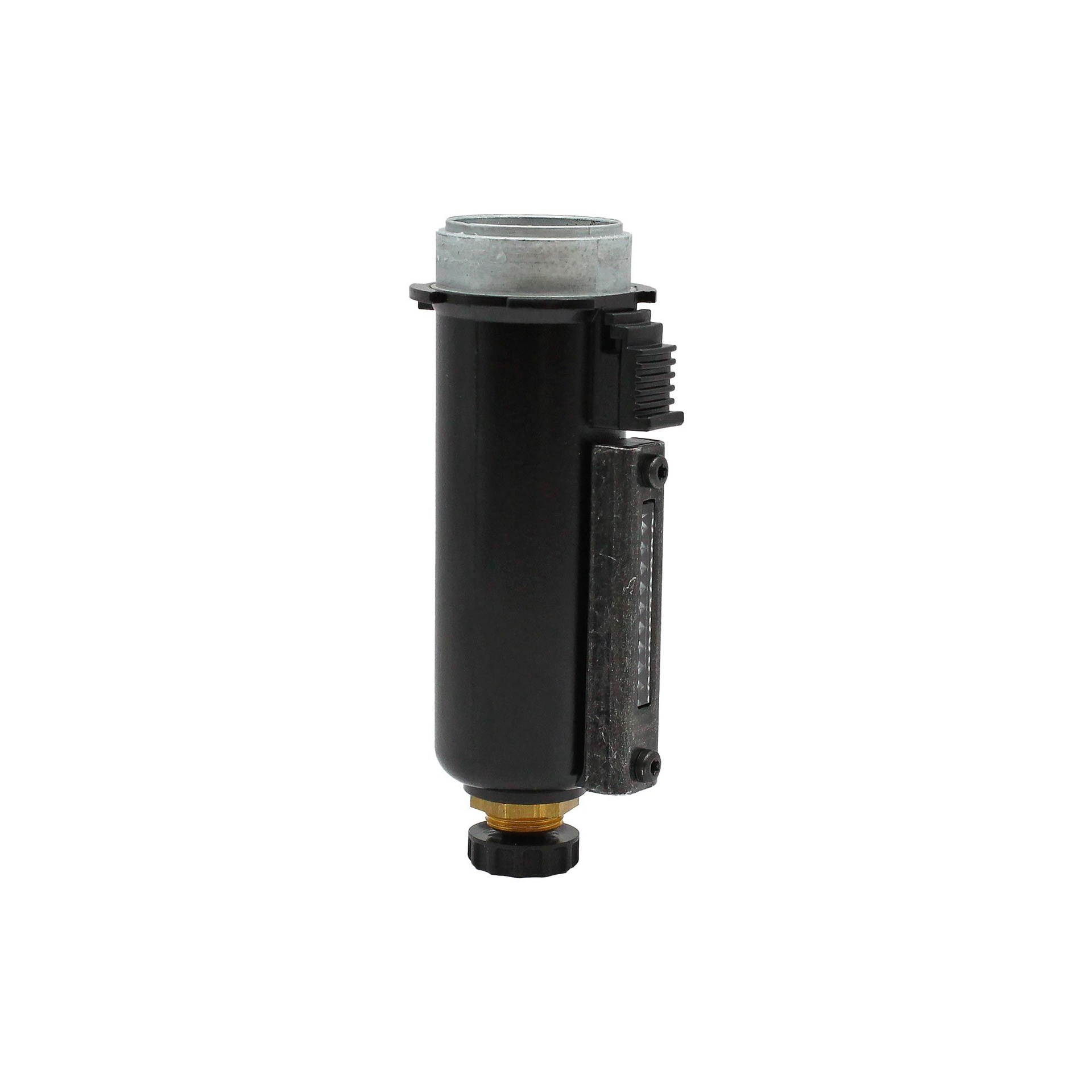

![[100498] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139933/image_128/%5B100498%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=b4aee98)
|
Type number: MS 11 FS |
27.48 € | |

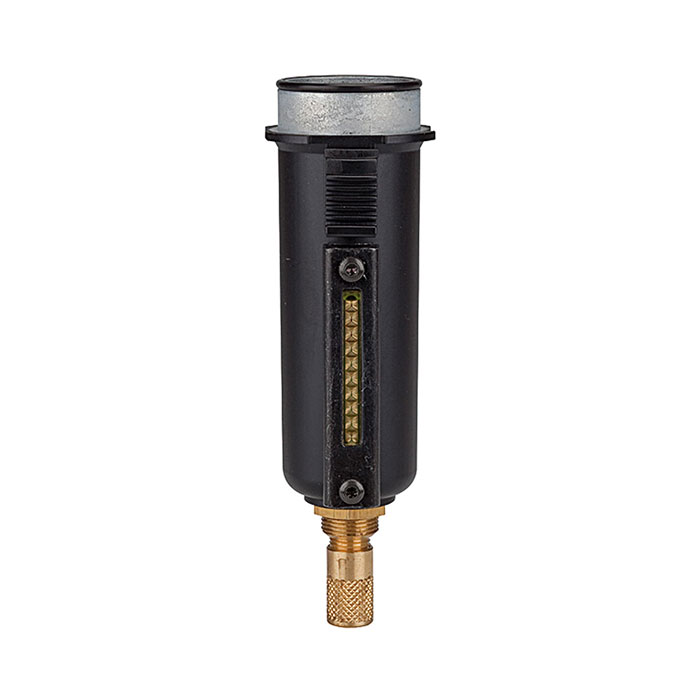

![[100499] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139934/image_128/%5B100499%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=6e2fe67)
|
Type number: MS 11 FS-A |
62.71 € | |
![[125520] RIEGLER Padlock brass 25 mm, shackle Ø 3.5 mm, incl. 3 keys](/web/image/product.template/281048/image_128/%5B125520%5D%20RIEGLER%20Padlock%20brass%2025%20mm%2C%20shackle%20%C3%98%203.5%20mm%2C%20incl.%203%20keys?unique=628c15d)
|
Type number: VS 36 |
5.84 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=5618744)
|
Type number: KP 11 |
2.00 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=a8f92cd)
|
Type number: 611.6.905 |
13.14 € | |

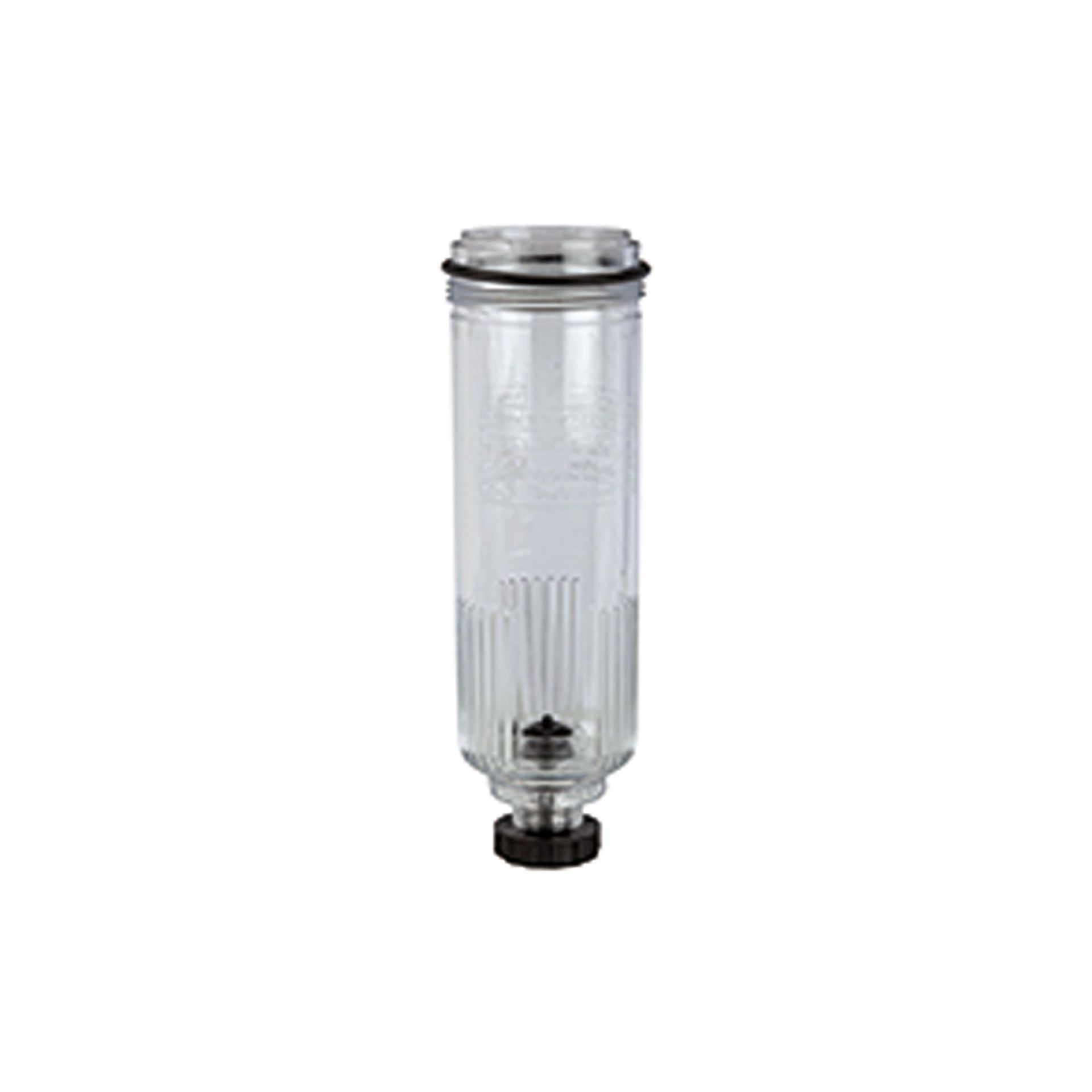

![[100500] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139935/image_128/%5B100500%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=b1bd03b)
|
Type number: KS 11 F-HA |
13.16 € | |
![[100501] RIEGLER Protective cage, for »multifix«, Size 1, G 1/4 and G 3/8](/web/image/product.template/139936/image_128/%5B100501%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=b56f2ad)
|
Type number: SK 11 |
9.51 € | |

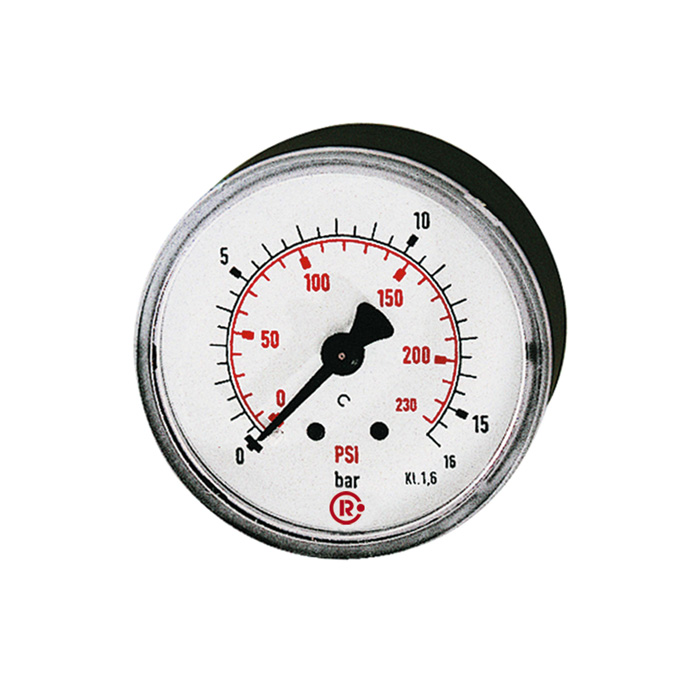

![[116901] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 16.0 bar/230 psi, Ø40](/web/image/product.template/274706/image_128/%5B116901%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%2016.0%20bar-230%20psi%2C%20%C3%9840?unique=df21e59)
|
Type number: 110.04-KD |
5.82 € | |
![[100438] RIEGLER Wear part set incl. membrane, Valve cone and O-ring 30x2](/web/image/product.template/139872/image_128/%5B100438%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring%2030x2?unique=39ea5f5)
|
Type number: 22.1811.4 |
24.66 € | |
