RIEGLER Service station SAFETY »multifix«, Size 3, G 1/2
Type number: WS 2002
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

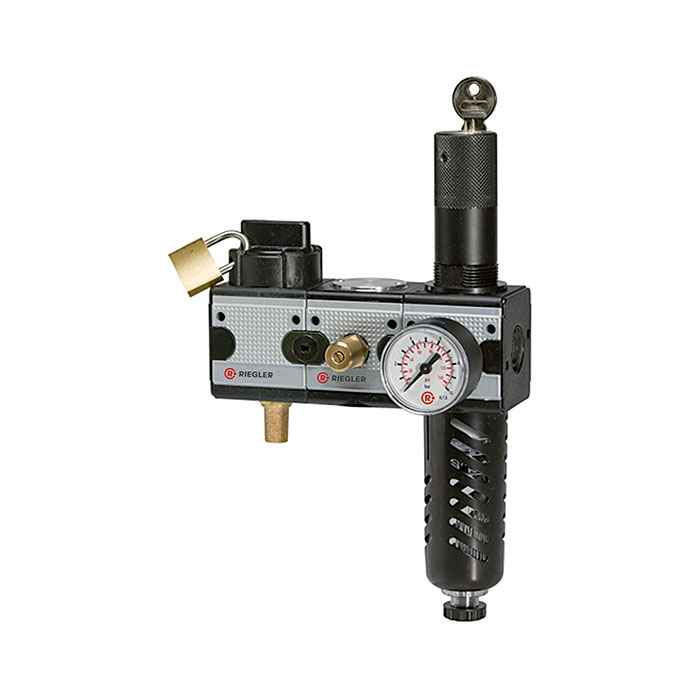

RIEGLER SAFETY "multifix" maintenance station made of die-cast zinc, for compressed air treatment - type WS 2002
The RIEGLER SAFETY "multifix" maintenance station, KH-AV-FR, HA, BG 3, G 1/2 combines a compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc with NBR seals. The control range extends from 2 bar to 10 bar with a maximum inlet pressure of 16 bar. The temperature range is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. Suitable for compressed air. The flow rate is 4000 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Spring cover | POM |
| Thread | G 1/2 |
| Flow rate | 4000 l/min |
| Control range min. | 2 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 3 |
| A | 269.3 mm |
| B | 200.8 mm |
| C | 122 mm |
| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100599] RIEGLER Service station SAFETY »multifix«, Size 1, G 1/4](/web/image/product.template/140034/image_128/%5B100599%5D%20RIEGLER%20Service%20station%20SAFETY%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4?unique=3a7378b)
|
Type number: WS 2001 |
219.21 € | |
![[100601] RIEGLER Service station SAFETY »multifix«, Size 5, G 1](/web/image/product.template/140036/image_128/%5B100601%5D%20RIEGLER%20Service%20station%20SAFETY%20%C2%BBmultifix%C2%AB%2C%20Size%205%2C%20G%201?unique=79ebf45)
|
Type number: WS 2003 |
604.19 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=16b9c4b)
|
Type number: 655.6.900 |
36.35 € | |
![[100439] RIEGLER Mounting bracket with nut M50x1.5, for »multifix«, Size 3](/web/image/product.template/139873/image_128/%5B100439%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M50x1.5%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203?unique=54bd7e9)
|
Type number: MV 50 |
5.20 € | |
![[100440] RIEGLER Control panel nut M50x1.5, for »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139874/image_128/%5B100440%5D%20RIEGLER%20Control%20panel%20nut%20M50x1.5%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=81726a4)
|
Type number: R 33-55 |
1.80 € | |
![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=47ab865)
|
Type number: ZW 33 |
5.00 € | |
![[100502] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139937/image_128/%5B100502%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=5e9d4bc)
|
Type number: MS 33 FS |
34.69 € | |
![[100503] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139938/image_128/%5B100503%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=655c871)
|
Type number: MS 33 FS-A |
74.97 € | |
![[100505] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139940/image_128/%5B100505%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=791c028)
|
Type number: KS 33 F-A |
45.98 € | |

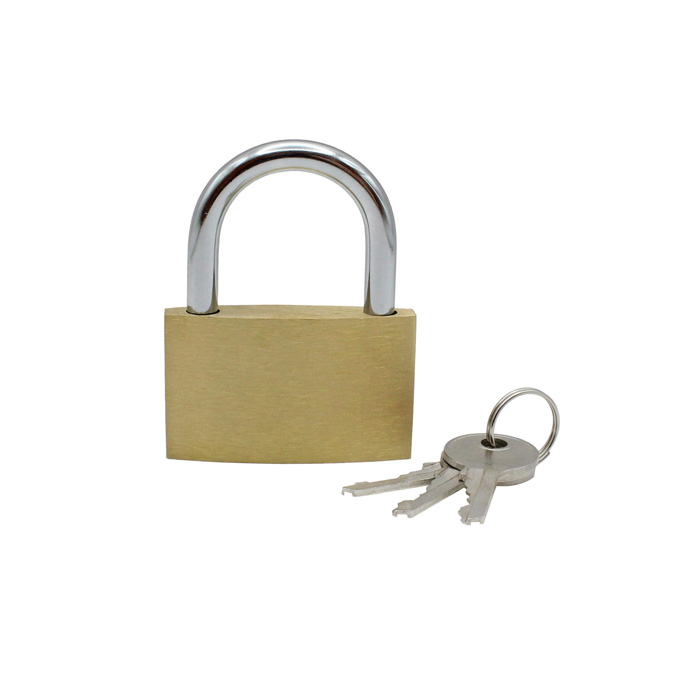

![[125520] RIEGLER Padlock brass 25 mm, shackle Ø 3.5 mm, incl. 3 keys](/web/image/product.template/281048/image_128/%5B125520%5D%20RIEGLER%20Padlock%20brass%2025%20mm%2C%20shackle%20%C3%98%203.5%20mm%2C%20incl.%203%20keys?unique=14bc8f3)
|
Type number: VS 36 |
5.84 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=19ca732)
|
Type number: KP 33 |
2.01 € | |
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=c07d854)
|
Type number: 633.6.905 |
13.89 € | |
![[100504] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139939/image_128/%5B100504%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=24ed19a)
|
Type number: KS 33 F-HA |
14.14 € | |
![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=5f6b3f8)
|
Type number: SK 33 |
10.91 € | |

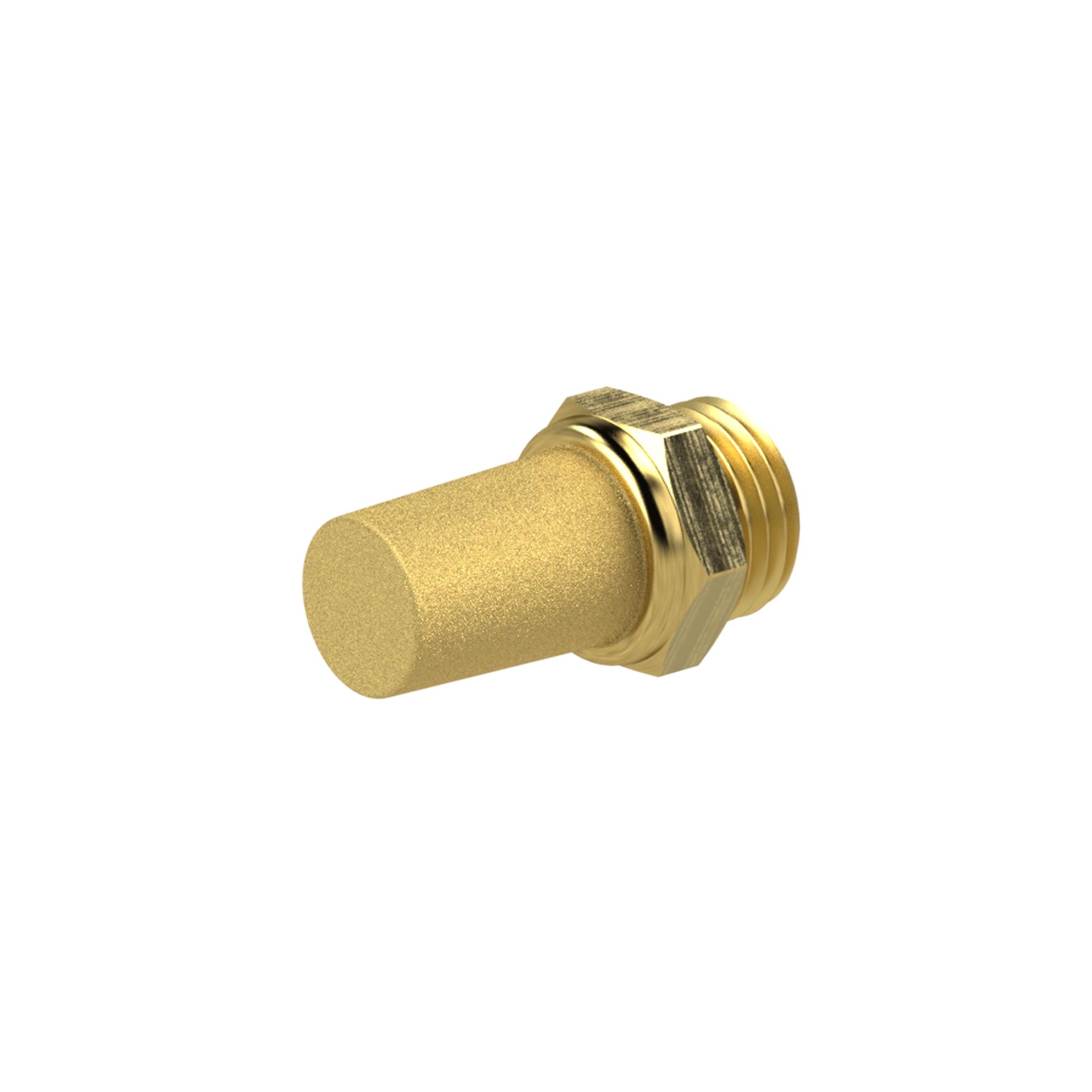

![[100292] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/2, AF 23](/web/image/product.template/139727/image_128/%5B100292%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-2%2C%20AF%2023?unique=146058a)
|
Type number: 567-4/M |
7.01 € | |
![[101678] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169650/image_128/%5B101678%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=cda21d5)
|
Type number: 207-KD |
6.25 € | |

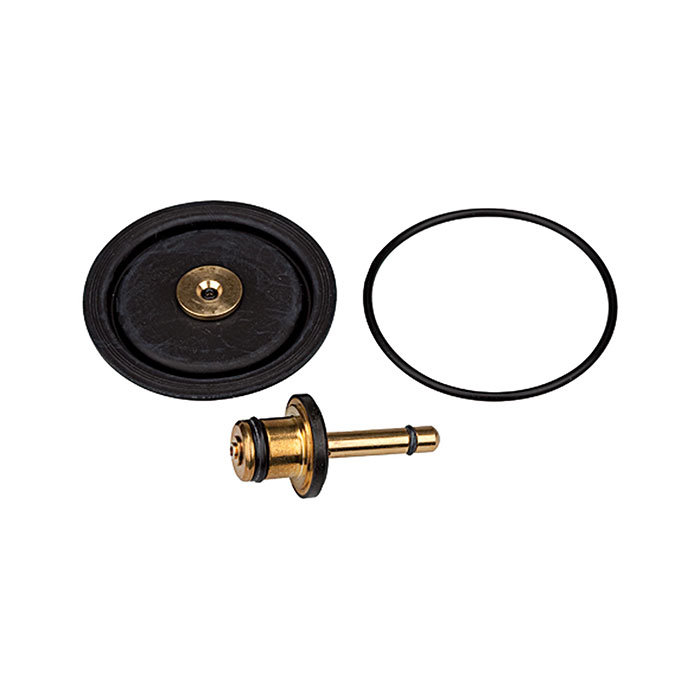

![[100444] RIEGLER Wear part set incl. membrane, Valve cone and O-ring 50x2](/web/image/product.template/139878/image_128/%5B100444%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring%2050x2?unique=265fb6f)
|
