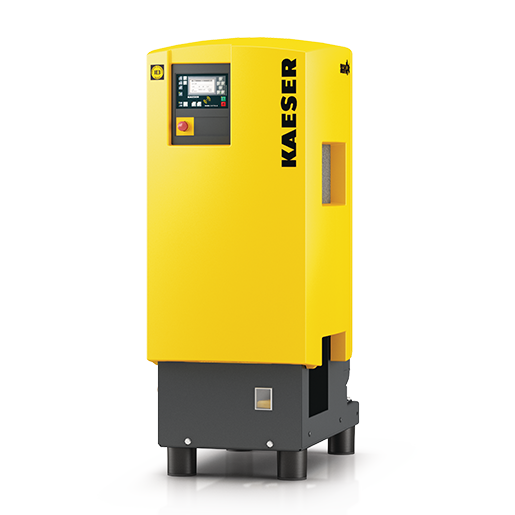

KAESER Screw compressor model SXC 3-8 SC2 OAL incl. Refrigeration dryer and container
Volume flow at overpressure: 0.34 m³/min | Maximum overpressure: 8 bar | Rated power of drive motor: 2.2 KW | Electrical connection: 400 V / 3 Ph / 50 Hz
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
KAESER complete screw compressor systems
SXC - Connect and get started
KAESER's SXC rotary screw compressors stand for maximum efficiency and reliability. These innovative compressor systems combine a rotary screw compressor, refrigeration dryer and air receiver into one ready-to-use unit under a robust, rotationally sintered, double-walled PE hood.
Thanks to their energy efficiency, energy is used optimally, resulting in low operating costs. The ease of maintenance of SXC screw compressors ensures easy maintenance and minimal downtime. High-quality materials and precise workmanship guarantee the longevity of these devices. Ideal for workshops and smaller production facilities, KAESER's SXC screw compressors offer years of reliable and economical operation.
Performance parameters for SXC:
- Pressure: 8 / 11 / 15 bar
- Volume flow range: 0.26 - 2.55 m³/min
- Power range: 2.2 - 5.5 KW
- Space requirement: 0.64 m²
Your advantages:
low space requirement
quick and easy installation
with attached refrigeration dryer
incl. compressed air tank
little space
Made in Germany
| Max. overpressure (bar) | 8 |
| Volume flow at overpressure (m³/min) | 0,34 |
| Rated power drive motor (kW) | 2,2 |
| Drive motor efficiency class | IE3 |
| Permissible pressure loss cooling channel (Pa) | 20 |
| Max. usable warm air volume (m³/h) | 850 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 5 A |
| Fuse: Max current | 10 A |
| Width (mm) | 620 |
| Depth (mm) | 980 |
| Height (mm) | 1480 |
| Weight (kg) | 285 |
| Volume of compressed air tank (litres) | 215 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 68 |
| Refrigeration dryer power consumption (kW) | 0,18 |
| Refrigeration dryer pressure dew point (°C) | 6 |
| Refrigeration dryer pressure loss (bar) | 0,05 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,17 |
| CO2 equivalent (tonnes) | 0,11 |
| Global warming potential GWP | 631 |
| Model range - Screw compressors | SXC |
| Refrigeration dryer option | YES |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

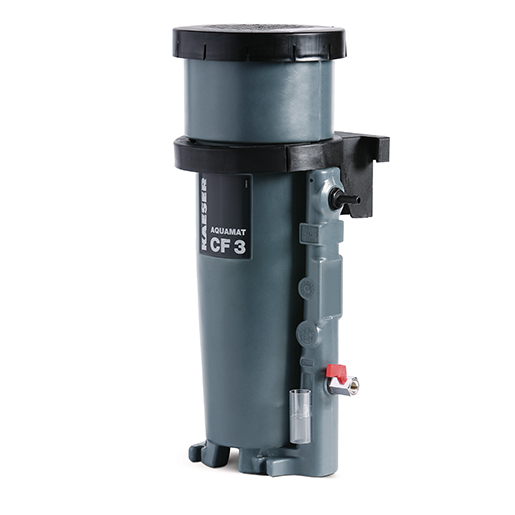

![[5.3390.0] KAESER Oil-water separator model Aquamat CF 3](/web/image/product.template/3688/image_128/%5B5.3390.0%5D%20KAESER%20Oil-water%20separator%20model%20Aquamat%20CF%203%20?unique=b7737c5)
|
