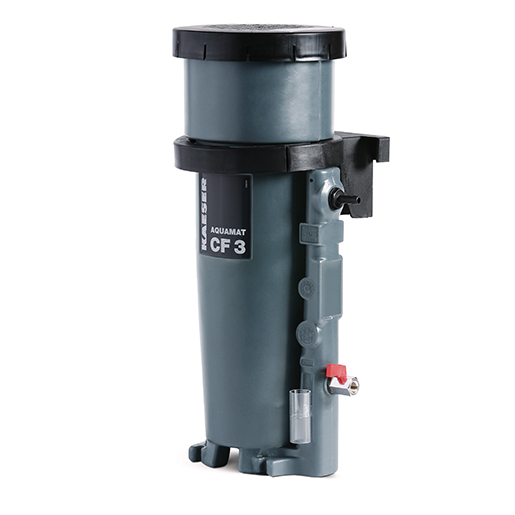

KAESER Oil-water separator model Aquamat CF 3
The KAESER AQUAMAT CF 3 enables legally compliant condensate treatment up to 1.9 m³/min. Save up to 90 % on disposal costs thanks to efficient oil-water separation directly at the point of origin.
- Performance: Max. 1.9 m³/min (climate zone 2).
- Certification: DIBt-tested for legally compliant installation.
- Efficiency: Saves approx. 90 % of disposal costs.
- Technology: High-performance synthetic fiber filter (no activated carbon).
- Maintenance: Simple, clean filter change & visual inspection.
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
KAESER AQUAMAT CF 3: Economical condensate treatment with certificate
Compressed air generation produces considerable quantities of oily condensate. By law, this must not be discharged untreated into the sewage system. With the AQUAMAT CF 3 from the FILCOM online shop, you can easily treat your condensate yourself - directly at the point of origin and without any additional energy consumption.
The Institut für Bautechnik (DIBt) Berlin has tested and certified the function of the AQUAMAT CF series. This means that the system offers maximum legal security and treatment in accordance with the current "state of the art".
Cost savings of up to 90% compared to external disposal
The disposal of untreated raw condensate by specialist companies is time-consuming and expensive. The AQUAMAT CF 3 separates the oil so efficiently that only a small residual quantity (the saturated filters) needs to be disposed of. In climate zone 2, which is relevant for us, you save up to 90 % of your disposal costs and actively protect the environment at the same time.
Your benefits at a glance:
- Certified function: Reliable compliance with the legal limit values for hydrocarbons.
- Long filter service life: The CF models use high-performance synthetic fiber filters (no activated carbon) with a particularly high absorption capacity.
- Easy monitoring: You can easily check the quality of the treated waste water visually with the reference turbidity set supplied.
- Clean filter change: The main filter cartridge can be pulled out with handles and fixed in place for draining - clean and uncomplicated.
- Versatile use: Optimized for common compressor oils such as Kaeser Sigma Fluid S-460, MOL, PAO or VDL oils.
| S-460, MOL, MOH, PAO, VCL (max. Q in | 2,1 |
| S-460, MOL, MOH, PAO, VCL (max. Q in | 1,9 |
| S-460, MOL, MOH, PAO, VCL (max. Q in | 1,6 |
| VDL (max. Q in climate zone 1) ( m³/min) | 1,8 |
| VDL (max. Q in climate zone 2) ( m³/min) | 1,7 |
| VDL (max. Q in climate zone 3) ( m³/min) | 1,5 |
| Volume of compressed air tank (litres) | 10 |
| Filling volume (litres) | 4,3 |
| Pre-filter (l) | 2,5 |
| Main filter (l) | 2,6 |
| Condensate inlet connection | 2x DN 10 |
| Water drain connection | DN 10 |
| Width (mm) | 290 |
| Depth (mm) | 222 |
| Height (mm) | 528 |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[5.3403.0] KAESER maintenance package A for Aquamat CF 3](/web/image/product.template/14203/image_128/%5B5.3403.0%5D%20KAESER%20maintenance%20package%20A%20for%20Aquamat%20CF%203?unique=02cbfb9)
|
The Original KAESER maintenance package A is the complete solution for the professional maintenance of your AQUAMAT CF 3. It contains all the necessary filter stages, including exhaust air filters, to ensure the full separation performance and odor neutrality of your system.
|
148.75 € | |
