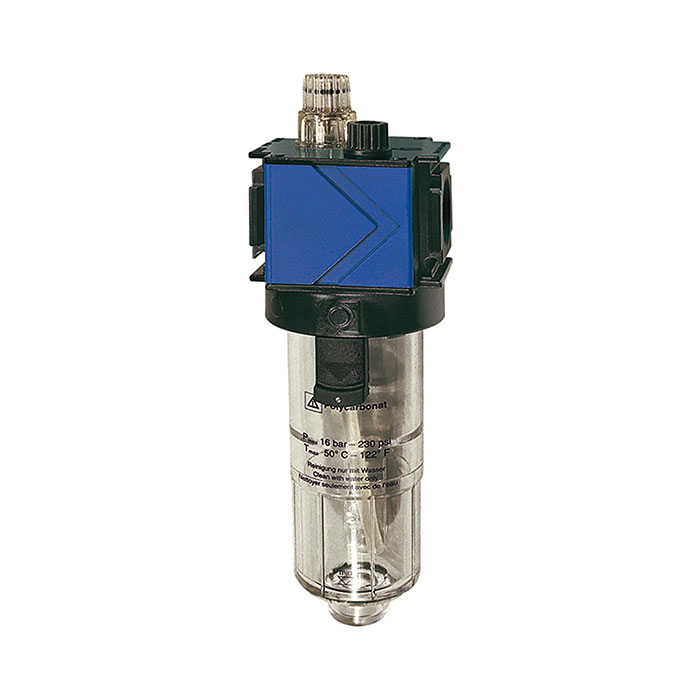

RIEGLER Mist oiler »variobloc« with PC container, Size 2, G 1
Type number: VN 26
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mist oiler »variobloc« with polycarbonate container, Size 2, G 1, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Thread | G 1 |
| Flow rate | 7500 l/min |
| BG | 2 |
| A | 124 mm |
| B | 224 mm |
| C | 57 mm |
| Class name | PLUS |
