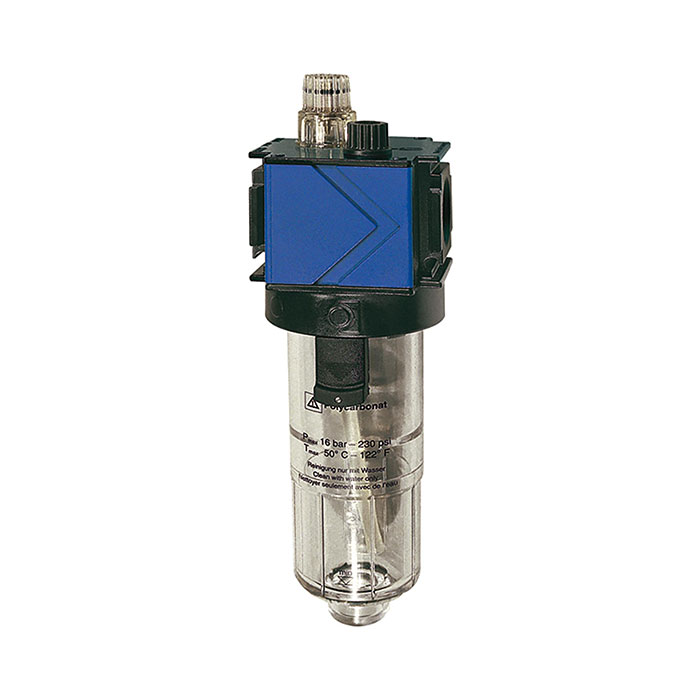

RIEGLER Mist oiler »variobloc« with PC container, Size 1, G 1/4
Type number: VN 22
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mist oiler »variobloc« with polycarbonate container, Size 1, G 1/4, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Thread | G 1/4 |
| Flow rate | 3400 l/min |
| BG | 1 |
| A | 48 mm |
| B | 171 mm |
| C | 52 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100704] RIEGLER Mist oiler »variobloc« with PC container, Size 1, G 3/8](/web/image/product.template/140140/image_128/%5B100704%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=150876c)
|
Type number: VN 23 |
32.26 € | |
![[100707] RIEGLER Mist oiler »variobloc« with PC container, Size 2, G 1](/web/image/product.template/140143/image_128/%5B100707%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%202%2C%20G%201?unique=150876c)
|
Type number: VN 26 |
78.61 € | |
![[100705] RIEGLER Mist oiler »variobloc« with PC container, Size 2, G 1/2](/web/image/product.template/140141/image_128/%5B100705%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%202%2C%20G%201-2?unique=150876c)
|
Type number: VN 24 |
49.31 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

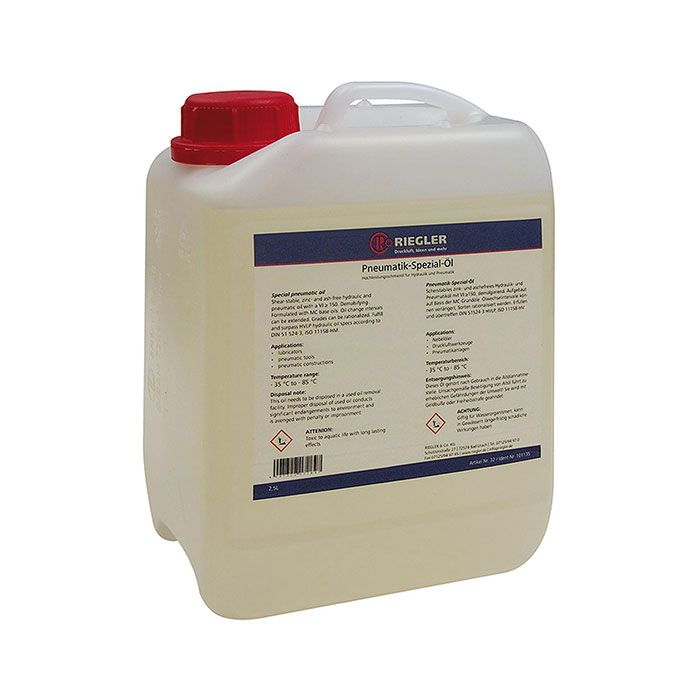

![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=e1bcc29)
|
Type number: 32 |
34.57 € | |
![[100666] RIEGLER Protective cage, for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140101/image_128/%5B100666%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=acd0d82)
|
Type number: VZ 531 |
14.48 € | |

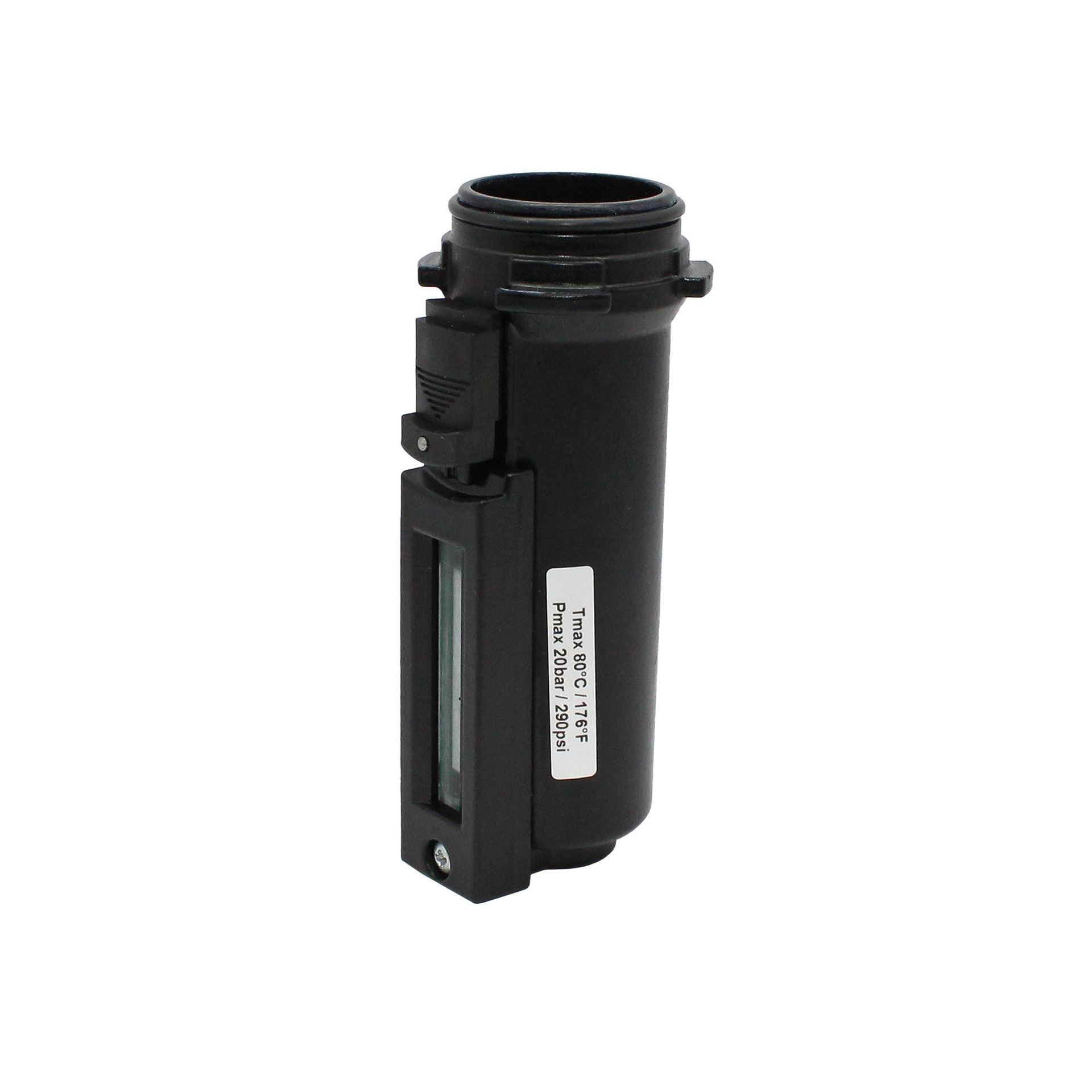

![[100699] RIEGLER Metal container incl. viewing tube](/web/image/product.template/140134/image_128/%5B100699%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube?unique=862ac55)
|
Type number: VZ 651 |
47.16 € | |

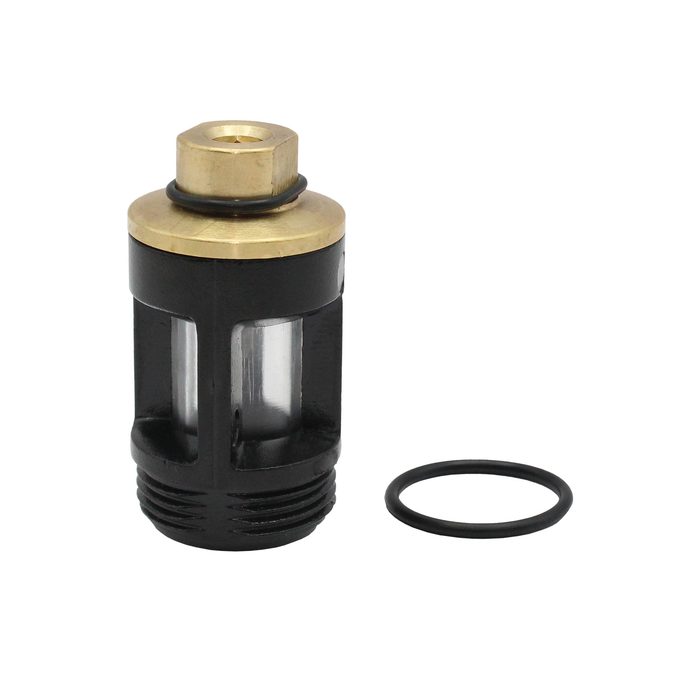

![[100710] RIEGLER Drip cap made of metal, for mist oiler »variobloc«, Size 1](/web/image/product.template/140146/image_128/%5B100710%5D%20RIEGLER%20Drip%20cap%20made%20of%20metal%2C%20for%20mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=a0a8438)
|
Type number: VZ 731 |
25.85 € | |
![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=be031dc)
|
Type number: VZ 718 |
9.32 € | |
![[100750] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140186/image_128/%5B100750%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=c4b4361)
|
Type number: VZ 101 |
9.31 € | |
![[100754] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 1/4](/web/image/product.template/140190/image_128/%5B100754%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=85a0375)
|
Type number: VZ 201 |
9.52 € | |

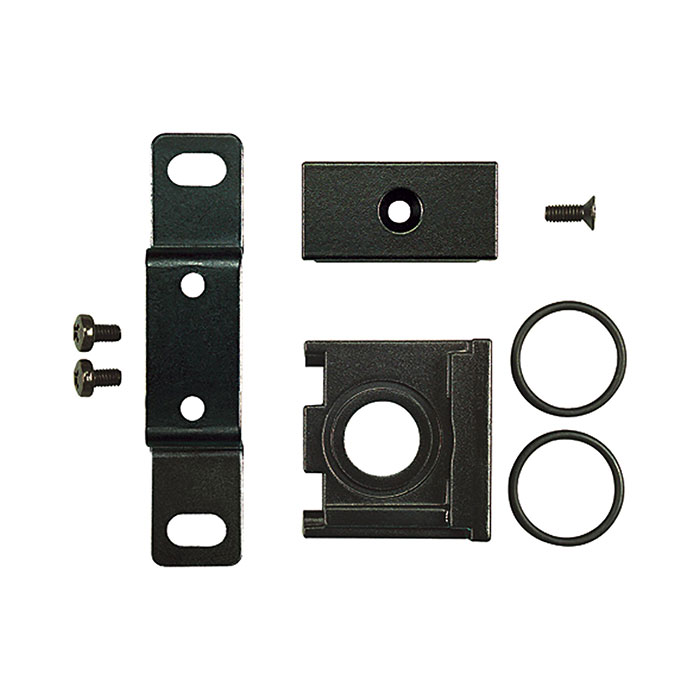

![[100760] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140196/image_128/%5B100760%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=69ca9b0)
|
Type number: VZ 401 |
27.87 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100708] RIEGLER Drip cap made of plastic, for mist oiler »variobloc«, Size 1](/web/image/product.template/140144/image_128/%5B100708%5D%20RIEGLER%20Drip%20cap%20made%20of%20plastic%2C%20for%20mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=153388c)
|
Type number: VZ 721 |
10.01 € | |

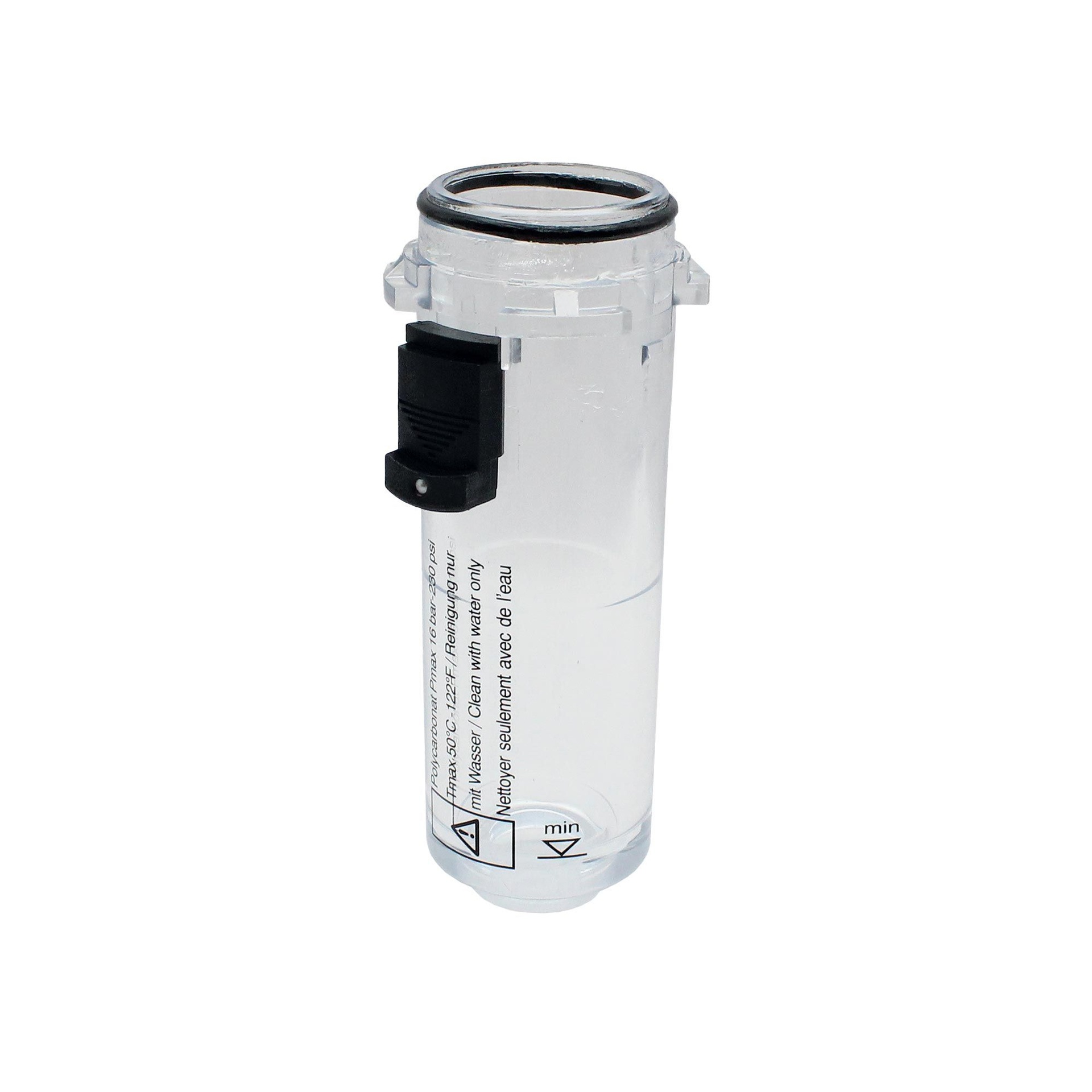

![[100697] RIEGLER Polycarbonate container](/web/image/product.template/140132/image_128/%5B100697%5D%20RIEGLER%20Polycarbonate%20container?unique=50a90a5)
|
Type number: VZ 601 |
33.31 € | |
