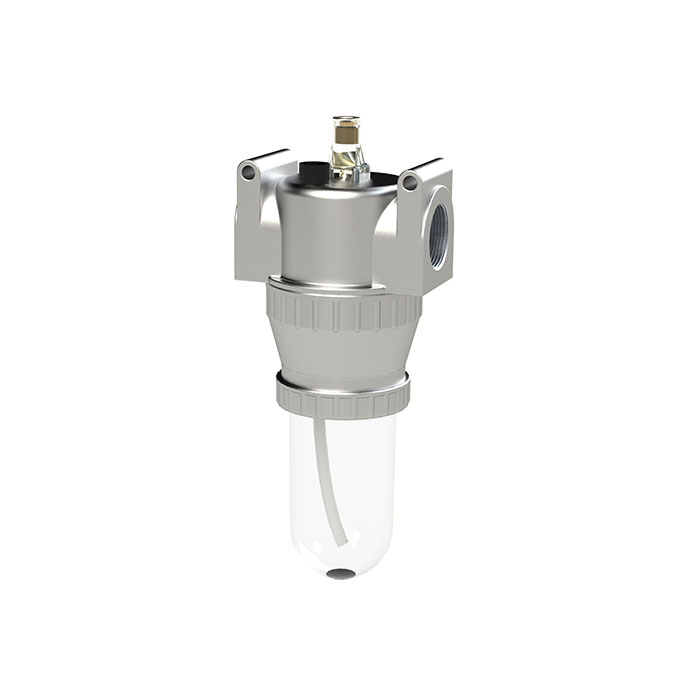

RIEGLER Mist oiler »Standard«, Polycarbonate container, Size 4, G 1 1/4
Type number: 763 K
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mist oiler »Standard« with polycarbonate container, Size 4, G 1 1/4, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 1/4 |
| Flow rate | 9000 l/min |
| DN | 40 |
| BG | 4 |
| A | 137 mm |
| C | 70 mm |
| D | 232 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101021] RIEGLER Mist oiler »Standard«, Polycarbonate container, Size 4, G 1 1/2](/web/image/product.template/140457/image_128/%5B101021%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%20Size%204%2C%20G%201%201-2?unique=fac29f6)
|
Type number: 764 K |
179.67 € | |

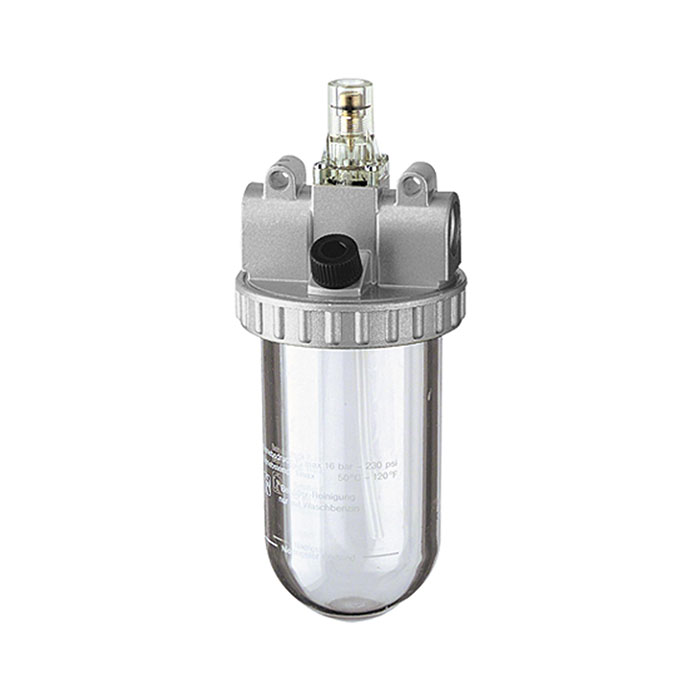

![[101014] RIEGLER Mist oiler »Standard« with polycarbonate container, Size 1, G 1/4](/web/image/product.template/140450/image_128/%5B101014%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20polycarbonate%20container%2C%20Size%201%2C%20G%201-4?unique=97b8bb0)
|
Type number: 745 K |
29.60 € | |
![[101015] RIEGLER Mist oiler »Standard« with polycarbonate container, Size 1, G 3/8](/web/image/product.template/140451/image_128/%5B101015%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20polycarbonate%20container%2C%20Size%201%2C%20G%203-8?unique=2670b65)
|
Type number: 748 K |
29.60 € | |
![[101016] RIEGLER Mist oiler »Standard« with polycarbonate container, Size 2, G 3/8](/web/image/product.template/140452/image_128/%5B101016%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20polycarbonate%20container%2C%20Size%202%2C%20G%203-8?unique=bb052d1)
|
Type number: 750 K |
44.09 € | |
![[101019] RIEGLER Mist oiler »Standard« with polycarbonate container, Size 3, G 1](/web/image/product.template/140455/image_128/%5B101019%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20polycarbonate%20container%2C%20Size%203%2C%20G%201?unique=249b644)
|
Type number: 762 K |
84.29 € | |
![[101017] RIEGLER Mist oiler »Standard« with polycarbonate container, Size 3, G 1/2](/web/image/product.template/140453/image_128/%5B101017%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20polycarbonate%20container%2C%20Size%203%2C%20G%201-2?unique=17d62a2)
|
Type number: 760 K |
47.54 € | |
![[101018] RIEGLER Mist oiler »Standard« with polycarbonate container, Size 3, G 3/4](/web/image/product.template/140454/image_128/%5B101018%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20polycarbonate%20container%2C%20Size%203%2C%20G%203-4?unique=92d3461)
|
Type number: 761 K |
85.12 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=e1bcc29)
|
Type number: 32 |
34.57 € | |
![[100949] RIEGLER Protective cage, for series »Standard«, Size 3, G 1/2](/web/image/product.template/140385/image_128/%5B100949%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=80143f2)
|
Type number: SK 03 |
24.20 € | |

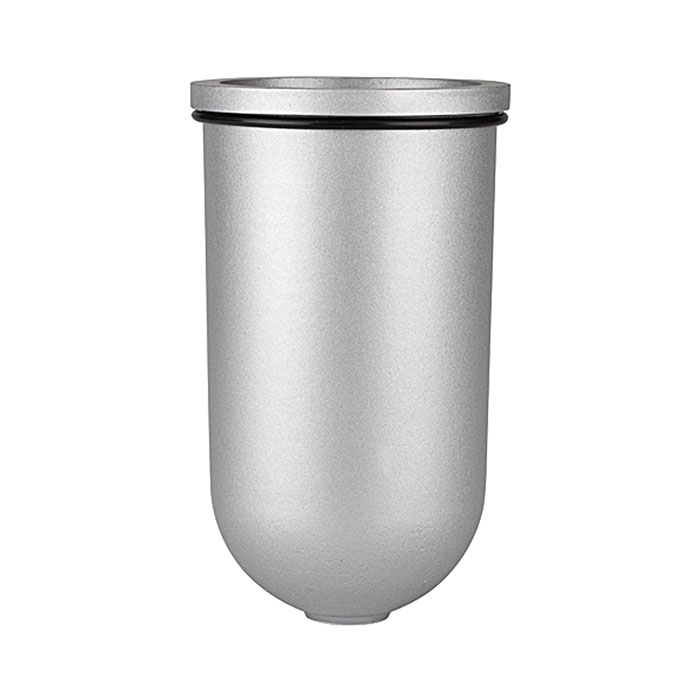

![[101043] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140479/image_128/%5B101043%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=b87ee0c)
|
Type number: 740/14 |
24.20 € | |

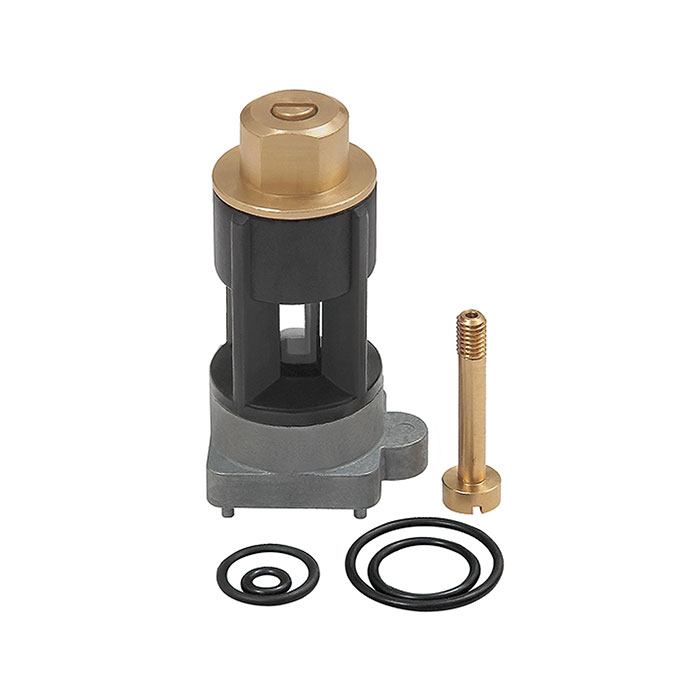

![[101045] RIEGLER Drip cap metal](/web/image/product.template/140481/image_128/%5B101045%5D%20RIEGLER%20Drip%20cap%20metal?unique=ac06ea8)
|
Type number: 760.7.994 |
34.58 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=8e56277)
|
Type number: 760.7.990 |
7.03 € | |

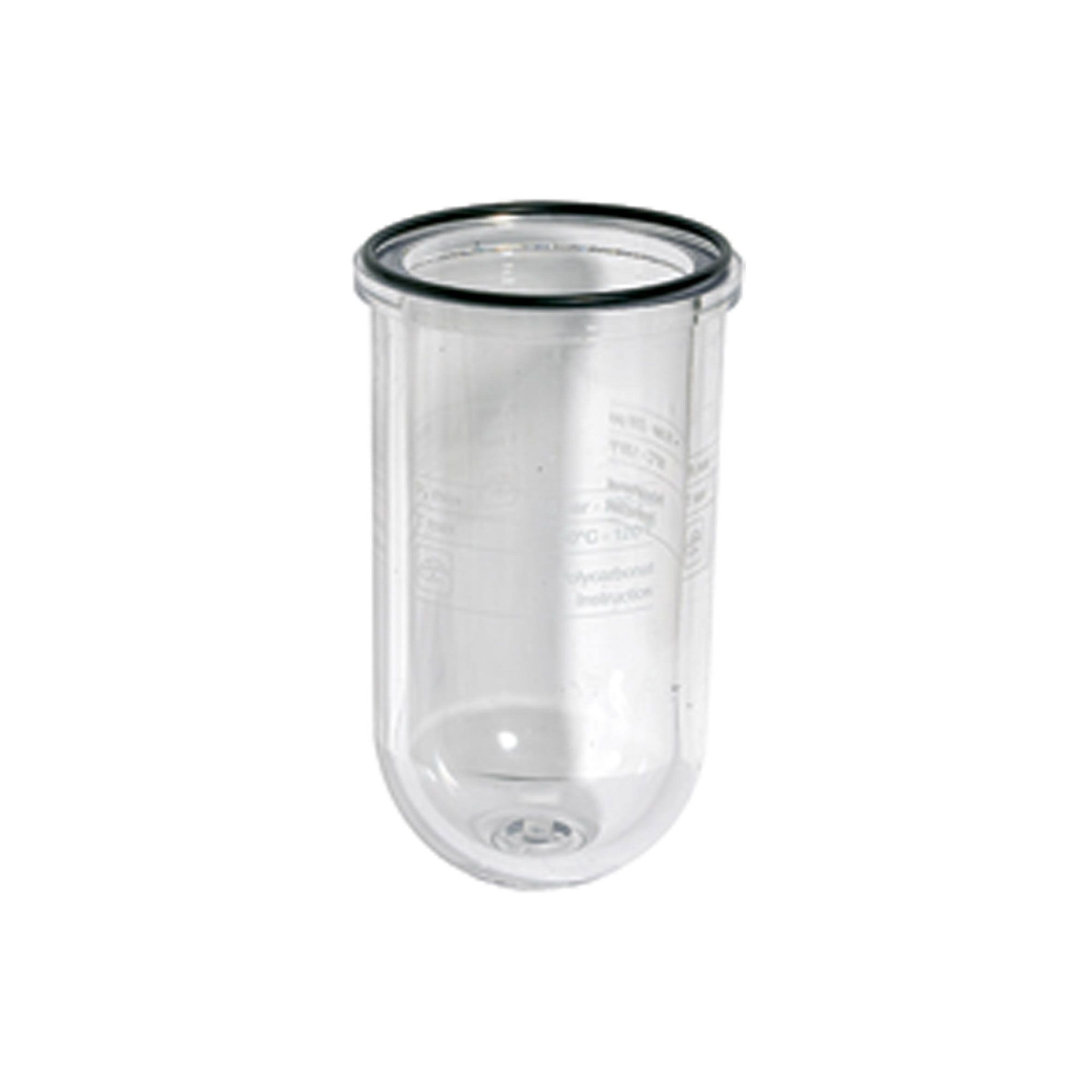

![[101044] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140480/image_128/%5B101044%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=786d1b8)
|
Type number: 740/04 |
14.65 € | |
