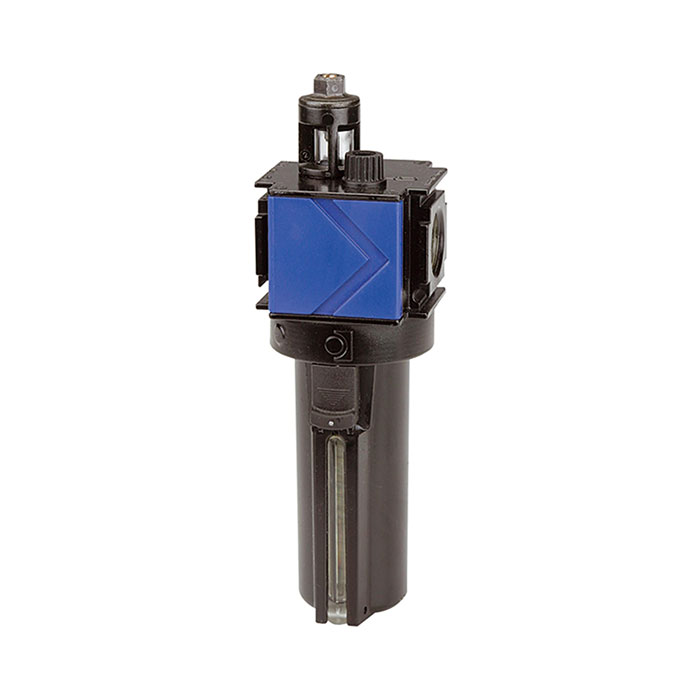

RIEGLER Mist oiler »variobloc« with metal container, Size 1, G 1/4
Type number: VN 22 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mist oiler »variobloc« with metal container incl. viewing tube, Size 1, G 1/4, Input pressure max. 20 bar, Medium temp. max. 80°C
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1/4 |
| Flow rate | 3400 l/min |
| BG | 1 |
| A | 48 mm |
| B | 180 mm |
| C | 60 mm |
| Class name | PLUS |
