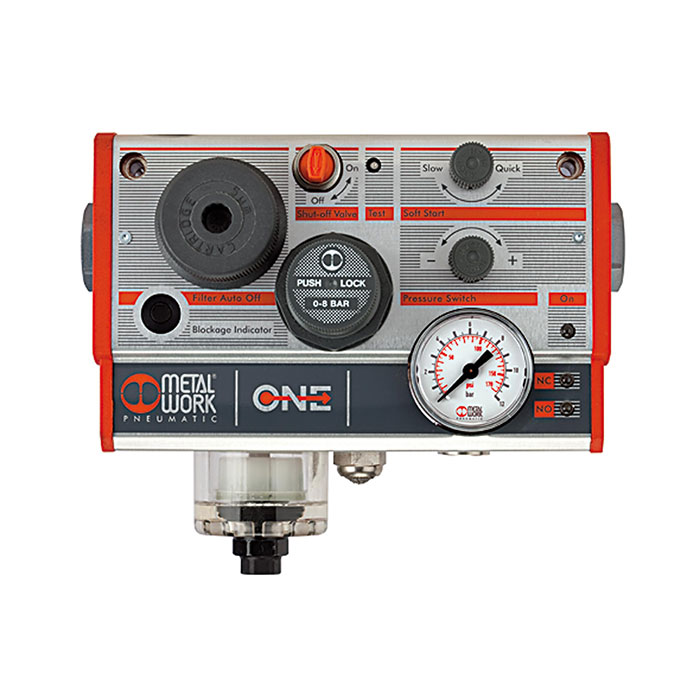

RIEGLER Service unit »ONE« with pressure switch, G 1/2

https://www.filcom-technik.de/web/image/product.template/140563/image_1920?unique=df0f68c

Type number: 533.313

EAN: 4047322284837

340.97 € 340.97 EUR 340.97 € VAT Included

440.81 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

101127

EAN :

4047322284837

Weight :

1.54 kg

"ONE" maintenance unit with pressure switch, G 1/2, max. inlet pressure 10 bar, control range 0.5 - 8 bar, temp. -10 °C to 50 °C

Inlet pressure max. 10 bar
Temperature range min. -10 °C
Temperature range max. 50 °C
Medium Compressed air
Flow rate measurement at P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar
Series ONE
Filter fineness 20 µm
Protection class IP 65
Operating voltage 24 V DC (for valves and pressure switches)
Thread G 1/2
Flow rate 4000 l/min
Control range min. 0.5 bar
Control range max. 8 bar
A 165.5 mm
B 144 mm
C 35 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.0035
Exception 6a
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification C 45 Pb
Class name PLUS
