RIEGLER Service unit »ONE« with pressure switch, G 3/8
Type number: 533.312
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Wartungseinheit »ONE« mit Druckschalter, G 3/8, Eingangsdruck max. 10 bar, Regelbereich 0,5 - 8 bar, Temp. -10 °C bis 50 °C
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air |
| Flow rate measurement | at P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | ONE |
| Filter fineness | 20 µm |
| Protection class | IP 65 |
| Operating voltage | 24 V DC (for valves and pressure switches) |
| Thread | G 3/8 |
| Flow rate | 3300 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| A | 165.5 mm |
| B | 144 mm |
| C | 35 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.0035 |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | C 45 Pb |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

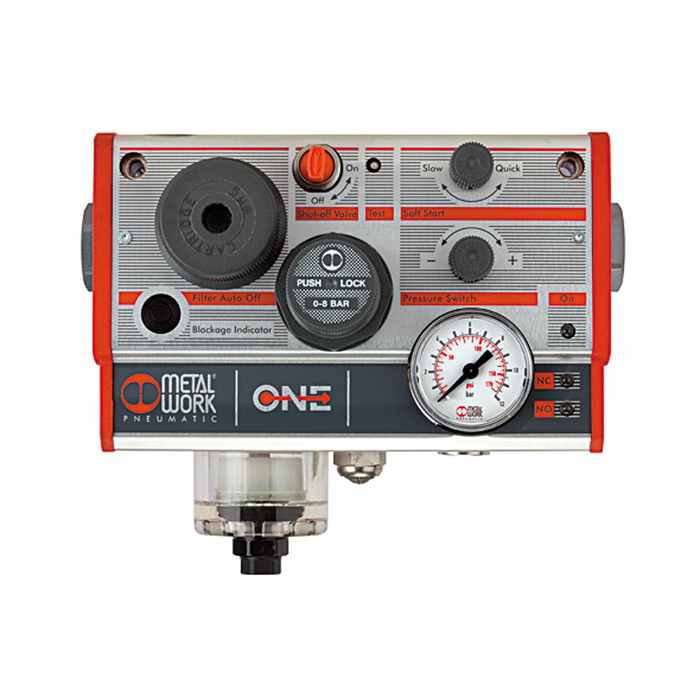

![[101127] RIEGLER Service unit »ONE« with pressure switch, G 1/2](/web/image/product.template/140563/image_128/%5B101127%5D%20RIEGLER%20Service%20unit%20%C2%BBONE%C2%AB%20with%20pressure%20switch%2C%20G%201-2?unique=2460a32)
|
Type number: 533.313 |
382.93 € | |
![[101125] RIEGLER Service unit »ONE« with pressure switch, G 1/4](/web/image/product.template/140561/image_128/%5B101125%5D%20RIEGLER%20Service%20unit%20%C2%BBONE%C2%AB%20with%20pressure%20switch%2C%20G%201-4?unique=b906ed0)
|
Type number: 533.311 |
378.54 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101128] RIEGLER Filter element 5 µm, for service unit »ONE«](/web/image/product.template/140564/image_128/%5B101128%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20for%20service%20unit%20%C2%BBONE%C2%AB?unique=404e822)
|
Type number: 533.905 |
5.91 € | |

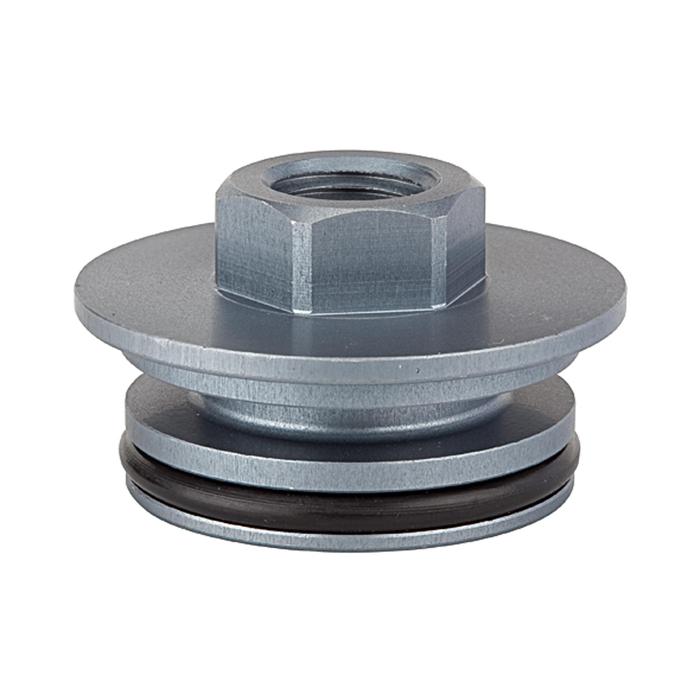

![[101130] RIEGLER Threaded connection G 1/4, for service unit »ONE«](/web/image/product.template/140566/image_128/%5B101130%5D%20RIEGLER%20Threaded%20connection%20G%201-4%2C%20for%20service%20unit%20%C2%BBONE%C2%AB?unique=eafbd40)
|
Type number: 533.1412 |
13.27 € | |

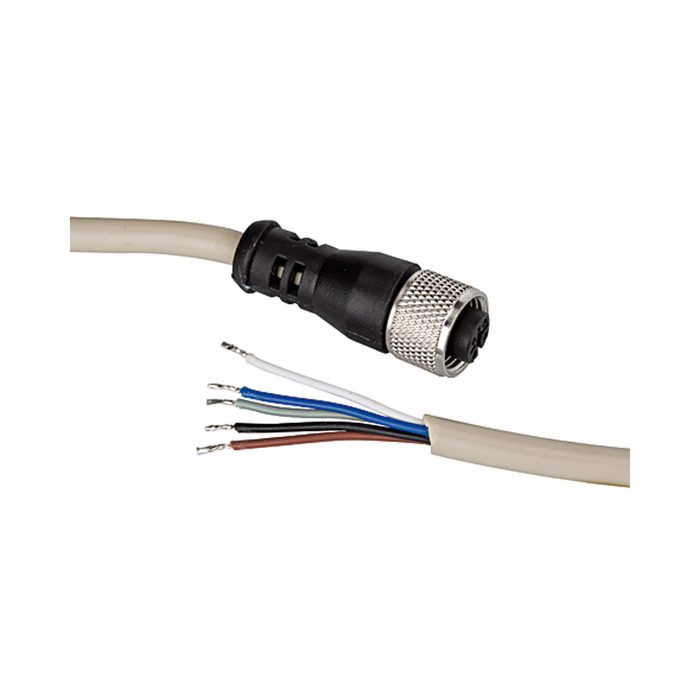

![[101132] RIEGLER Electrical connection cable, straight socket, 5 m cable, 5-wire](/web/image/product.template/140568/image_128/%5B101132%5D%20RIEGLER%20Electrical%20connection%20cable%2C%20straight%20socket%2C%205%20m%20cable%2C%205-wire?unique=4b23c9e)
|
Type number: 533.901 |
18.80 € | |

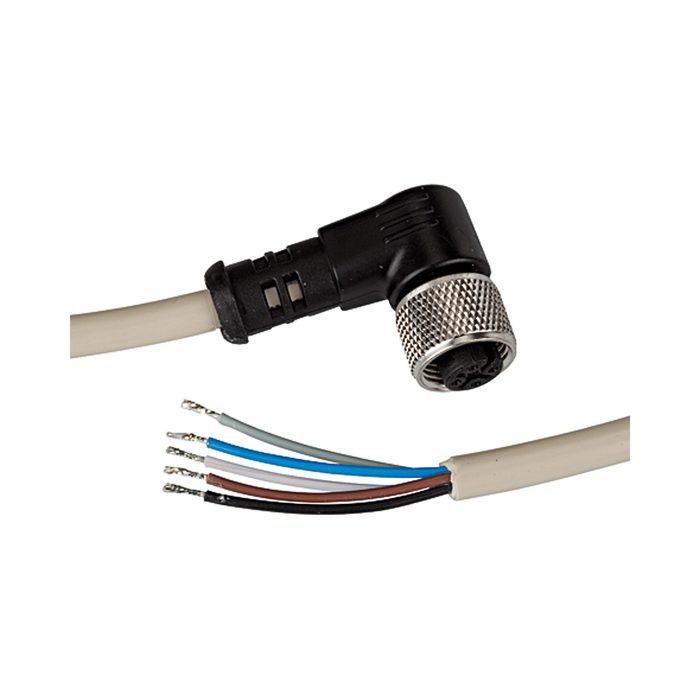

![[101133] RIEGLER Electrical connection cable, 90° angle socket, 5 m cable, 5-wire](/web/image/product.template/140569/image_128/%5B101133%5D%20RIEGLER%20Electrical%20connection%20cable%2C%2090%C2%B0%20angle%20socket%2C%205%20m%20cable%2C%205-wire?unique=6bfd9bb)
|
Type number: 533.902 |
18.80 € | |
![[101134] RIEGLER Mounting bracket incl. 2 screws, for service unit »ONE«](/web/image/product.template/140570/image_128/%5B101134%5D%20RIEGLER%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20service%20unit%20%C2%BBONE%C2%AB?unique=53d413c)
|
Type number: 533.906 |
22.78 € | |

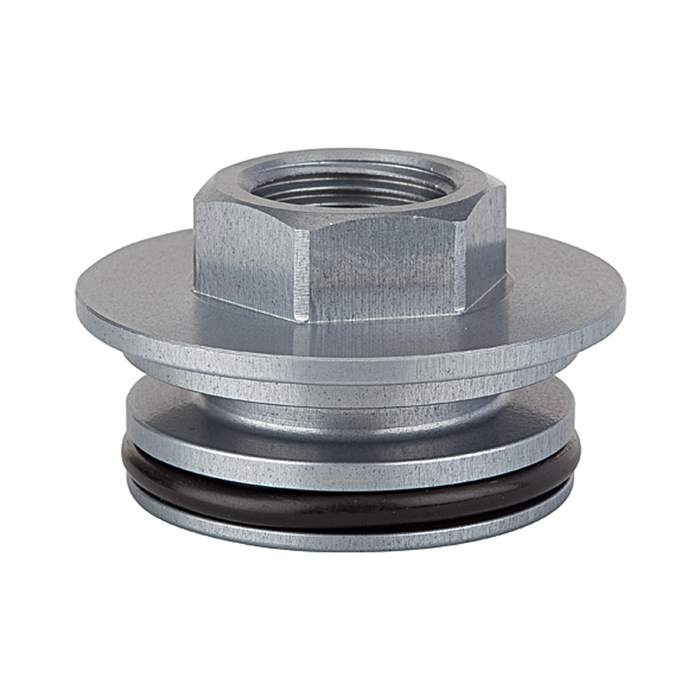

![[144944] RIEGLER Threaded connection G 1/2, for "ONE" maintenance unit](/web/image/product.template/280034/image_128/%5B144944%5D%20RIEGLER%20Threaded%20connection%20G%201-2%2C%20for%20%22ONE%22%20maintenance%20unit?unique=674d993)
|
Type number: 533.1212 |
14.88 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

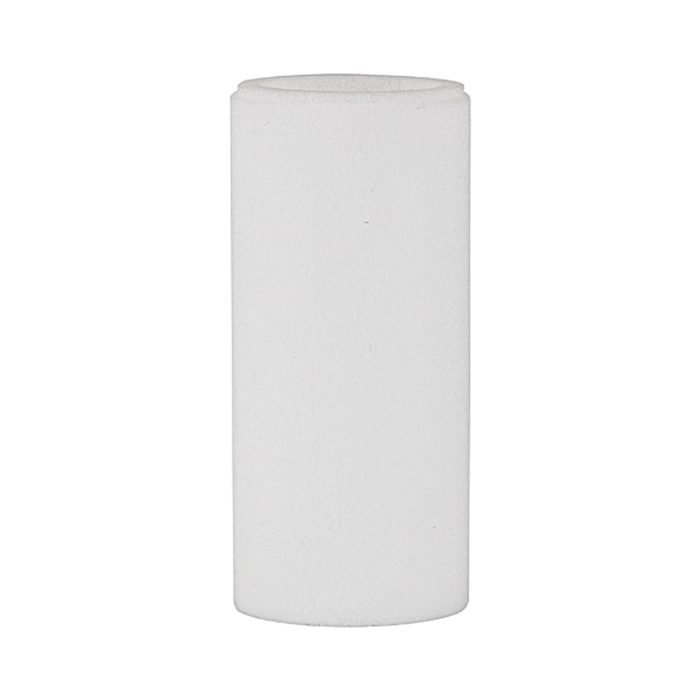

![[101129] RIEGLER Filter element 20 µm, for service unit »ONE«](/web/image/product.template/140565/image_128/%5B101129%5D%20RIEGLER%20Filter%20element%2020%20%C2%B5m%2C%20for%20service%20unit%20%C2%BBONE%C2%AB?unique=5208d79)
|
Type number: 533.900 |
5.91 € | |
![[101131] RIEGLER Threaded connection G 3/8, for service unit »ONE«](/web/image/product.template/140567/image_128/%5B101131%5D%20RIEGLER%20Threaded%20connection%20G%203-8%2C%20for%20service%20unit%20%C2%BBONE%C2%AB?unique=cf28b8e)
|
Type number: 533.3812 |
13.27 € | |
