RIEGLER Stainless steel pressure regulator, 1.4404, G 1/4, 1 - 15 bar
Type number: 570.14 D
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel pressure regulator, 1.4404, with secondary venting (reversible), incl. mano., G 1/4, regul. 1.0 - 15 bar, PE max. 50 bar
| Inlet pressure max. | 50 bar |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Sealing material | FKM |
| Membrane | PTFE on NBR carrier |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1/4 |
| Flow rate | 1300 l/min |
| Control range min. | 1 bar |
| Control range max. | 15 bar |
| A | 64 mm |
| B | 160 mm |
| C | 37 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

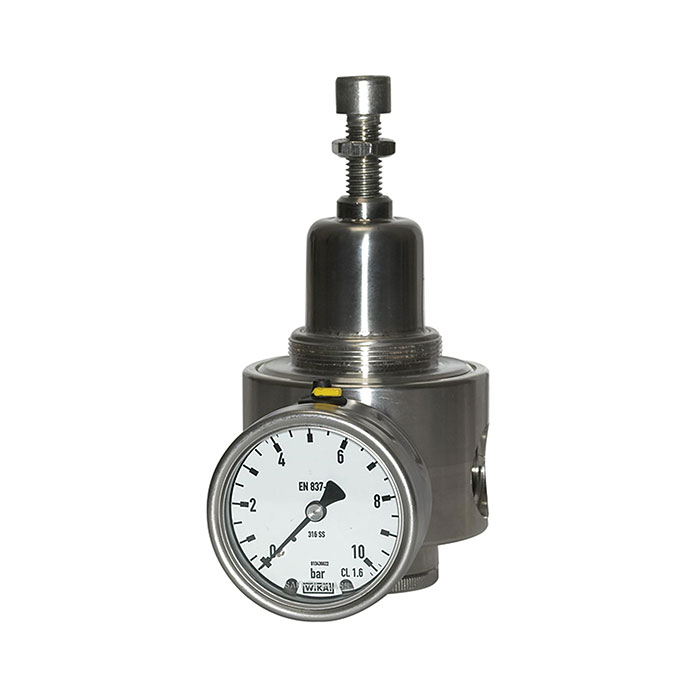

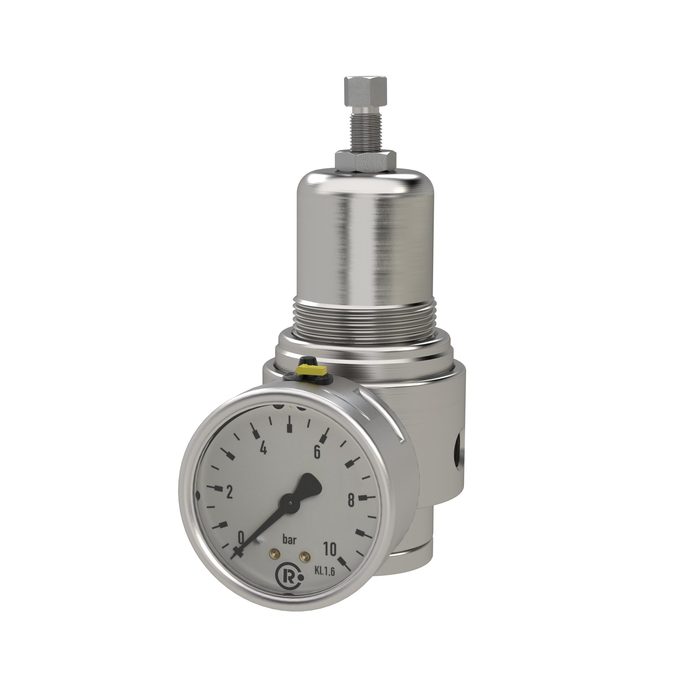

![[101191] RIEGLER Stainless steel pressure regulator, 1.4404, G 1/4, 0.5 - 8 bar](/web/image/product.template/140627/image_128/%5B101191%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20G%201-4%2C%200.5%20-%208%20bar?unique=bcde067)
|
Type number: 570.14 B |
422.22 € | |

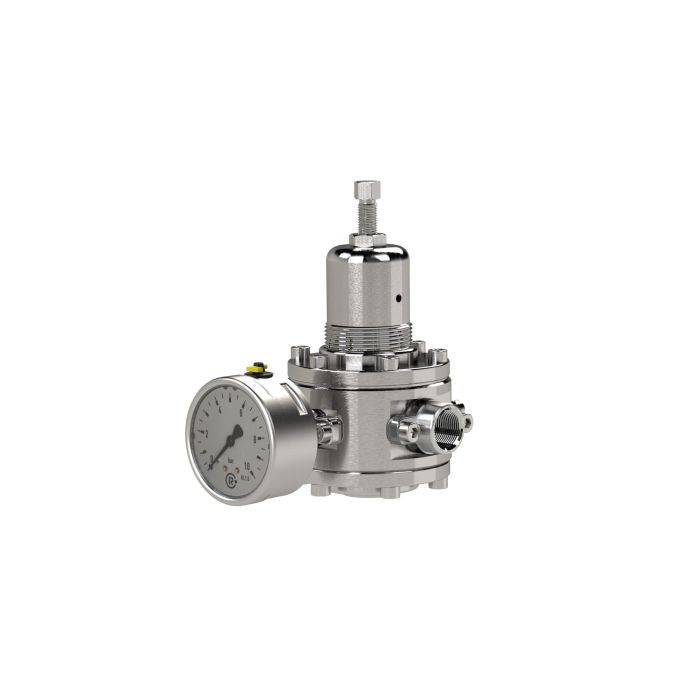

![[129270] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 1/2, 0,5 - 8 bar](/web/image/product.template/264455/image_128/%5B129270%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%201-2%2C%200%2C5%20-%208%20bar?unique=6693d13)
|
Type number: DRES.G12R.05-8B |
751.89 € | |
![[129271] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 1/2, 1,0 - 15 bar](/web/image/product.template/268105/image_128/%5B129271%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%201-2%2C%201%2C0%20-%2015%20bar?unique=6775bba)
|
Type number: DRES.G12R.1-15B |
745.63 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

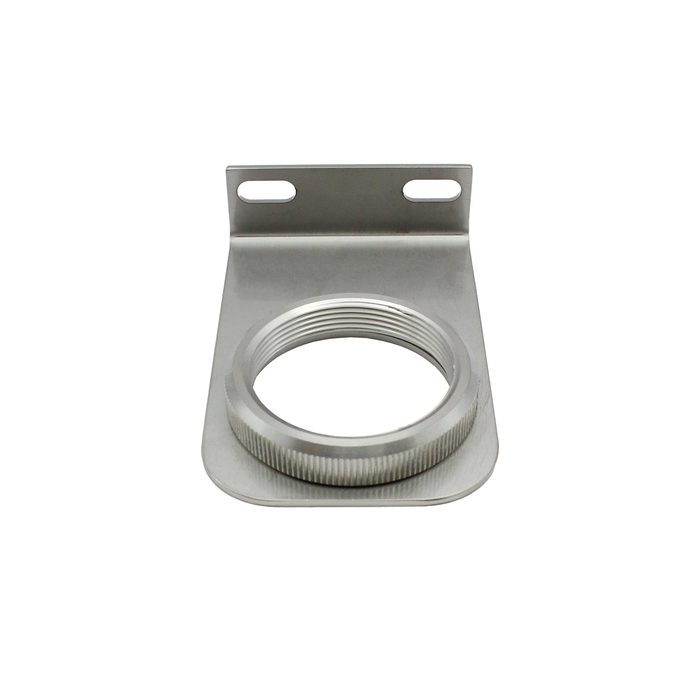

![[101199] RIEGLER Mounting bracket made of stainless steel 1.4401 with nut M45x1.5](/web/image/product.template/140635/image_128/%5B101199%5D%20RIEGLER%20Mounting%20bracket%20made%20of%20stainless%20steel%201.4401%20with%20nut%20M45x1.5?unique=9afcb9b)
|
Type number: 576/1 |
63.65 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

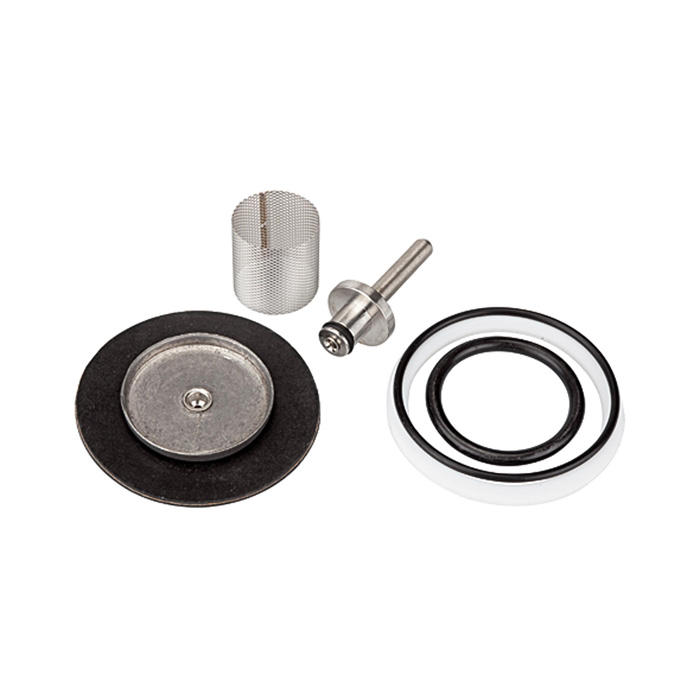

![[194360] RIEGLER Wear parts kit, max. 50 bar, with secondary venting, G 1/4](/web/image/product.template/276017/image_128/%5B194360%5D%20RIEGLER%20Wear%20parts%20kit%2C%20max.%2050%20bar%2C%20with%20secondary%20venting%2C%20G%201-4?unique=3fd3b9f)
|
Typennummer: VTSDR14R50 |
297.06 € | |
