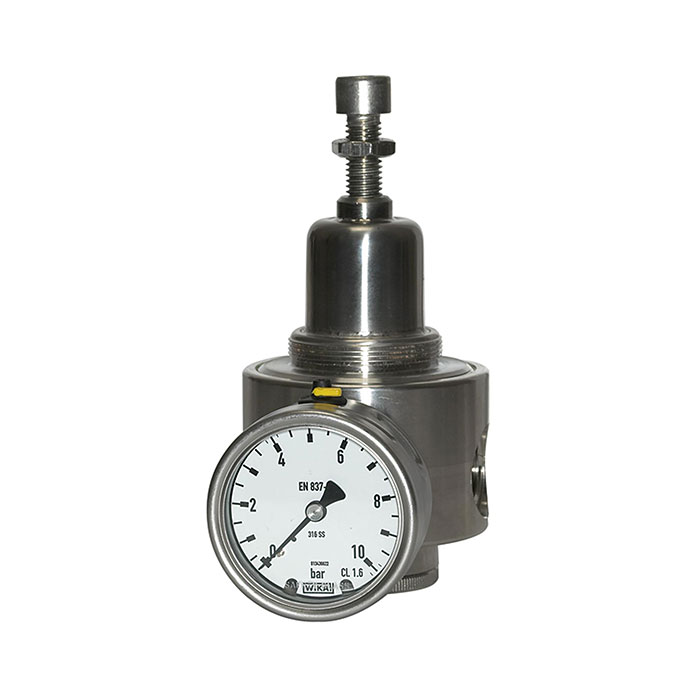

RIEGLER Stainless steel pressure regulator, 1.4404, G 1/4, 0.5 - 8 bar
Type number: 570.14 B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel pressure regulator made of stainless steel 1.4404 (AISI 316L), for compressed air treatment - Type 570.14 B
The RIEGLER stainless steel pressure regulator, 1.4404, reversible, G 1/4, 0.5 - 8 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of stainless steel 1.4404 (AISI 316L) with FKM seals. The control range extends from 0.5 bar to 8 bar with a maximum inlet pressure of 30 bar. The permissible medium temperature is between -20 °C and 80 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 1300 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 30 bar |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Sealing material | FKM |
| Membrane | PTFE on NBR carrier |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1/4 |
| Flow rate | 1300 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| A | 64 mm |
| B | 160 mm |
| C | 37 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101192] RIEGLER Stainless steel pressure regulator, 1.4404, G 1/4, 1 - 15 bar](/web/image/product.template/140628/image_128/%5B101192%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20G%201-4%2C%201%20-%2015%20bar?unique=67c1727)
|
Type number: 570.14 D |
420.12 € | |

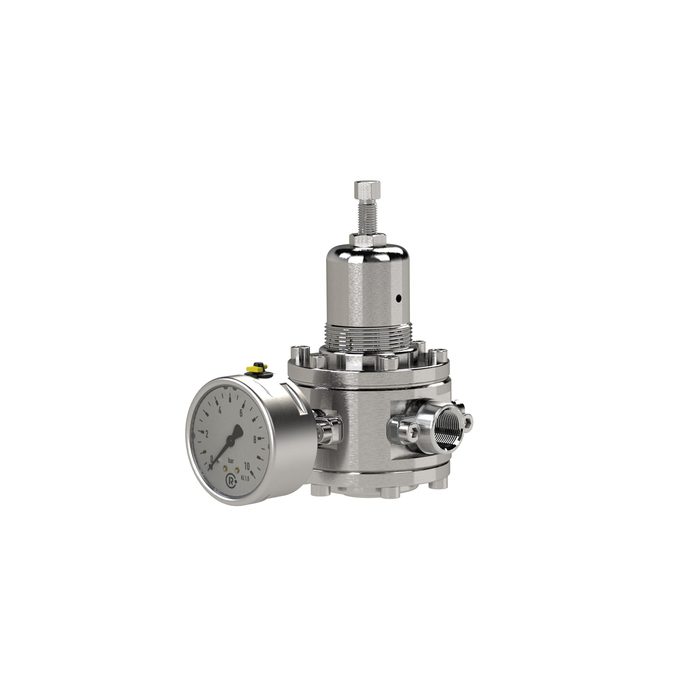

![[129270] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 1/2, 0,5 - 8 bar](/web/image/product.template/264455/image_128/%5B129270%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%201-2%2C%200%2C5%20-%208%20bar?unique=168d647)
|
Type number: DRES.G12R.05-8B |
748.14 € | |
![[129271] RIEGLER Stainless steel pressure regulator, 1.4404, reversible, G 1/2, 1,0 - 15 bar](/web/image/product.template/268105/image_128/%5B129271%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20reversible%2C%20G%201-2%2C%201%2C0%20-%2015%20bar?unique=86d2668)
|
Type number: DRES.G12R.1-15B |
741.93 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101199] RIEGLER Mounting bracket made of stainless steel 1.4401 with nut M45x1.5](/web/image/product.template/140635/image_128/%5B101199%5D%20RIEGLER%20Mounting%20bracket%20made%20of%20stainless%20steel%201.4401%20with%20nut%20M45x1.5?unique=c6f0ed7)
|
Type number: 576/1 |
63.32 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

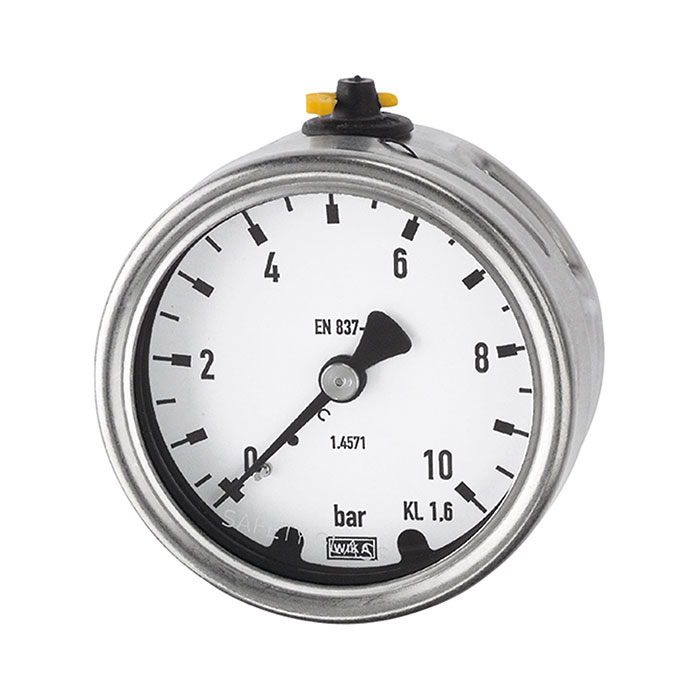

![[101201] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 10 bar, Ø 63](/web/image/product.template/140637/image_128/%5B101201%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar%2C%20%C3%98%2063?unique=3f1facc)
|
Type number: 4084 |
112.13 € | |

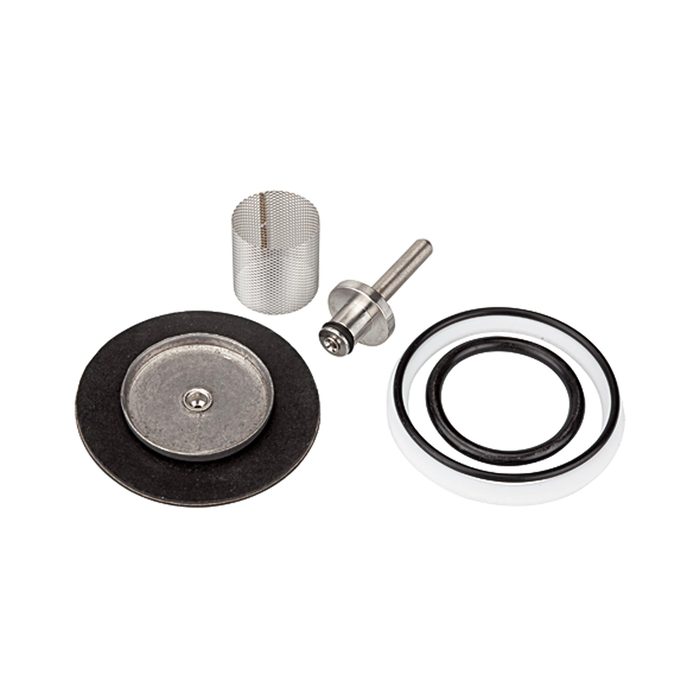

![[101203] RIEGLER Wear part set](/web/image/product.template/140639/image_128/%5B101203%5D%20RIEGLER%20Wear%20part%20set?unique=ca154f9)
|
Type number: 22.5704.4 |
154.47 € | |
