RIEGLER Pressure regulator for water, pressure gauge, R 1/2, 0.2 - 2 bar
Type number: 100.121
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator for water, incl. pressure gauge, R 1/2, control range 0.2 - 2 bar, PE max. 16 bar, inlet pressure min. 1.2 bar
| Inlet pressure max. | 16 bar |
| Housing | Gunmetal (Rg5) |
| Sealing material | NBR-SBR |
| Spring cover | Plastic PA 6 |
| Interior parts | Plastic, brass, stainless steel |
| Minimum pressure drop | 1 bar |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 75 °C |
| Thread | R 1/2 |
| Control range min. | 0.2 bar |
| Control range max. | 2 bar |
| Flow rate kvs-value | 2.9 m³/h |
| DN | 15 |
| A | 137 mm |
| B | 154 mm |
| C | 127 mm |
| D | 27 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Form min. | 1.2 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101335] RIEGLER Pressure regulator for water, pressure gauge, R 1, 0.2 - 2 bar](/web/image/product.template/169309/image_128/%5B101335%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20R%201%2C%200.2%20-%202%20bar?unique=4f1a665)
|
Type number: 100.123 |
302.82 € | |

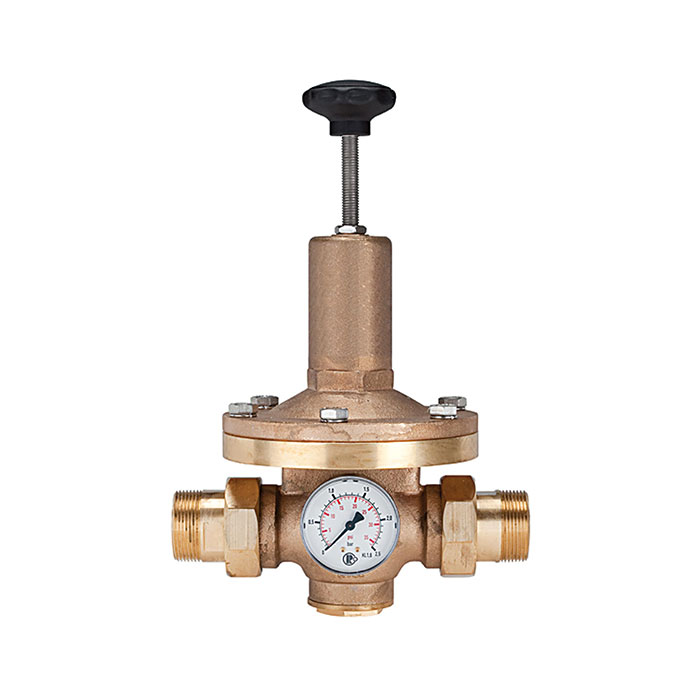

![[101337] RIEGLER Pressure regulator for water, pressure gauge, R 1 1/2, 0.2-2 bar](/web/image/product.template/169311/image_128/%5B101337%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20R%201%201-2%2C%200.2-2%20bar?unique=758d684)
|
Type number: 100.125 |
763.69 € | |
![[101336] RIEGLER Pressure regulator for water, pressure gauge, R 1 1/4, 0.2-2 bar](/web/image/product.template/169310/image_128/%5B101336%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20R%201%201-4%2C%200.2-2%20bar?unique=8f71ac9)
|
Type number: 100.124 |
458.51 € | |
![[101338] RIEGLER Pressure regulator for water, pressure gauge, R 2, 0.2 - 2 bar](/web/image/product.template/169312/image_128/%5B101338%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20R%202%2C%200.2%20-%202%20bar?unique=235305a)
|
Type number: 100.126 |
922.33 € | |
![[101334] RIEGLER Pressure regulator for water, pressure gauge, R 3/4, 0.2 - 2 bar](/web/image/product.template/169308/image_128/%5B101334%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20R%203-4%2C%200.2%20-%202%20bar?unique=ffd7c10)
|
Type number: 100.122 |
267.06 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

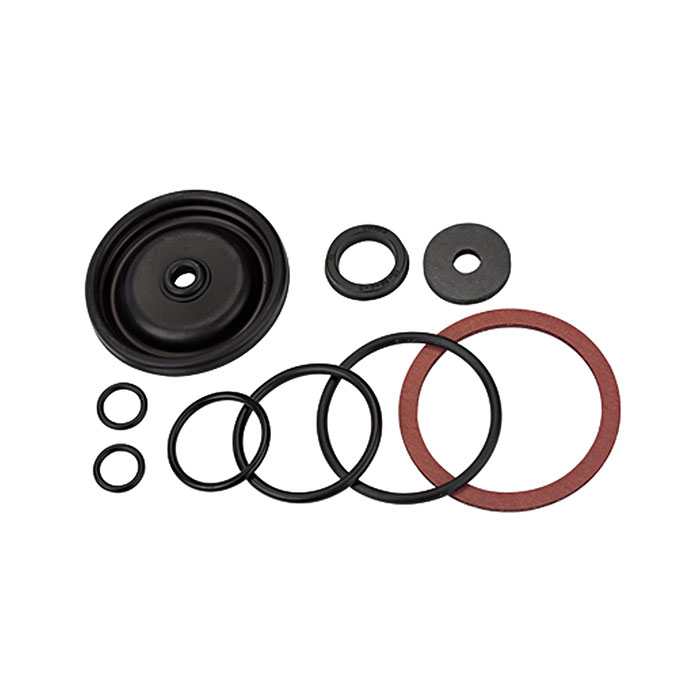

![[101343] RIEGLER Seal set, for pressure regulator for water, R 1/2](/web/image/product.template/169317/image_128/%5B101343%5D%20RIEGLER%20Seal%20set%2C%20for%20pressure%20regulator%20for%20water%2C%20R%201-2?unique=85268ac)
|
Type number: 100.501 |
78.30 € | |
