RIEGLER Pressure regulator for water, pressure gauge, R 3/4, 0.2 - 2 bar
Type number: 100.122
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator for water made of gunmetal (Rg5), 0.2 bar - Type 100.122
The RIEGLER pressure regulator for water, incl. pressure gauge, R 3/4, 0.2 - 2 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of gunmetal (Rg5) with NBR-SBR seals. The control range extends from 0.2 bar to 2 bar with a maximum inlet pressure of 16 bar. The operating temperature is between -15 °C and 75 °C. Connection thread R 3/4 - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Housing | Gunmetal (Rg5) |
| Sealing material | NBR-SBR |
| Spring cover | Plastic PA 6 |
| Interior parts | Plastic, brass, stainless steel |
| Minimum pressure drop | 1 bar |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 75 °C |
| Thread | R 3/4 |
| Control range min. | 0.2 bar |
| Control range max. | 2 bar |
| Flow rate kvs-value | 3.9 m³/h |
| DN | 20 |
| A | 141 mm |
| B | 154 mm |
| C | 127 mm |
| D | 27 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Form min. | 1.2 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

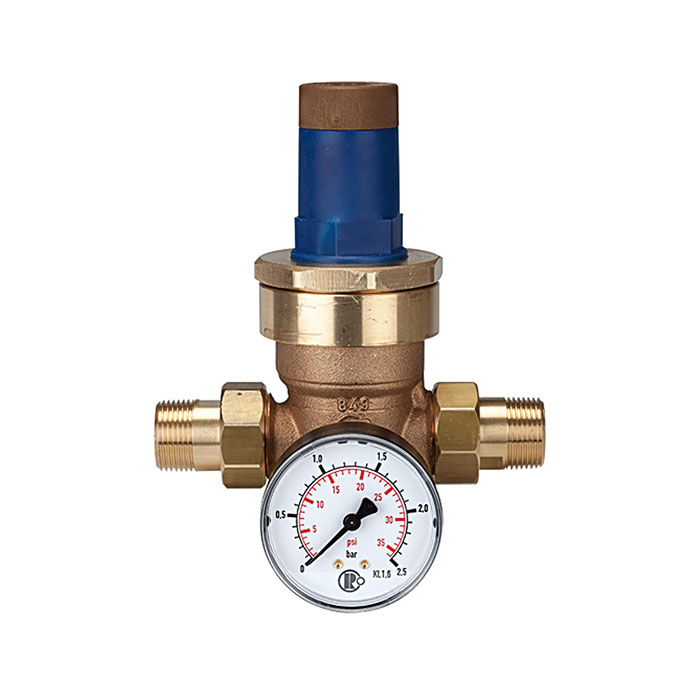

![[101335] RIEGLER Pressure regulator for water, pressure gauge, R 1, 0.2 - 2 bar](/web/image/product.template/169309/image_128/%5B101335%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20R%201%2C%200.2%20-%202%20bar?unique=1236f34)
|
Type number: 100.123 |
302.82 € | |

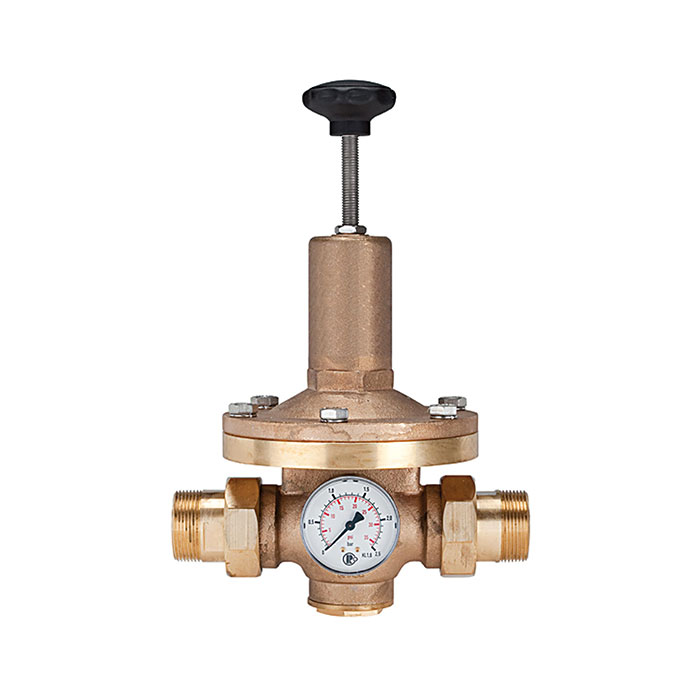

![[101337] RIEGLER Pressure regulator for water, pressure gauge, R 1 1/2, 0.2-2 bar](/web/image/product.template/169311/image_128/%5B101337%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20R%201%201-2%2C%200.2-2%20bar?unique=769ce94)
|
Type number: 100.125 |
763.69 € | |
![[101336] RIEGLER Pressure regulator for water, pressure gauge, R 1 1/4, 0.2-2 bar](/web/image/product.template/169310/image_128/%5B101336%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20R%201%201-4%2C%200.2-2%20bar?unique=9294d9a)
|
Type number: 100.124 |
452.24 € | |
![[101333] RIEGLER Pressure regulator for water, pressure gauge, R 1/2, 0.2 - 2 bar](/web/image/product.template/169307/image_128/%5B101333%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20R%201-2%2C%200.2%20-%202%20bar?unique=a52788b)
|
Type number: 100.121 |
232.38 € | |
![[101338] RIEGLER Pressure regulator for water, pressure gauge, R 2, 0.2 - 2 bar](/web/image/product.template/169312/image_128/%5B101338%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20R%202%2C%200.2%20-%202%20bar?unique=e679aca)
|
Type number: 100.126 |
909.70 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

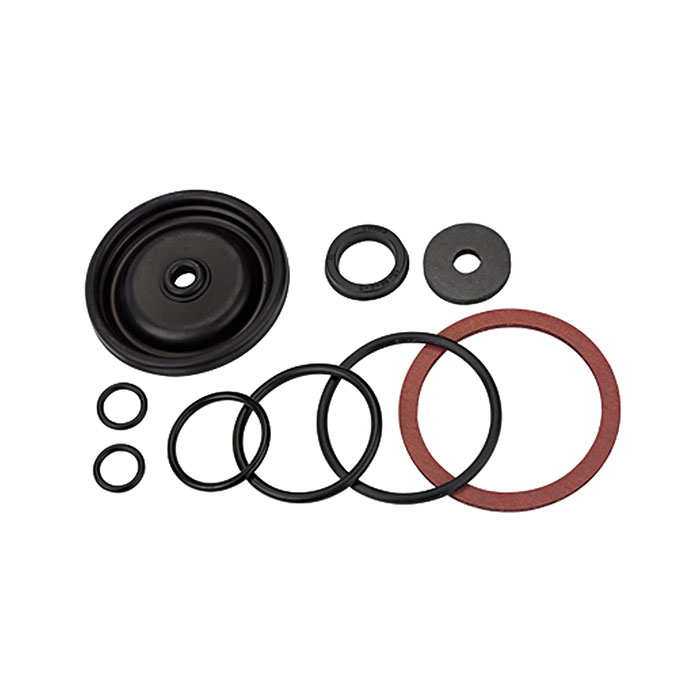

![[101344] RIEGLER Seal set, for pressure regulator for water, R 3/4](/web/image/product.template/169318/image_128/%5B101344%5D%20RIEGLER%20Seal%20set%2C%20for%20pressure%20regulator%20for%20water%2C%20R%203-4?unique=a76b15a)
|
Type number: 100.502 |
78.30 € | |
