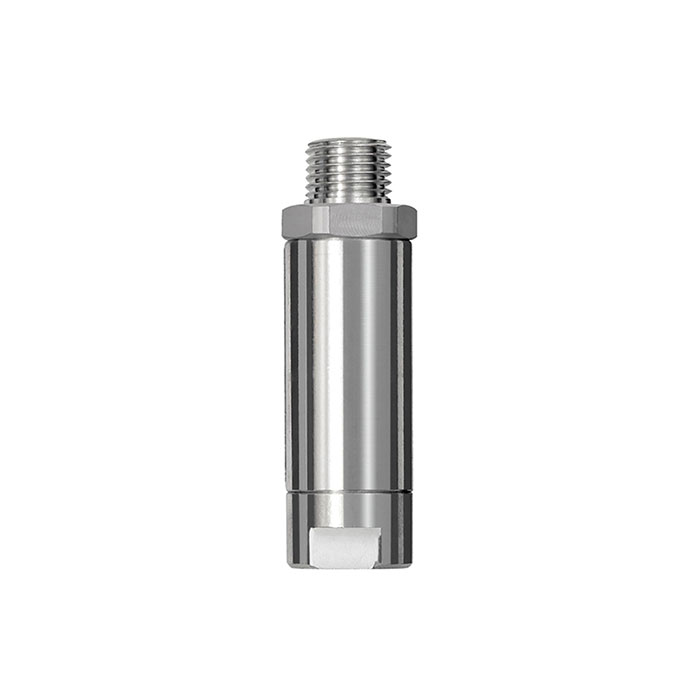

RIEGLER Inline pressure regulator, IT/ET, G 1/4, pre-set 4 bar
Type number: 638.34
EAN: 4047322247269
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Inline pressure regulator, IG/AG, with secondary venting, pressure-dependent, G 1/4, working pressure (preset) 4 bar, PN max. 25 bar
| Temperature range min. | 0 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air, neutral gases |
| Housing | Aluminum |
| Series | inline |
| Max. operating pressure | 25 bar |
| Interior parts | Stainless steel, nitrile rubber, brass |
| Thread | G 1/4 |
| Flow rate | 600 l/min |
| SW 1 | 16 mm |
| SW 2 | 19 mm |
| Working pressure (preset) | 4 bar |
| A | 69 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | Internal/external thread |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | PLUS |
