RIEGLER Inline pressure regulator, IT/ET, G 1/4, pre-set 2 bar
Type number: 638.32
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Inline pressure regulator made of aluminum, for compressed air preparation, max. 25 bar - Type 638.32
The RIEGLER inline pressure regulator, IG/AG, with secondary venting, G 1/4, 2 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of aluminum. Designed for a maximum operating pressure of 25 bar. The temperature range extends between 0 °C and 80 °C. G 1/4 connection thread - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 500 l/min. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Temperature range min. | 0 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air, neutral gases |
| Housing | Aluminum |
| Series | inline |
| Max. operating pressure | 25 bar |
| Interior parts | Stainless steel, nitrile rubber, brass |
| Thread | G 1/4 |
| Flow rate | 500 l/min |

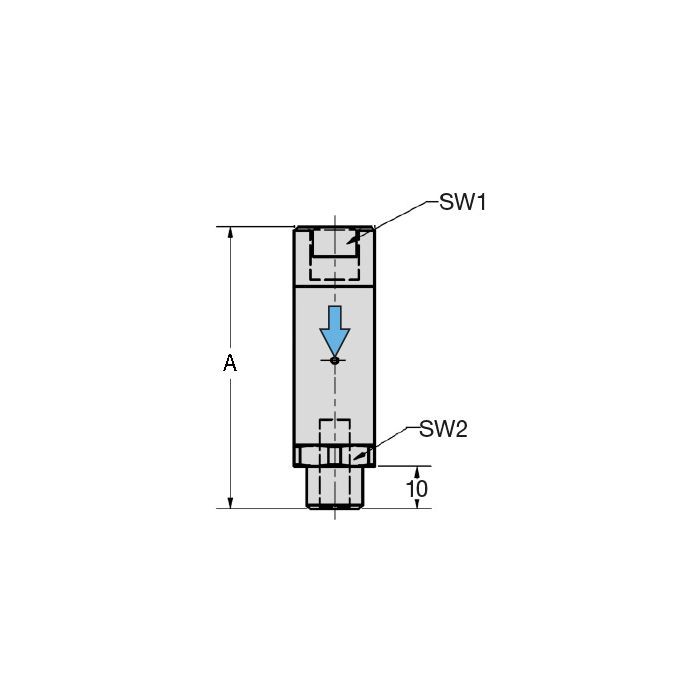

| SW 1 | 16 mm |
| SW 2 | 19 mm |
| Working pressure (preset) | 2 bar |
| A | 69 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | Internal/external thread |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101489] RIEGLER Inline pressure regulator, IT/ET, G 1/4, pre-set 3 bar](/web/image/product.template/169463/image_128/%5B101489%5D%20RIEGLER%20Inline%20pressure%20regulator%2C%20IT-ET%2C%20G%201-4%2C%20pre-set%203%20bar?unique=9497644)
|
Type number: 638.33 |
48.54 € | |
![[101490] RIEGLER Inline pressure regulator, IT/ET, G 1/4, pre-set 4 bar](/web/image/product.template/169464/image_128/%5B101490%5D%20RIEGLER%20Inline%20pressure%20regulator%2C%20IT-ET%2C%20G%201-4%2C%20pre-set%204%20bar?unique=e02f08e)
|
Type number: 638.34 |
48.54 € | |

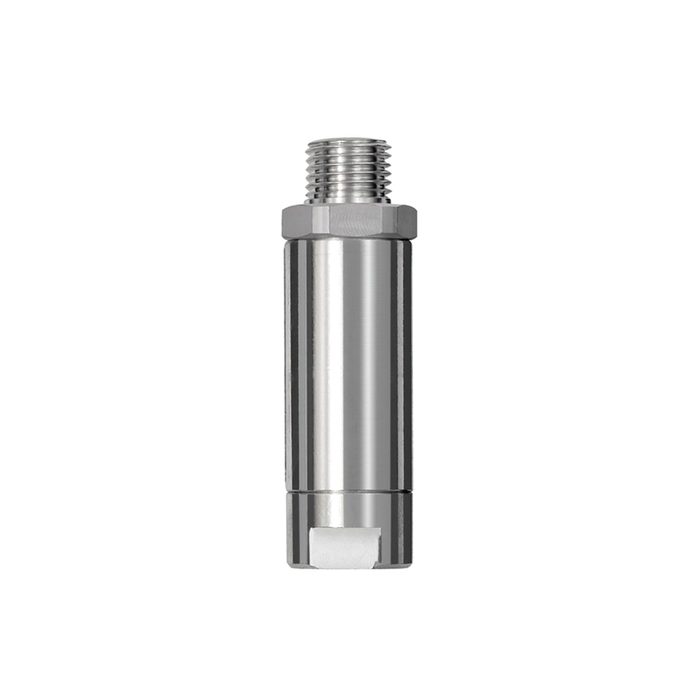

![[101491] RIEGLER Inline pressure regulator, IT/ET, G 1/4, pre-set 5 bar](/web/image/product.template/169465/image_128/%5B101491%5D%20RIEGLER%20Inline%20pressure%20regulator%2C%20IT-ET%2C%20G%201-4%2C%20pre-set%205%20bar?unique=ae2e9c4)
|
