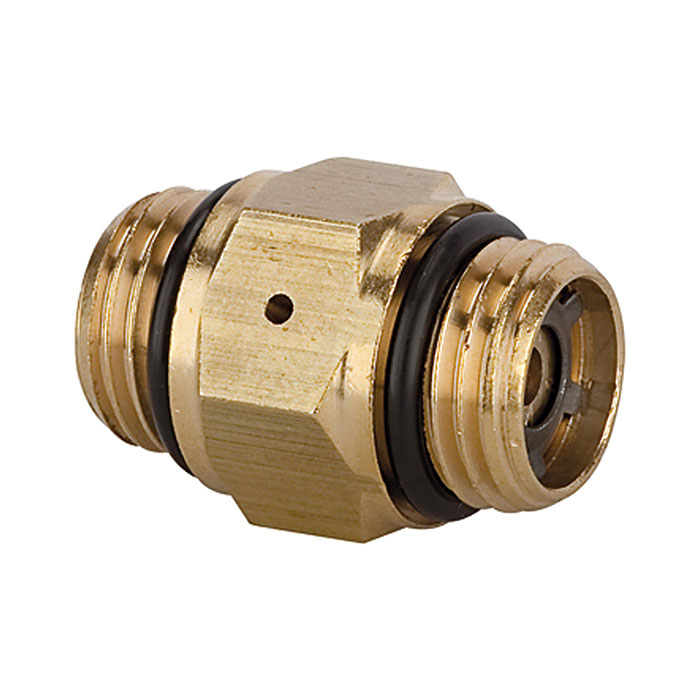

RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 2 bar
Type number: 638.42
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mini pressure regulator, G 1/4 ET / ET, Working pressure (pre-set) 2 bar, PN max. 12 bar
| Inlet pressure max. | 12 bar |
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Housing | Brass |
| Flow rate | 0 - 400 l/min |
| Spring | Stainless steel |
| Thread | G 1/4 AG/AG |
| Working pressure (preset) | 2 bar |
| L | 24 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, CW617N |
| Theme shop | SAFETY |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101507] RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 4 bar](/web/image/product.template/169481/image_128/%5B101507%5D%20RIEGLER%20Mini%20pressure%20regulator%2C%20G%201-4%20ET-ET%2C%20pre-set%204%20bar?unique=3b68dcb)
|
Type number: 638.44 |
22.93 € | |
![[101508] RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 6 bar](/web/image/product.template/169482/image_128/%5B101508%5D%20RIEGLER%20Mini%20pressure%20regulator%2C%20G%201-4%20ET-ET%2C%20pre-set%206%20bar?unique=49bf618)
|
Type number: 638.46 |
22.93 € | |
