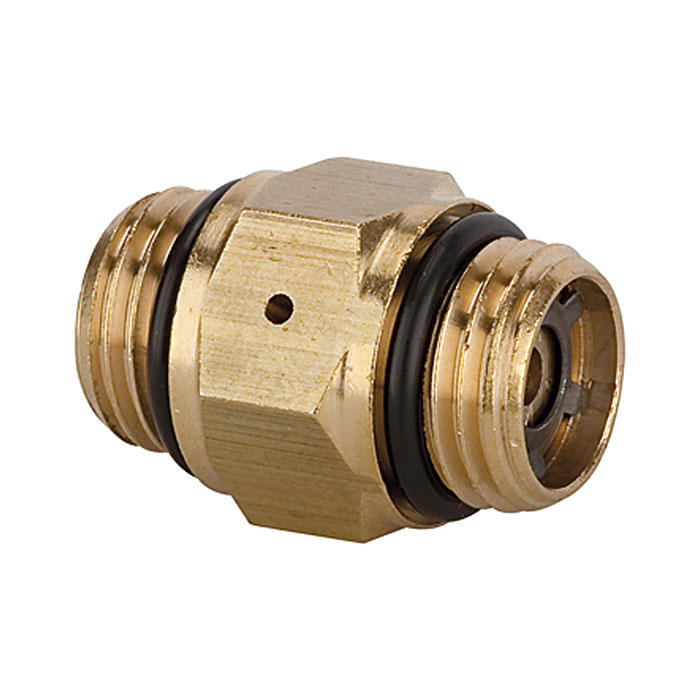

RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 4 bar
Type number: 638.44
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mini pressure regulator made of brass, for compressed air preparation, G 1/4 AG/AG - Type 638.44
The RIEGLER mini pressure regulator, 2 x G 1/4 AG, 4 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of brass. The maximum inlet pressure is 12 bar. The temperature range is between -20 °C and 60 °C. Connection thread G 1/4 AG/AG - suitable for common industry standards. The flow rate is 0 - 400 l/min. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 12 bar |
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Housing | Brass |
| Flow rate | 0 - 400 l/min |
| Spring | Stainless steel |
| Thread | G 1/4 AG/AG |
| Working pressure (preset) | 4 bar |
| L | 24 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, CW617N |
| Theme shop | SAFETY |
| Class name | FLEX |
