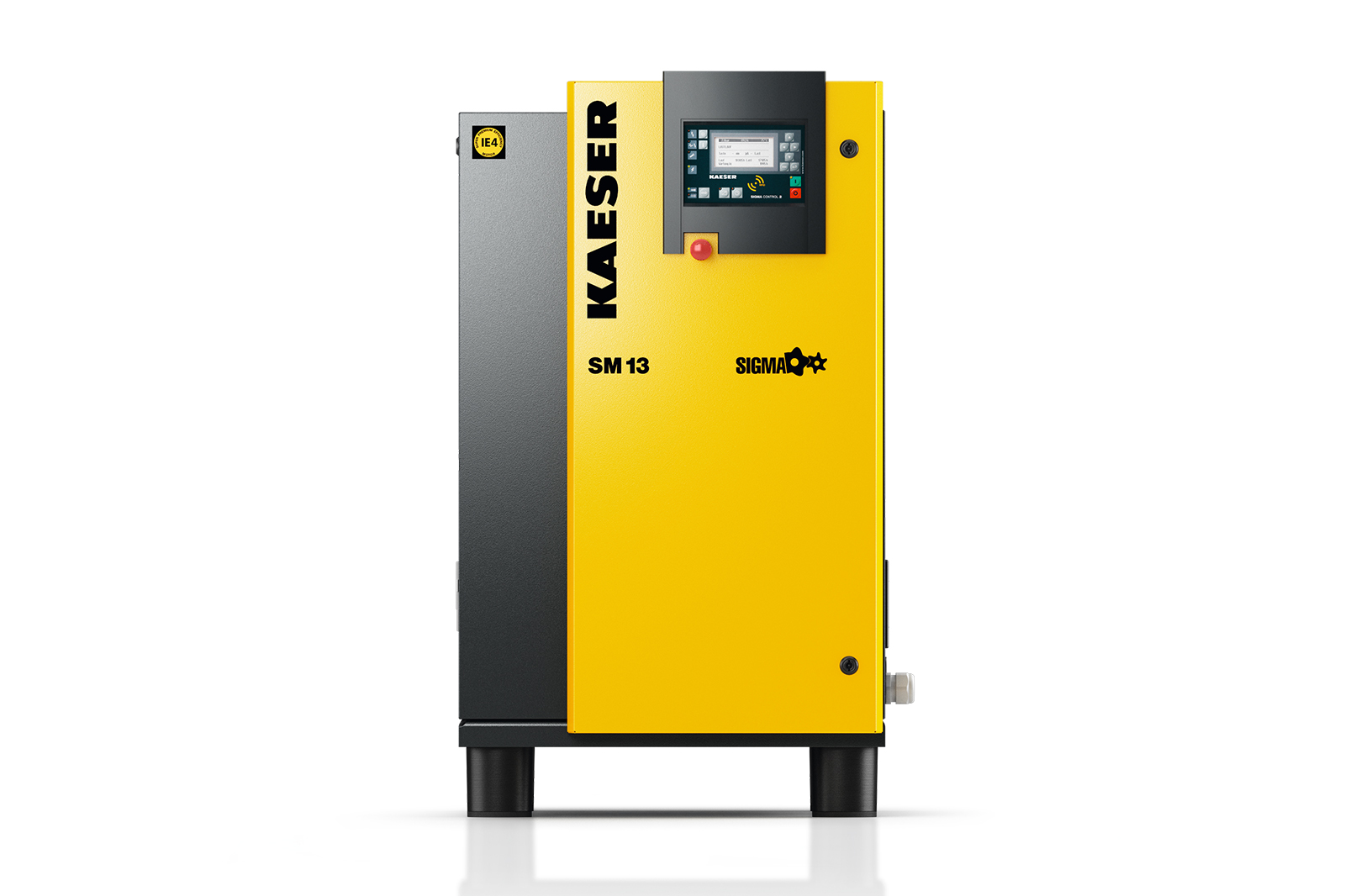

KAESER Screw compressor model SM 10-11 SC2 OAL

https://www.filcom-technik.de/web/image/product.template/95778/image_1920?unique=b59b4c9

Volume flow at overpressure: 0.78 l/min | Maximum overpressure: 11 bar | Rated power of drive motor: 5.5 KW | Electrical connection: 400 V / 3 Ph / 50 Hz

7,737.14 € 7737.14 EUR 7,737.14 € VAT Included

11,210.00 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

KAESER Kompressoren SE
KAESER Kompressoren SE

KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.


Product no. :
101729.0
Category :
Standard
Weight :
220.00 kg
Delivery area :
Germany

KAESER SM 1 screw compressor with SIGMA PROFILE and SIGMA CONTROL 2

KAESER SM 1 screw compressor with SIGMA PROFILE

The SM 1 uses energy sparingly, is quiet, low-maintenance and reliable. Numerous innovative solutions contribute to this. For example in the areas of compressor block with highly efficient SIGMA PROFILE, cooling and ventilation, industrial PC control or IE3 Premium Efficiency motor.

KAESER compressor block with energy-saving SIGMA PROFILE

Every KAESER rotary screw compressor block features rotors with the energy-saving SIGMA PROFILE, which is constantly being optimized in terms of flow technology. This plays a key role in ensuring that the entire system sets standards in terms of specific output. Single-stage compression with cooling fluid injection for optimum cooling, lubrication and sealing of the rotors guarantee a long service life and smooth running.

Thoughtful design

The screw compressors impress with their well thought-out, user-friendly design. The left-hand housing cover can be removed in a few simple steps to reveal the clearly arranged components: All maintenance points are easy to reach. When closed, the housing with its sound-absorbing cladding ensures a pleasant operating noise. With three intake openings, it also provides a separate air supply for highly effective cooling of the system, the drive motor and the control cabinet. Thanks to their design, the compressors are real space savers.

Flexible KAESER belt drive

KAESER KOMPRESSOREN was one of the very first compressor manufacturers to implement this type of drive. The automatic retensioning device keeps the transmission efficiency of the belt drive of KAESER rotary screw compressors at a consistently high level throughout the entire service life of the compressor. This also reduces maintenance costs.

KAESER SM 1 screw compressor with SIGMA CONTROL 2 compressor control

The command center

The industry-standard control unit is equipped with a clear display and robust buttons. All relevant information is visible at a glance. The clear menu structure in combination with 3 selectable languages underlines the simple operation.

Security with RFID

SIGMA CONTROL 2 offers a high level of security thanks to the integrated RFID functionality (Radio Frequency Identification). It enables users and/or KAESER service technicians to log in securely and, in terms of operator liability, guarantees that no unauthorized person can operate the system or manipulate its settings.

Communication

SIGMA CONTROL 2 communicates internally with the compressor via inputs and outputs. The standard Ethernet interface enables integration into the SIGMA NETWORK. Connection to a network enables remote monitoring. The built-in web server allows the control panel, menu structure, operating parameters and message history to be displayed.

Update and save

Software updates and operating parameters can be installed or transferred quickly and easily via the SD card slot. This saves service costs. The SD card can also be used for (long-term) storage of important operating data.

Option "Connection to control technology prepared"

Optional (plug-in) bus communication modules (Profibus DP, Modbus-TCP, Profinet, Devicenet) enable external communication with building and control systems for remote control and remote monitoring of the compressor. Digital and analog inputs and digital outputs that can be defined via the operating unit enable the integration of external sensors and actuators.

Note on projects with the KAESER SM 1 screw compressor

Please note that additional compressed air treatment components may be required for your project planning. The compressed air always contains a certain amount of solids/dust, moisture and a residual oil content (hydrocarbons in aerosol/vapor form). Depending on the application, a certain degree of treatment is therefore required (see ISO 8573). We will be happy to advise you on this.

Volume flow at overpressure (m³/min) 0,78
Rated power drive motor (kW) 5,5
Max. Overpressure (bar) 11
Drive motor efficiency class IE3
Permissible pressure loss cooling channel (Pa) 30
Max. usable warm air volume (m³/h) 2.100
Max. usable heat output "warm air" (kW) 6,8
Required supply air opening (m2) 0,2
Drive motor protection class IP55
Electrical supply 400 V / 3 Ph / 50 Hz
Full load current 12 A
Fuse: Max current 16 A
Cooling fluid filling quantity (litres) 4
Width (mm) 630
Depth (mm) 790
Height (mm) 1.100
Weight (kg) 220
Compressed air connection G 3/4
Sound pressure level (dbA) 62
Refrigeration dryer power consumption (kW) 0,00
