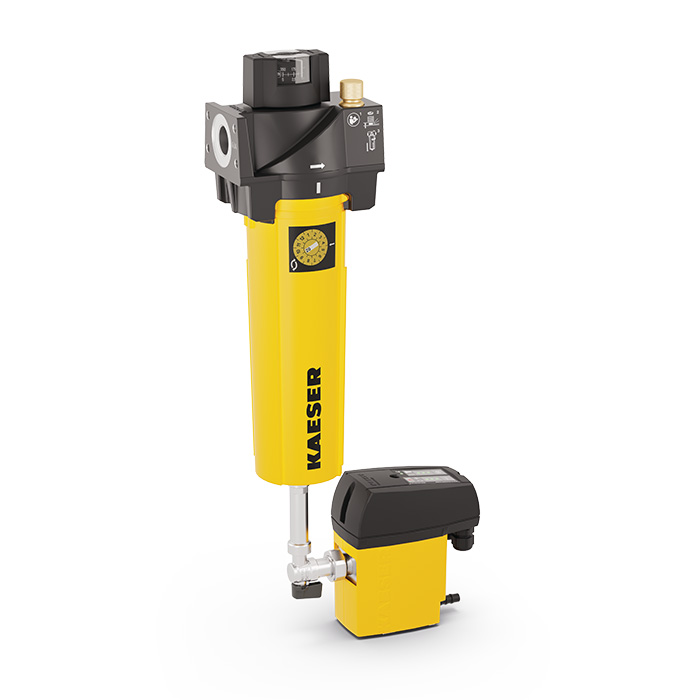

KAESER Filter Extra model F22KE G 3/4", ECO-DRAIN 31F
Volumenstrom: 2,20 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
102115.10341Category :
Compressed Air FiltersWeight :
4.40 kgDelivery area :
DeutschlandDer KAESER Koaleszenzfilter Extra bietet die gleiche effektive Filtration wie das Modell KB, jedoch für eine noch höhere Druckluftqualität. Er entfernt zuverlässig Feststoff- und Flüssig-Aerosole sowie Feinstpartikel und schützt so Ihre Druckluftsysteme optimal.
| Volume flow (m³/min) | 2,20 |
| Compressed air inlet connection | G 3/4" |
| Differential pressure in new condition | 0,05 |
| Differential pressure at saturation | 0,2 |
| Residual aerosol content | 0,01 |
| Min. overpressure (bar) | 2 |
| Max. Overpressure (bar) | 16 |
| Weight (kg) | 4,4 |
| Width (mm) | 241 |
| Height (mm) | 538 |
| Depth (mm) | 225 |
| Condensate drain | ECO-DRAIN 31F |
| Degree of filtration | KE - Coalescence filter Extra |
