KAESER Filter Extra model F22KE G 3/4", Ball valve
Volume flow: 2.20 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
MDM500199782Category :
Compressed Air FiltersWeight :
4.40 kgDelivery area :
DeutschlandThe KAESER coalescence filter Extra offers the same effective filtration as the KB model, but for even higher compressed air quality. It reliably removes solid and liquid aerosols as well as ultra-fine particles, providing optimum protection for your compressed air systems.
| Volume flow (m³/min) | 2,20 |
| Compressed air inlet connection | G 3/4" |
| Differential pressure in new condition | <0,05 |
| Differential pressure at saturation | <0,2 |
| Residual aerosol content | <0,01 |
| Min. overpressure (bar) | 2 |
| Max. Overpressure (bar) | 16 |
| Weight (kg) | 4,4 |
| Width (mm) | 132 |
| Height (mm) | 443 |
| Depth (mm) | 98 |
| Condensate drain | Ball valve |
| Degree of filtration | KE - Coalescence filter Extra |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[MDM500011397] KAESER Filter Extra model F22KE G 3/4", ECO-DRAIN 30](/web/image/product.template/262382/image_128/%5BMDM500011397%5D%20KAESER%20Filter%20Extra%20model%20F22KE%20G%203-4%22%2C%20ECO-DRAIN%2030?unique=39a5b5b)
|
Volume flow: 2.20 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
767.55 € | |
![[102115.20341] KAESER Filter Extra model F22KE G 3/4", ECO-DRAIN 31F](/web/image/product.template/262287/image_128/%5B102115.20341%5D%20KAESER%20Filter%20Extra%20model%20F22KE%20G%203-4%22%2C%20ECO-DRAIN%2031F?unique=f52740e)
|
Volume flow: 2.20 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
831.81 € | |

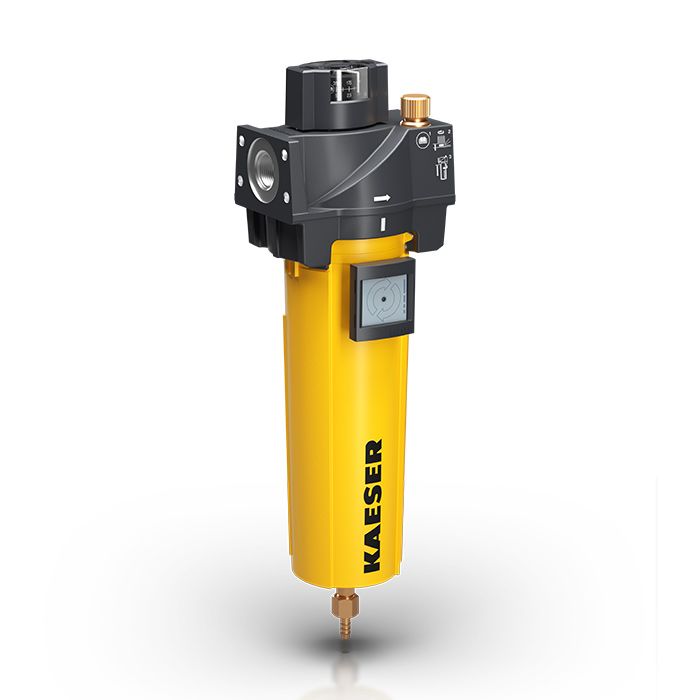

![[102115.10311] KAESER Filter Extra model F22KE G 3/4", Float drain](/web/image/product.template/262286/image_128/%5B102115.10311%5D%20KAESER%20Filter%20Extra%20model%20F22KE%20G%203-4%22%2C%20Float%20drain?unique=4685d2d)
|
Volume flow: 2.20 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
525.68 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[405342.0] KAESER mounting KIT connecting flange KF2.2](/web/image/product.template/226606/image_128/%5B405342.0%5D%20KAESER%20mounting%20KIT%20connecting%20flange%20KF2.2?unique=f2ef80c)
|
Assembly kit / connection kit for 2 KAESER compressed air filters |
42.01 € | |
![[4E0520.0] KAESER KIT wall mount filter KF2.2](/web/image/product.template/234770/image_128/%5B4E0520.0%5D%20KAESER%20KIT%20wall%20mount%20filter%20KF2.2?unique=f2ef80c)
|
KIT Wall bracket for KAESER compressed air filters |
92.82 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[901523.0] KAESER Filter element E22KE](/web/image/product.template/16514/image_128/%5B901523.0%5D%20KAESER%20Filter%20element%20E22KE%20%20?unique=b7737c5)
|
Filter element E22KE suitable for KAESER filter Extra series F22KE. Rely on quality with an original KAESER filter! |
305.83 € | |
