TIVAL Pressure switch FF 4-60 AB PAH 8 - 60 bar 3/8" zinc
max. operating pressure 100 bar
Upper switching point: adjustable 8 - 60 bar
Lower switching point: adjustable 4 - 52 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology.
TIVAL pressure switch FF 4-60 AB PAH Ex 1030138
max. operating pressure 100 bar
with plastic piston and built-in throttle
when using viscous media, this must be removed
ignition protection type IM2 Ex ia I
pressure connection: G 3/8" female thread, die-cast zinc
for mining
with easy-to-read scale for simple adjustment
large connection chamber
high repeat accuracy
approved according to ATEX EN 60079
Weitere Informationen siehe unter Technische Daten
For choke, screw connections and hoods, see "Accessories"
| Upper switching point adjustable (bar) | 8 ... 60 |
| Lower switching point adjustable (bar) | 4 ... 52 |
| small pressure difference (bar) | 4 8 |
| Max. Operating pressure (bar) | 100 |
| Max. Test pressure (bar) | 120 |
| Factory setting (bar) | 20 / 40 |
| Pressure connection | G 3/8" zinc |
| Model range - Pressure switch | FF 4 / PAH |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[1030147] TIVAL Pressure switch FF 4-60 AC PAH 8 - 60 bar 3/8" silumin](/web/image/product.template/149325/image_128/%5B1030147%5D%20TIVAL%20Pressure%20switch%20FF%204-60%20AC%20PAH%208%20-%2060%20bar%203-8%22%20silumin?unique=6d74134)
|
max. operating pressure 100 bar |
440.87 € | |
![[1010088] TIVAL Pressure switch FF 4-60 GL PAH 3/8" silumin](/web/image/product.template/149329/image_128/%5B1010088%5D%20TIVAL%20Pressure%20switch%20FF%204-60%20GL%20PAH%203-8%22%20silumin?unique=6d74134)
|
max. operating pressure 100 bar |
227.62 € | |

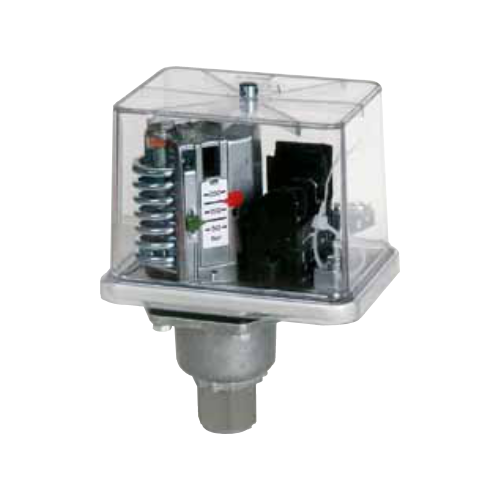

![[1010064] TIVAL Pressure switch FF 4-60 PAH 8-60 bar 3/8" stainless steel](/web/image/product.template/149304/image_128/%5B1010064%5D%20TIVAL%20Pressure%20switch%20FF%204-60%20PAH%208-60%20bar%203-8%22%20stainless%20steel?unique=6d74134)
|
