TIVAL Pressure switch FF 4-60 AC PAH 8 - 60 bar 3/8" silumin
max. operating pressure 100 bar
Upper switching point: adjustable 8 - 60 bar
Lower switching point: adjustable 4 - 52 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-60 AC PAH ATEX high-pressure switch 8 - 60 bar - Chemical (Ex ia IIC) | Art. 1030147
The TIVAL ATEX high-pressure switch is ATEX-certified in accordance with EN 60079 and offers maximum safety for explosive atmospheres. The upper switching point is adjustable from 8 ... 60, the lower switching point can be set from 4 ... 52. Connection: G 3/8" stainless steel - robust design in matching material variant. Application range: High-pressure chemical & explosive atmospheres - with full conformity documentation. max. operating pressure: 100 bar, medium temperature: up to +70°C. Standards & approvals: ATEX EN 60079, II 2G Ex ia IIC T6 Gb. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 8 ... 60 |
| Lower switching point adjustable (bar) | 4 ... 52 |
| small pressure difference (bar) | 4 8 |
| Max. Operating pressure (bar) | 100 |
| Max. Test pressure (bar) | 120 |
| Factory setting (bar) | 20 / 40 |
| Pressure connection | 3/8" Silumin |
| Model range - Pressure switch | FF 4 / PAH |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[1030138] TIVAL Pressure switch FF 4-60 AB PAH 8 - 60 bar 3/8" zinc](/web/image/product.template/149324/image_128/%5B1030138%5D%20TIVAL%20Pressure%20switch%20FF%204-60%20AB%20PAH%208%20-%2060%20bar%203-8%22%20zinc?unique=36c2b2d)
|
max. operating pressure 100 bar |
410.03 € | |
![[1010088] TIVAL Pressure switch FF 4-60 GL PAH 8 - 60 bar 3/8" Silumin](/web/image/product.template/149329/image_128/%5B1010088%5D%20TIVAL%20Pressure%20switch%20FF%204-60%20GL%20PAH%208%20-%2060%20bar%203-8%22%20Silumin?unique=36c2b2d)
|
max. operating pressure 100 bar |
234.95 € | |

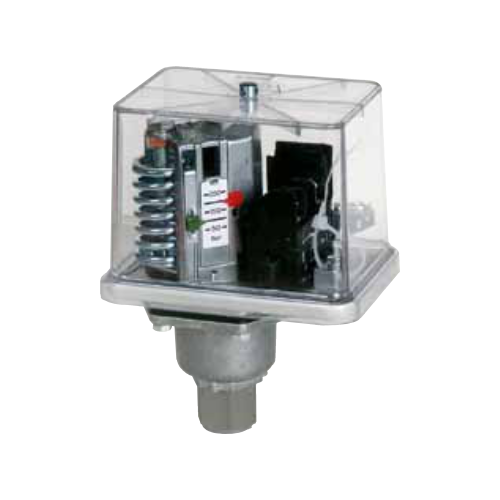

![[1010064] TIVAL Pressure switch FF 4-60 PAH 8-60 bar 3/8" stainless steel](/web/image/product.template/149304/image_128/%5B1010064%5D%20TIVAL%20Pressure%20switch%20FF%204-60%20PAH%208-60%20bar%203-8%22%20stainless%20steel?unique=36c2b2d)
|
