RIEGLER Ball drain valve, Stainless steel 1.4408, G 1/2 ET, DN 15

Price:

20.38 €
    ​
English (US)
  2. Shop
  3. Compressed Air Accessories
  4. RIEGLER Ball drain valve, Stainless steel 1.4408, G 1/2 ET, DN 15
RIEGLER Locking screw, Hexagonal socket, without flange, G 1/4
RIEGLER Locking screw, Hexagonal socket, without flange, G 1/4
0.81 € 0.81 €
RIEGLER Plug-in nipple push-in 8 mm, for I.D. 5, nickel-plated brass
RIEGLER Plug-in nipple push-in 8 mm, for I.D. 5, nickel-plated brass
4.22 € 4.22 €

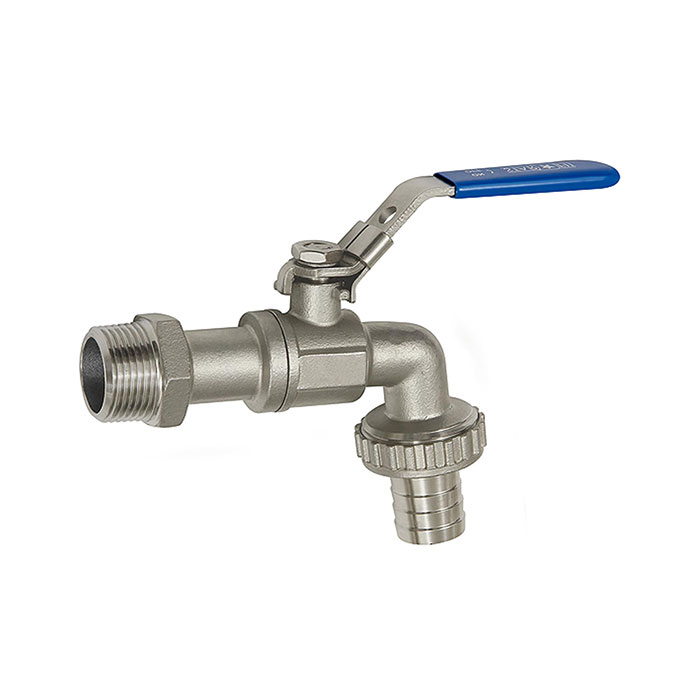

RIEGLER Ball drain valve, Stainless steel 1.4408, G 1/2 ET, DN 15

https://www.filcom-technik.de/web/image/product.template/171386/image_1920?unique=6a0f730

Type number: KAH.12-ES

20.38 € 20.38 EUR 20.38 € VAT Included

23.46 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

Product no. :

103420

EAN :

4047322395168

Category :

2-Way Ball Valves

Weight :

0.23 kg

Ball valve, stainless steel 1.4408, temperature range -10 °C to 150 °C, G 1/2 AG, DN 15, PN max. 16 bar

Sealing material NBR
Material Stainless steel 1.4408
Area of application Water, gaseous and non-aggressive media, compressed air
Operating temperature min. -10 °C
Operating temperature max. 150 °C
DN 15
PN 16 bar
Thread standard G-thread according to ISO 228-1
for hose LW 13 mm
A 90 mm
L 149 mm
H 91 mm
REACH SVHC1 Substance Name no
CAS No. SVHC 1 none CAS No.
Connection G 1/2 AG
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive no entry
Share of SVHC substance in % for RoHS 0
Exception no exception
REACH Info no SVHC substance contained
Share of SVHC SCIP no SVHC substance
Proportion of SVHC substance in SCIP no SVHC substance contained
Material identification 14408
Thread material Stainless steel 1.4408
Grommet connection thread G 3/4
Class name STAINLESS STEEL

Variants / Alternatives

Product Price
[103422] RIEGLER Ball drain valve, Stainless steel 1.4408, G 1 ET, DN 25

Type number: KAH.10-ES

 36.27 €
[103421] RIEGLER Ball drain valve, Stainless steel 1.4408, G 3/4 ET, DN 20

Type number: KAH.34-ES

 26.24 €
