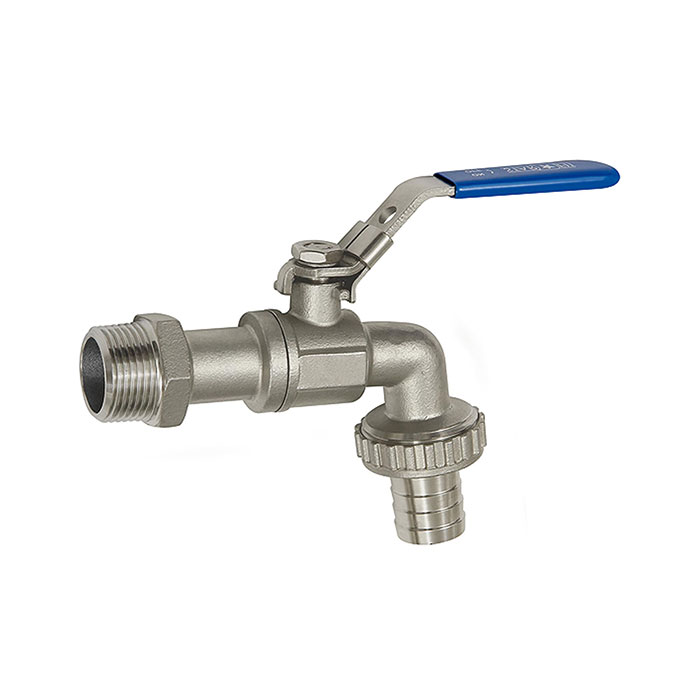

RIEGLER Ball drain valve, Stainless steel 1.4408, G 1 ET, DN 25
Type number: KAH.10-ES
EAN: 4047322395182
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball outlet valve, stainless steel 1.4408, temperature range -10 °C to 150 °C, G 1 AG, DN 25, PN max. 16 bar
| Sealing material | NBR |
| Material | Stainless steel 1.4408 |
| Area of application | Water, gaseous and non-aggressive media, compressed air |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 150 °C |
| DN | 25 |
| PN | 16 bar |
| Thread standard | G-thread according to ISO 228-1 |
| for hose | LW 25 mm |
| A | 90 mm |
| L | 145 mm |
| H | 116 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1 AG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14408 |
| Thread material | Stainless steel 1.4408 |
| Grommet connection thread | G 1 1/4 |
| Class name | STAINLESS STEEL |
