RIEGLER Stainless steel ball valve 1.4408, 1-piece, Small series, G 1/2
Type number: 375.03-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve 1.4408 made of stainless steel 1.4408, for industrial installations, G 1/2 - Type 375.03-ES
The RIEGLER stainless steel ball valve 1.4408, 1-piece, small series, G 1/2, DN 15 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408. The operating temperature is between -20 °C and 150 °C. Connection thread G 1/2 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4408 |
| Ball seal | RPTFE (15% glass fiber reinforced) |
| Spindle seal | RPTFE (15% glass fiber reinforced) |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| Thread | G 1/2 |
| DN | 15 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 96 mm |
| B | 41 mm |
| L | 59 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103485] RIEGLER Stainless steel ball valve 1.4408, 1-piece, Small series, G 1](/web/image/product.template/171447/image_128/%5B103485%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%201.4408%2C%201-piece%2C%20Small%20series%2C%20G%201?unique=31b123a)
|
Type number: 375.05-ES |
60.01 € | |
![[103487] RIEGLER Stainless steel ball valve 1.4408, 1-piece, Small series, G 1 1/2](/web/image/product.template/171449/image_128/%5B103487%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%201.4408%2C%201-piece%2C%20Small%20series%2C%20G%201%201-2?unique=3fe72c6)
|
Type number: 375.07-ES |
102.30 € | |

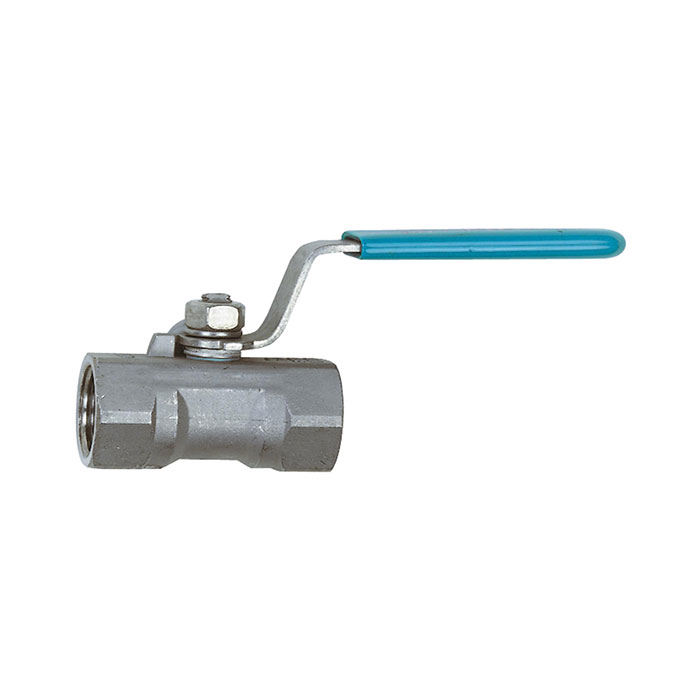

![[103486] RIEGLER Stainless steel ball valve 1.4408, 1-piece, Small series, G 1 1/4](/web/image/product.template/171448/image_128/%5B103486%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%201.4408%2C%201-piece%2C%20Small%20series%2C%20G%201%201-4?unique=5c7e106)
|
