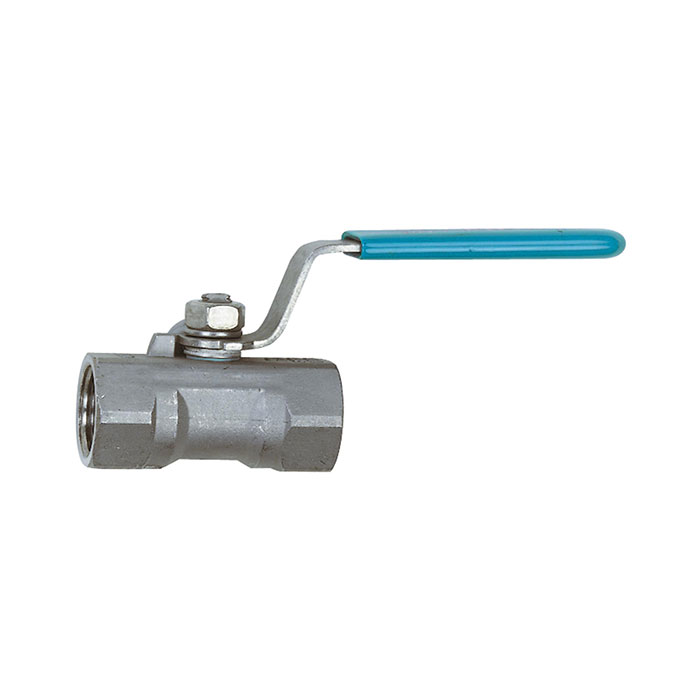

RIEGLER Stainless steel ball valve 1.4408, 1-piece, Small series, G 3/4
Type number: 375.04-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Stainless steel ball valve 1.4408, 1-piece, small series, operating temperature -20 °C to 150 °C, G 3/4, DN 20, PN max. 63 bar
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4408 |
| Ball seal | RPTFE (15% glass fiber reinforced) |
| Spindle seal | RPTFE (15% glass fiber reinforced) |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| Thread | G 3/4 |
| DN | 20 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 96 mm |
| B | 45 mm |
| L | 60 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
