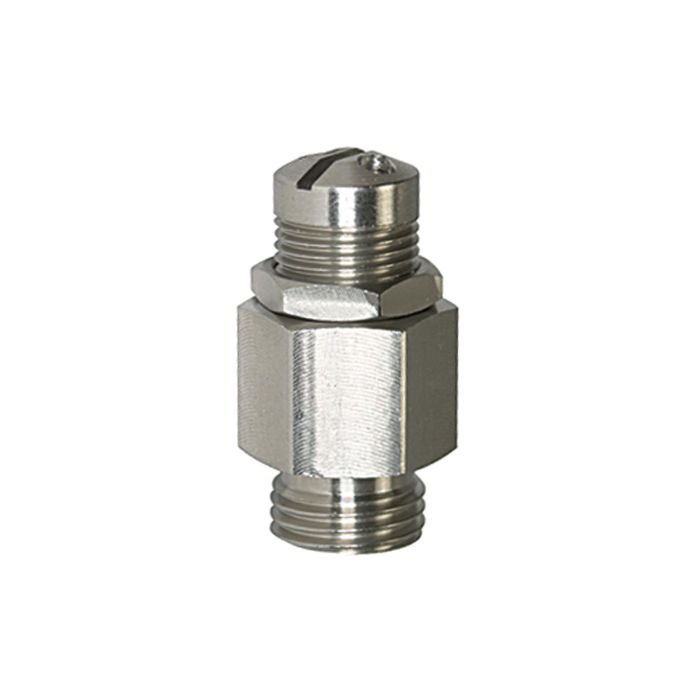

RIEGLER Mini bleeder valve, 1.4305, G 1/4, Trigger pressure 0.5 - 1 bar
Type number: 218.20-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
103922EAN :
4047322211024Category :
Safety valves & pressure relief valvesWeight :
0.03 kgMini blow-off valve, ES, not component-tested, operating temp. -20 °C to 180 °C, PN max. 0.5-60 bar, G 1/4, set pressure 0.5-1.0 bar
| Sealing material | FKM |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 60 bar |
| Material | Stainless steel 1.4305 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Spring | Stainless steel 1.4310 |
| Thread | G 1/4 |
| SW | 16 mm |
| Response pressure min. | 0.5 bar |
| Response pressure max. | 1 bar |
| Max. blow-off capacity | 50 l/min |
| C | 27 mm |
| D | 7 mm |
| do | 3 mm |
| Class name | EASY |
