RIEGLER Mini bleeder valve, 1.4305, G 1/4, Trigger pressure 3 - 7 bar
Type number: 218.22-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
103924EAN :
4047322211048Category :
Safety Valves & Pressure Relief ValvesWeight :
0.03 kgRIEGLER Mini blow-off valve made of stainless steel 1.4305, for industrial systems, max. 60 bar - Type 218.22-ES
The RIEGLER mini blow-off valve, stainless steel, G 1/4, response pressure 3.0 - 7.0 bar reliably protects compressed air systems and containers against impermissible overpressure. The housing is made of stainless steel 1.4305 with FKM seals. The operating pressure range is 0.5 bar to 60 bar. The operating temperature is between -20 °C and 180 °C. G 1/4 connection thread - suitable for common industry standards. Reliable overpressure protection for safe systems.
Field of application
Typical areas of application: Pressure vessels, compressor systems and piping systems.
| Sealing material | FKM |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 60 bar |
| Material | Stainless steel 1.4305 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Spring | Stainless steel 1.4310 |
| Thread | G 1/4 |
| SW | 16 mm |
| Response pressure min. | 3 bar |
| Response pressure max. | 7 bar |
| Max. blow-off capacity | 350 l/min |
| C | 27 mm |
| D | 7 mm |
| do | 3 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

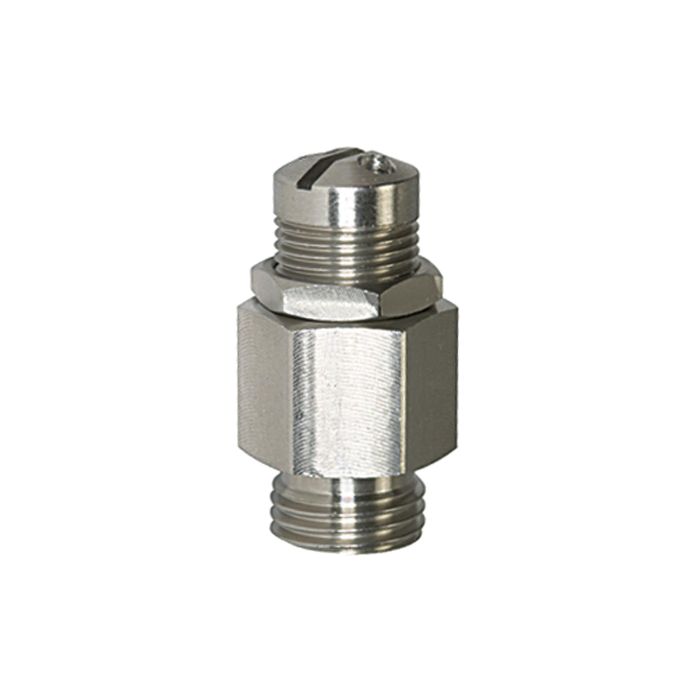

![[103922] RIEGLER Mini bleeder valve, 1.4305, G 1/4, Trigger pressure 0.5 - 1 bar](/web/image/product.template/171870/image_128/%5B103922%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-4%2C%20Trigger%20pressure%200.5%20-%201%20bar?unique=bc7f273)
|
Type number: 218.20-ES |
22.26 € | |
![[103926] RIEGLER Mini bleeder valve, 1.4305, G 1/4, Trigger pressure 10 - 18 bar](/web/image/product.template/171874/image_128/%5B103926%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-4%2C%20Trigger%20pressure%2010%20-%2018%20bar?unique=48428ec)
|
Type number: 218.24-ES |
22.26 € | |
![[103923] RIEGLER Mini bleeder valve, 1.4305, G 1/4, Trigger pressure 1 - 4 bar](/web/image/product.template/171871/image_128/%5B103923%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-4%2C%20Trigger%20pressure%201%20-%204%20bar?unique=3fe6867)
|
Type number: 218.21-ES |
22.26 € | |
![[103927] RIEGLER Mini bleeder valve, 1.4305, G 1/4, Trigger pressure 16 - 32 bar](/web/image/product.template/171875/image_128/%5B103927%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-4%2C%20Trigger%20pressure%2016%20-%2032%20bar?unique=46bd42e)
|
Type number: 218.25-ES |
22.26 € | |
![[103928] RIEGLER Mini bleeder valve, 1.4305, G 1/4, Trigger pressure 30 - 60 bar](/web/image/product.template/171876/image_128/%5B103928%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-4%2C%20Trigger%20pressure%2030%20-%2060%20bar?unique=6be2401)
|
Type number: 218.26-ES |
22.26 € | |
![[103925] RIEGLER Mini bleeder valve, 1.4305, G 1/4, Trigger pressure 6 - 12 bar](/web/image/product.template/171873/image_128/%5B103925%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-4%2C%20Trigger%20pressure%206%20-%2012%20bar?unique=154c909)
|
Type number: 218.23-ES |
22.26 € | |
