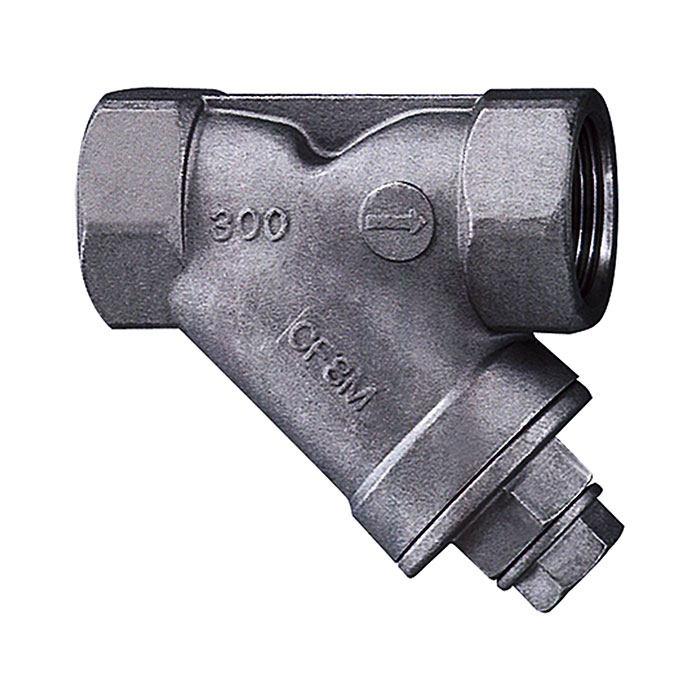

RIEGLER Dirt strainer, Stainless steel, G 1 1/2, DN 40
Type number: 60-7 ES
EAN: 4047322104135
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Strainer, stainless steel, strainer insert stainless steel, mesh size 0.6 mm, operating temp. -20°C to 180°C, G 1 1/2, DN 40, PN max. 40bar
| Housing | Stainless steel 1.4401 / 1.4408 |
| Sealing material | PTFE |
| Max. operating pressure | 40 bar |
| Medium temperature max. | 180 °C |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Head piece | Stainless steel 1.4401 / 1.4408 |

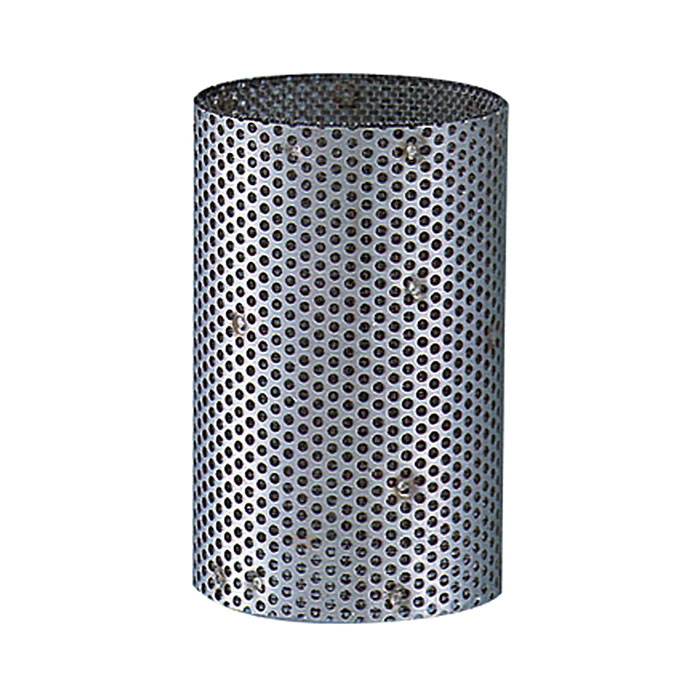

| Sieve insert | Stainless steel |
| Thread | G 1 1/2 |
| DN | 40 |
| SW 1 | 56 mm |
| SW 2 | 32 mm |
| Thread standard | G-thread according to ISO 228-1 |
| Mesh size | 0.6 mm |
| C | 87 mm |
| L | 120 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
