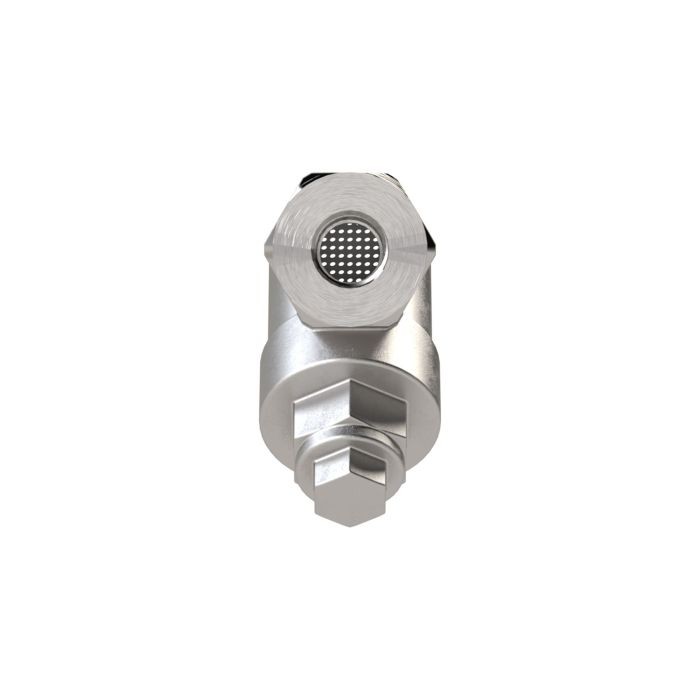

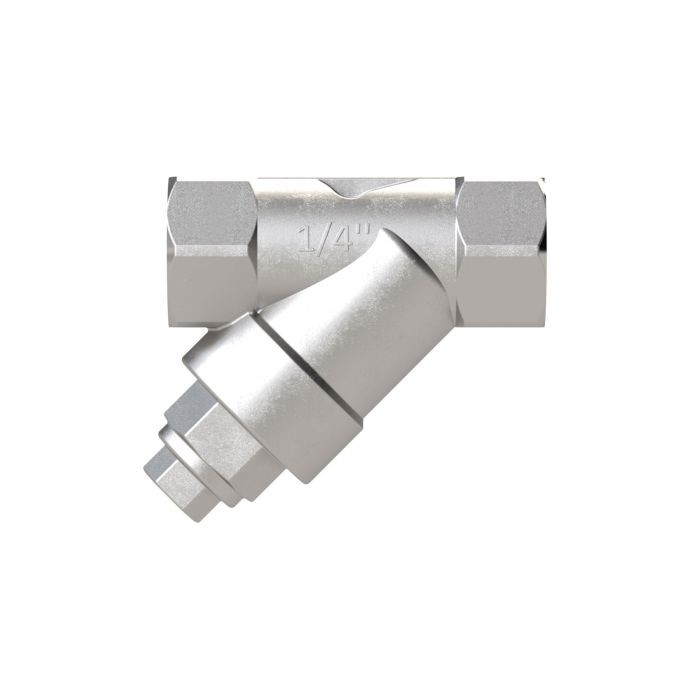

RIEGLER Dirt strainer, Stainless steel, G 3/8, DN 10
Type number: 60-2 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Strainer made of stainless steel 1.4401 / 1.4408, for industrial systems, max. 40 bar - Type 60-2 ES
The RIEGLER strainer, stainless steel, MW 0.6 mm, G 3/8, DN 10 traps impurities in pipes and protects fittings. The housing is made of stainless steel 1.4401 / 1.4408 with PTFE seals. Designed for a maximum operating pressure of 40 bar. The operating temperature is between -20 °C and 180 °C. Connection thread G 3/8 (G thread to ISO 228-1) - suitable for common industry standards. Protection of downstream fittings.
Field of application
Typical areas of application: Piping systems.
| Housing | Stainless steel 1.4401 / 1.4408 |
| Sealing material | PTFE |
| Max. operating pressure | 40 bar |
| Medium temperature max. | 180 °C |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Head piece | Stainless steel 1.4401 / 1.4408 |
| Sieve insert | Stainless steel |
| Thread | G 3/8 |
| DN | 10 |

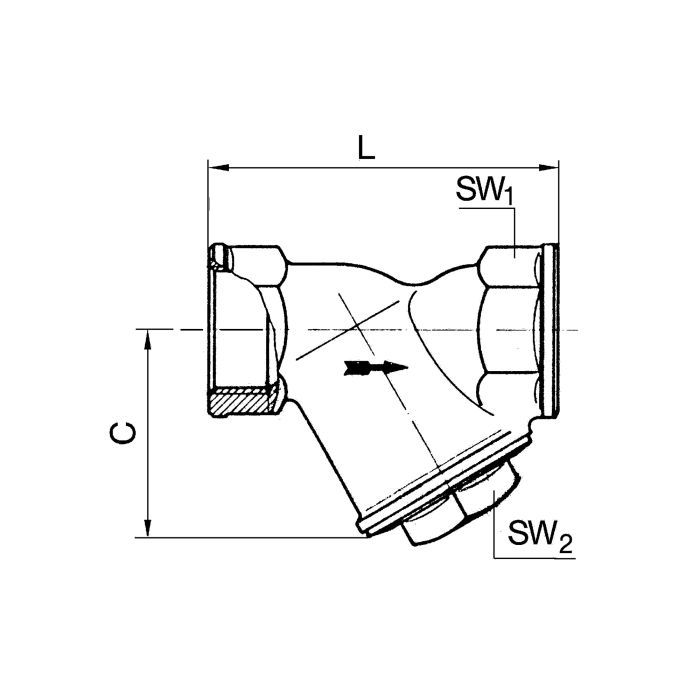

| SW 1 | 26 mm |
| SW 2 | 19 mm |
| Thread standard | G-thread according to ISO 228-1 |
| Mesh size | 0.6 mm |
| C | 47 mm |
| L | 65 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[105680] RIEGLER Dirt strainer, Stainless steel, G 1 1/2, DN 40](/web/image/product.template/173627/image_128/%5B105680%5D%20RIEGLER%20Dirt%20strainer%2C%20Stainless%20steel%2C%20G%201%201-2%2C%20DN%2040?unique=e47a373)
|
Type number: 60-7 ES |
182.72 € | |
![[105679] RIEGLER Dirt strainer, Stainless steel, G 1 1/4, DN 32](/web/image/product.template/173626/image_128/%5B105679%5D%20RIEGLER%20Dirt%20strainer%2C%20Stainless%20steel%2C%20G%201%201-4%2C%20DN%2032?unique=6e07904)
|
Type number: 60-6 ES |
135.17 € | |
![[105676] RIEGLER Dirt strainer, Stainless steel, G 1/2, DN 15](/web/image/product.template/173623/image_128/%5B105676%5D%20RIEGLER%20Dirt%20strainer%2C%20Stainless%20steel%2C%20G%201-2%2C%20DN%2015?unique=cad8a90)
|
Type number: 60-3 ES |
68.88 € | |
![[105674] RIEGLER Dirt strainer, Stainless steel, G 1/4, DN 8](/web/image/product.template/173621/image_128/%5B105674%5D%20RIEGLER%20Dirt%20strainer%2C%20Stainless%20steel%2C%20G%201-4%2C%20DN%208?unique=2a27281)
|
Type number: 60-1 ES |
64.84 € | |
![[105678] RIEGLER Dirt strainer, Stainless steel, G 1, DN 25](/web/image/product.template/173625/image_128/%5B105678%5D%20RIEGLER%20Dirt%20strainer%2C%20Stainless%20steel%2C%20G%201%2C%20DN%2025?unique=4f2207c)
|
Type number: 60-5 ES |
101.83 € | |
![[105681] RIEGLER Dirt strainer, Stainless steel, G 2, DN 50](/web/image/product.template/173628/image_128/%5B105681%5D%20RIEGLER%20Dirt%20strainer%2C%20Stainless%20steel%2C%20G%202%2C%20DN%2050?unique=f95485f)
|
Type number: 60-8 ES |
246.91 € | |

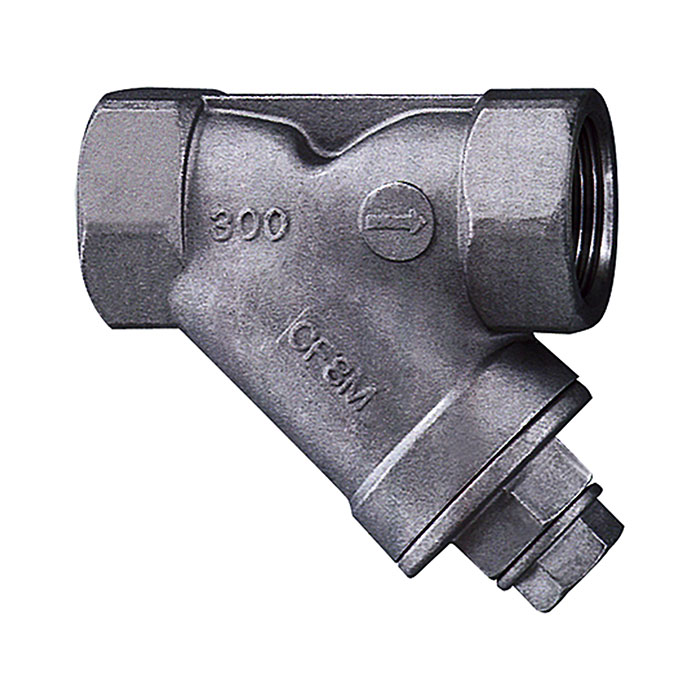

![[105677] RIEGLER Dirt strainer, Stainless steel, G 3/4, DN 20](/web/image/product.template/173624/image_128/%5B105677%5D%20RIEGLER%20Dirt%20strainer%2C%20Stainless%20steel%2C%20G%203-4%2C%20DN%2020?unique=54d4c83)
|
Type number: 60-4 ES |
91.17 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

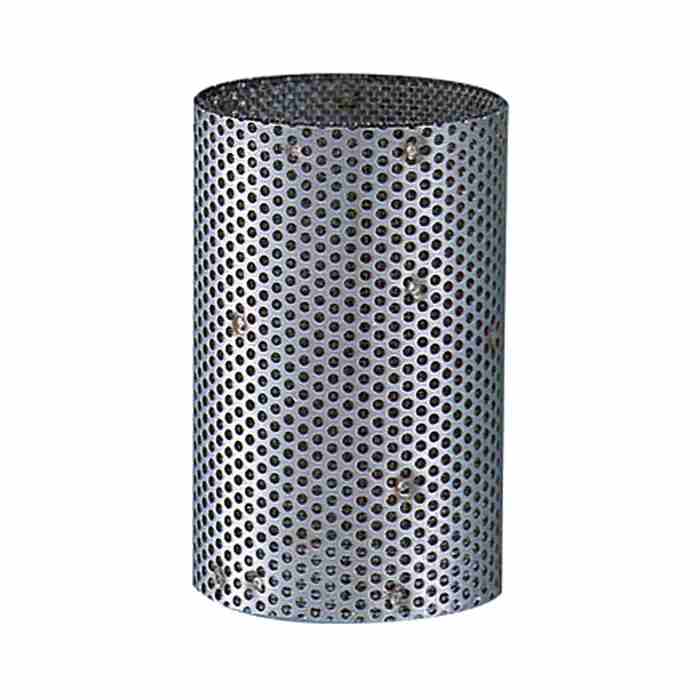

![[105682] RIEGLER Replacement sieve for dirt strainers, for size 1/4, 3/8, 1/2](/web/image/product.template/173629/image_128/%5B105682%5D%20RIEGLER%20Replacement%20sieve%20for%20dirt%20strainers%2C%20for%20size%201-4%2C%203-8%2C%201-2?unique=786a243)
|
Type number: 62 ES |
8.08 € | |
