RIEGLER Short stroke cylinder single-acting, PistonØ 40, Stroke 10, G 1/8
Type number: 3.EMF.40010
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Short-stroke cylinder, single-acting, with solenoid, piston Ø 40, stroke 10, G 1/8, max. working pressure 10 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Working pressure max. | 10 bar |
| Pipe | Aluminium alloy, anodized |
| Piston rod seal | NBR (PU and FKM at extra charge) |
| Piston seal | NBR (PU and FKM at extra charge) |
| Piston Ø | 40 mm |
| Function | single-acting |
| Response pressure min. | 0.4 bar |
| Stroke | 10 mm |
| Piston rods IG | M6 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | C45 steel, hard chrome-plated |
| Head | Aluminum |
| Piston | Acetal synthetic resin |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[105952] RIEGLER Short stroke cylinder, single-acting, Piston Ø 12, Stroke 10, M5](/web/image/product.template/173899/image_128/%5B105952%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%2010%2C%20M5?unique=d065207)
|
Type number: 3.EMF.12010 |
53.18 € | |
![[105953] RIEGLER Short stroke cylinder, single-acting, Piston Ø 12, Stroke 25, M5](/web/image/product.template/173900/image_128/%5B105953%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%2025%2C%20M5?unique=cd126be)
|
Type number: 3.EMF.12025 |
52.98 € | |
![[105954] RIEGLER Short stroke cylinder, single-acting, Piston Ø 16, Stroke 10, M5](/web/image/product.template/173901/image_128/%5B105954%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%2010%2C%20M5?unique=54da19e)
|
Type number: 3.EMF.16010 |
53.75 € | |
![[105955] RIEGLER Short stroke cylinder, single-acting, Piston Ø 16, Stroke 25, M5](/web/image/product.template/173902/image_128/%5B105955%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%2025%2C%20M5?unique=64f2a97)
|
Type number: 3.EMF.16025 |
55.14 € | |
![[105956] RIEGLER Short stroke cylinder, single-acting, Piston Ø 20, Stroke 10, M5](/web/image/product.template/173903/image_128/%5B105956%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2C%20M5?unique=5600b90)
|
Type number: 3.EMF.20010 |
56.38 € | |
![[105957] RIEGLER Short stroke cylinder, single-acting, Piston Ø 20, Stroke 25, M5](/web/image/product.template/173904/image_128/%5B105957%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2C%20M5?unique=0f9fd60)
|
Type number: 3.EMF.20025 |
58.00 € | |
![[105958] RIEGLER Short stroke cylinder single-acting, PistonØ 25, Stroke 10, G 1/8](/web/image/product.template/173905/image_128/%5B105958%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2025%2C%20Stroke%2010%2C%20G%201-8?unique=cb0c51c)
|
Type number: 3.EMF.25010 |
59.19 € | |
![[105959] RIEGLER Short stroke cylinder single-acting, PistonØ 25, Stroke 25, G 1/8](/web/image/product.template/173906/image_128/%5B105959%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2025%2C%20Stroke%2025%2C%20G%201-8?unique=361fdab)
|
Type number: 3.EMF.25025 |
61.12 € | |
![[105960] RIEGLER Short stroke cylinder single-acting, PistonØ 32, Stroke 10, G 1/8](/web/image/product.template/173907/image_128/%5B105960%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2010%2C%20G%201-8?unique=e7b3d0a)
|
Type number: 3.EMF.32010 |
64.39 € | |
![[105961] RIEGLER Short stroke cylinder single-acting, PistonØ 32, Stroke 25, G 1/8](/web/image/product.template/173908/image_128/%5B105961%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2025%2C%20G%201-8?unique=a2d1bef)
|
Type number: 3.EMF.32025 |
65.63 € | |
![[105963] RIEGLER Short stroke cylinder single-acting, PistonØ 40, Stroke 25, G 1/8](/web/image/product.template/173910/image_128/%5B105963%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2040%2C%20Stroke%2025%2C%20G%201-8?unique=2cbfc80)
|
Type number: 3.EMF.40025 |
69.08 € | |
![[105964] RIEGLER Short stroke cylinder single-acting, PistonØ 50, Stroke 25, G 1/8](/web/image/product.template/173911/image_128/%5B105964%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2050%2C%20Stroke%2025%2C%20G%201-8?unique=afdc113)
|
Type number: 3.EMF.50025 |
80.71 € | |
![[105965] RIEGLER Short stroke cylinder single-acting, PistonØ 63, Stroke 25, G 1/8](/web/image/product.template/173912/image_128/%5B105965%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2063%2C%20Stroke%2025%2C%20G%201-8?unique=4ec5762)
|
Type number: 3.EMF.63025 |
99.28 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[105966] RIEGLER Magnetic sensor Reed, for short stroke cylinder, Piston Ø 12 - 80](/web/image/product.template/173913/image_128/%5B105966%5D%20RIEGLER%20Magnetic%20sensor%20Reed%2C%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2012%20-%2080?unique=e136ea1)
|
Type number: 435.779-M |
36.28 € | |
![[145363] RIEGLER Threaded nipple M12x1.25, for piston rod internal thread M6, piston Ø 40 mm](/web/image/product.template/279174/image_128/%5B145363%5D%20RIEGLER%20Threaded%20nipple%20M12x1.25%2C%20for%20piston%20rod%20internal%20thread%20M6%2C%20piston%20%C3%98%2040%20mm?unique=6482883)
|
Type number: 219004000 |
5.14 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[129889] RIEGLER Seal kit, for short-stroke cylinders, piston Ø 40, NBR seal](/web/image/product.template/273101/image_128/%5B129889%5D%20RIEGLER%20Seal%20kit%2C%20for%20short-stroke%20cylinders%2C%20piston%20%C3%98%2040%2C%20NBR%20seal?unique=7def976)
|
Type number: 435.7040-NBR |
10.98 € | |

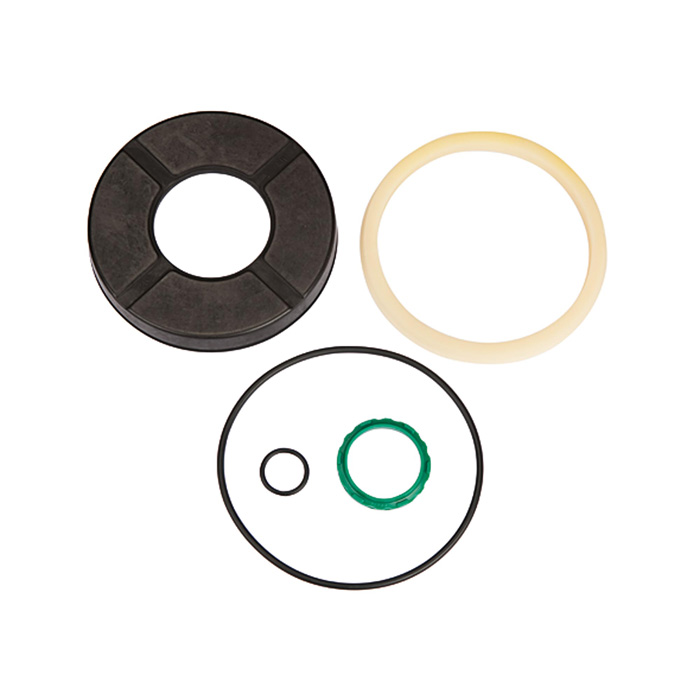

![[129898] RIEGLER Seal kit, for short-stroke cylinders, piston Ø 40, PU seal](/web/image/product.template/273110/image_128/%5B129898%5D%20RIEGLER%20Seal%20kit%2C%20for%20short-stroke%20cylinders%2C%20piston%20%C3%98%2040%2C%20PU%20seal?unique=f698781)
|
