RIEGLER Short stroke cylinder single-acting, PistonØ 50, Stroke 25, G 1/8
Type number: 3.EMF.50025
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Short stroke cylinder, single-acting, Magnet, Piston Ø 50, Stroke 25, G 1/8, Working pressure max. 10 bar, Temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Working pressure max. | 10 bar |
| Pipe | Aluminium alloy, anodized |
| Piston rod seal | NBR (PU and FKM at extra charge) |
| Piston seal | NBR (PU and FKM at extra charge) |
| Piston Ø | 50 mm |
| Function | single-acting |
| Response pressure min. | 0.4 bar |
| Stroke | 25 mm |
| Piston rods IG | M8 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | C45 steel, hard chrome-plated |
| Head | Aluminum |
| Piston | Acetal synthetic resin |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[105952] RIEGLER Short stroke cylinder, single-acting, Piston Ø 12, Stroke 10, M5](/web/image/product.template/173899/image_128/%5B105952%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%2010%2C%20M5?unique=018308c)
|
Type number: 3.EMF.12010 |
53.18 € | |
![[105953] RIEGLER Short stroke cylinder, single-acting, Piston Ø 12, Stroke 25, M5](/web/image/product.template/173900/image_128/%5B105953%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%2025%2C%20M5?unique=797af6e)
|
Type number: 3.EMF.12025 |
52.98 € | |
![[105954] RIEGLER Short stroke cylinder, single-acting, Piston Ø 16, Stroke 10, M5](/web/image/product.template/173901/image_128/%5B105954%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%2010%2C%20M5?unique=8fbfff8)
|
Type number: 3.EMF.16010 |
53.75 € | |
![[105955] RIEGLER Short stroke cylinder, single-acting, Piston Ø 16, Stroke 25, M5](/web/image/product.template/173902/image_128/%5B105955%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%2025%2C%20M5?unique=b5a481d)
|
Type number: 3.EMF.16025 |
55.14 € | |
![[105956] RIEGLER Short stroke cylinder, single-acting, Piston Ø 20, Stroke 10, M5](/web/image/product.template/173903/image_128/%5B105956%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2C%20M5?unique=8e9f6a0)
|
Type number: 3.EMF.20010 |
56.38 € | |
![[105957] RIEGLER Short stroke cylinder, single-acting, Piston Ø 20, Stroke 25, M5](/web/image/product.template/173904/image_128/%5B105957%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20single-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2C%20M5?unique=701f2ce)
|
Type number: 3.EMF.20025 |
58.00 € | |
![[105958] RIEGLER Short stroke cylinder single-acting, PistonØ 25, Stroke 10, G 1/8](/web/image/product.template/173905/image_128/%5B105958%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2025%2C%20Stroke%2010%2C%20G%201-8?unique=28d9d17)
|
Type number: 3.EMF.25010 |
59.19 € | |
![[105959] RIEGLER Short stroke cylinder single-acting, PistonØ 25, Stroke 25, G 1/8](/web/image/product.template/173906/image_128/%5B105959%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2025%2C%20Stroke%2025%2C%20G%201-8?unique=fa0d146)
|
Type number: 3.EMF.25025 |
61.12 € | |
![[105960] RIEGLER Short stroke cylinder single-acting, PistonØ 32, Stroke 10, G 1/8](/web/image/product.template/173907/image_128/%5B105960%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2010%2C%20G%201-8?unique=f5239bb)
|
Type number: 3.EMF.32010 |
64.39 € | |
![[105961] RIEGLER Short stroke cylinder single-acting, PistonØ 32, Stroke 25, G 1/8](/web/image/product.template/173908/image_128/%5B105961%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2025%2C%20G%201-8?unique=e7017aa)
|
Type number: 3.EMF.32025 |
65.63 € | |
![[105962] RIEGLER Short stroke cylinder single-acting, PistonØ 40, Stroke 10, G 1/8](/web/image/product.template/173909/image_128/%5B105962%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2040%2C%20Stroke%2010%2C%20G%201-8?unique=d2f5bf9)
|
Type number: 3.EMF.40010 |
68.52 € | |
![[105963] RIEGLER Short stroke cylinder single-acting, PistonØ 40, Stroke 25, G 1/8](/web/image/product.template/173910/image_128/%5B105963%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2040%2C%20Stroke%2025%2C%20G%201-8?unique=614d2e3)
|
Type number: 3.EMF.40025 |
69.08 € | |
![[105965] RIEGLER Short stroke cylinder single-acting, PistonØ 63, Stroke 25, G 1/8](/web/image/product.template/173912/image_128/%5B105965%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2063%2C%20Stroke%2025%2C%20G%201-8?unique=8a55b3f)
|
Type number: 3.EMF.63025 |
99.28 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[105966] RIEGLER Magnetic sensor Reed, for short stroke cylinder, Piston Ø 12 - 80](/web/image/product.template/173913/image_128/%5B105966%5D%20RIEGLER%20Magnetic%20sensor%20Reed%2C%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2012%20-%2080?unique=27d4aac)
|
Type number: 435.779-M |
36.28 € | |

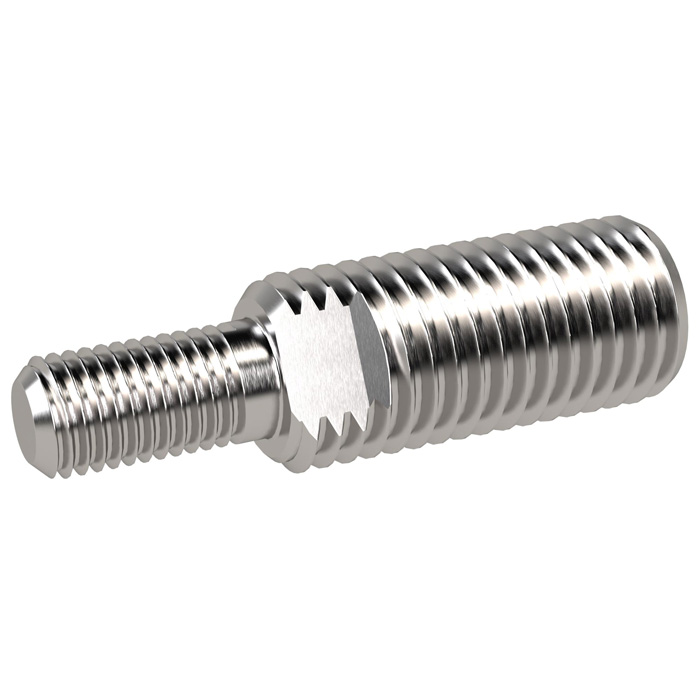

![[145364] RIEGLER Threaded nipple M16x1.5, for piston rod internal thread M8, piston Ø 50/63 mm](/web/image/product.template/279175/image_128/%5B145364%5D%20RIEGLER%20Threaded%20nipple%20M16x1.5%2C%20for%20piston%20rod%20internal%20thread%20M8%2C%20piston%20%C3%98%2050-63%20mm?unique=b08c08e)
|
Type number: 219005000 |
7.35 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[129890] RIEGLER Seal kit, for short-stroke cylinders, piston Ø 50, NBR seal](/web/image/product.template/273102/image_128/%5B129890%5D%20RIEGLER%20Seal%20kit%2C%20for%20short-stroke%20cylinders%2C%20piston%20%C3%98%2050%2C%20NBR%20seal?unique=a354659)
|
Type number: 435.7050-NBR |
11.11 € | |
