RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 40, G 1/8
Type number: 7.DMA.50040
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Compact cylinder LINER, ISO 21287, double-acting, male, solenoid, piston Ø 50, stroke 40, G1/8, max. working pressure 10 bar, temp. -10°C to 60°C
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Series | LINER series |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with T-slots, anodized |
| Piston rod seal | PU |
| Piston seal | PU |
| Piston Ø | 50 mm |
| Function | double-acting |
| Response pressure min. | 0.4 bar |
| Stroke | 40 mm |
| Piston rods AG | M12x1.25 |
| Connection | G 1/8 |
| Piston rod | C45 steel, hard chrome-plated |
| Piston | POM |
| Class name | PLUS |
| Magnet | with magnet |
| Standard | according to ISO 21287 |
| Thread piston rod | External thread on the piston rod |
| Static O-rings | NBR |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

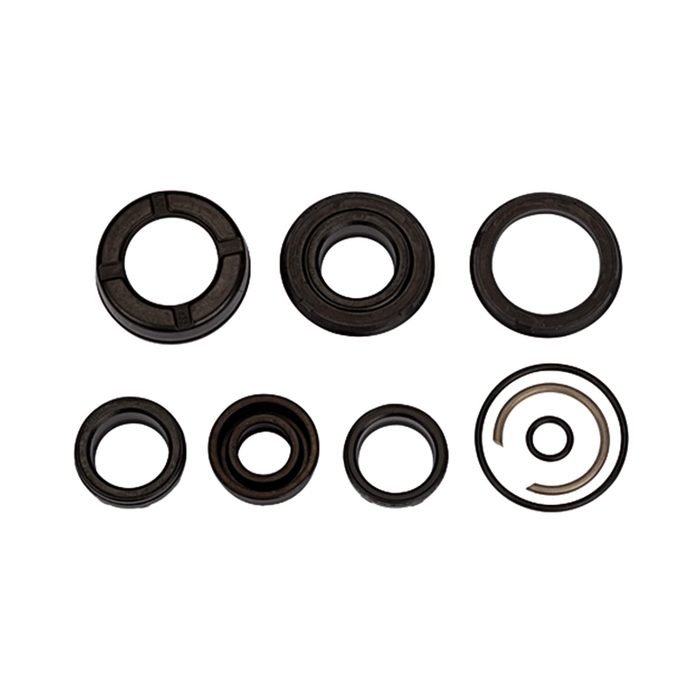

![[106174] RIEGLER Seal set (wear part), for compact cylinder, Piston Ø 50, PU seal](/web/image/product.template/174121/image_128/%5B106174%5D%20RIEGLER%20Seal%20set%20%28wear%20part%29%2C%20for%20compact%20cylinder%2C%20Piston%20%C3%98%2050%2C%20PU%20seal?unique=0e70171)
|
Type number: 235.19-M |
10.33 € | |
