RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 50, G 1/8
Type number: 7.DMA.50050
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact cylinder LINER, ISO 21287, double-acting, Piston Ø 50, Stroke 50, G 1/8, Working pressure max. 10 bar, Temp. -10°C to 60°C
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Series | LINER series |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with T-slots, anodized |
| Piston rod seal | PU |
| Piston seal | PU |
| Piston Ø | 50 mm |
| Function | double-acting |
| Response pressure min. | 0.4 bar |
| Stroke | 50 mm |
| Piston rods AG | M12x1.25 |
| Connection | G 1/8 |
| Piston rod | C45 steel, hard chrome-plated |
| Piston | POM |
| Class name | PLUS |
| Magnet | with magnet |
| Standard | according to ISO 21287 |
| Thread piston rod | External thread on the piston rod |
| Static O-rings | NBR |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106114] RIEGLER Compact cylinder, double-acting, Piston Ø100, Stroke 10, G 1/8](/web/image/product.template/174061/image_128/%5B106114%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98100%2C%20Stroke%2010%2C%20G%201-8?unique=38d9302)
|
Type number: 7.DMA.100010 |
206.54 € | |
![[106115] RIEGLER Compact cylinder, double-acting, Piston Ø100, Stroke 15, G 1/8](/web/image/product.template/174062/image_128/%5B106115%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98100%2C%20Stroke%2015%2C%20G%201-8?unique=04389fd)
|
Type number: 7.DMA.100015 |
205.33 € | |
![[106116] RIEGLER Compact cylinder, double-acting, Piston Ø100, Stroke 20, G 1/8](/web/image/product.template/174063/image_128/%5B106116%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98100%2C%20Stroke%2020%2C%20G%201-8?unique=b5d7188)
|
Type number: 7.DMA.100020 |
206.96 € | |
![[106117] RIEGLER Compact cylinder, double-acting, Piston Ø100, Stroke 25, G 1/8](/web/image/product.template/174064/image_128/%5B106117%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98100%2C%20Stroke%2025%2C%20G%201-8?unique=2a0d928)
|
Type number: 7.DMA.100025 |
208.58 € | |
![[106118] RIEGLER Compact cylinder, double-acting, Piston Ø100, Stroke 30, G 1/8](/web/image/product.template/174065/image_128/%5B106118%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98100%2C%20Stroke%2030%2C%20G%201-8?unique=31c1e7c)
|
Type number: 7.DMA.100030 |
213.15 € | |
![[106119] RIEGLER Compact cylinder, double-acting, Piston Ø100, Stroke 40, G 1/8](/web/image/product.template/174066/image_128/%5B106119%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98100%2C%20Stroke%2040%2C%20G%201-8?unique=323d157)
|
Type number: 7.DMA.100040 |
216.46 € | |
![[106120] RIEGLER Compact cylinder, double-acting, Piston Ø100, Stroke 50, G 1/8](/web/image/product.template/174067/image_128/%5B106120%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98100%2C%20Stroke%2050%2C%20G%201-8?unique=05823ae)
|
Type number: 7.DMA.100050 |
216.77 € | |
![[106113] RIEGLER Compact cylinder, double-acting, Piston Ø 100, Stroke 5, G 1/8](/web/image/product.template/174060/image_128/%5B106113%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%205%2C%20G%201-8?unique=14e7d36)
|
Type number: 7.DMA.100005 |
204.88 € | |
![[106121] RIEGLER Compact cylinder, double-acting, Piston Ø100, Stroke 60, G 1/8](/web/image/product.template/174068/image_128/%5B106121%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98100%2C%20Stroke%2060%2C%20G%201-8?unique=e3e3fb7)
|
Type number: 7.DMA.100060 |
220.03 € | |
![[106122] RIEGLER Compact cylinder, double-acting, Piston Ø100, Stroke 80, G 1/8](/web/image/product.template/174069/image_128/%5B106122%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98100%2C%20Stroke%2080%2C%20G%201-8?unique=f2b5ed0)
|
Type number: 7.DMA.100080 |
229.71 € | |
![[106064] RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 10, G 1/8](/web/image/product.template/174011/image_128/%5B106064%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2010%2C%20G%201-8?unique=840eb3b)
|
Type number: 7.DMA.32010 |
63.83 € | |
![[106065] RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 15, G 1/8](/web/image/product.template/174012/image_128/%5B106065%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2015%2C%20G%201-8?unique=a99c342)
|
Type number: 7.DMA.32015 |
65.21 € | |
![[106066] RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 20, G 1/8](/web/image/product.template/174013/image_128/%5B106066%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2020%2C%20G%201-8?unique=47d34cc)
|
Type number: 7.DMA.32020 |
64.80 € | |
![[106067] RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 25, G 1/8](/web/image/product.template/174014/image_128/%5B106067%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2025%2C%20G%201-8?unique=bb98d72)
|
Type number: 7.DMA.32025 |
66.18 € | |
![[106068] RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 30, G 1/8](/web/image/product.template/174015/image_128/%5B106068%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2030%2C%20G%201-8?unique=b609ef1)
|
Type number: 7.DMA.32030 |
66.68 € | |
![[106069] RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 40, G 1/8](/web/image/product.template/174016/image_128/%5B106069%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2040%2C%20G%201-8?unique=b8bf242)
|
Type number: 7.DMA.32040 |
67.65 € | |
![[106070] RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 50, G 1/8](/web/image/product.template/174017/image_128/%5B106070%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2050%2C%20G%201-8?unique=268ed9e)
|
Type number: 7.DMA.32050 |
68.64 € | |
![[106063] RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 5, G 1/8](/web/image/product.template/174010/image_128/%5B106063%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%205%2C%20G%201-8?unique=bf7a0ee)
|
Type number: 7.DMA.32005 |
64.21 € | |
![[106071] RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 60, G 1/8](/web/image/product.template/174018/image_128/%5B106071%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2060%2C%20G%201-8?unique=57a04f7)
|
Type number: 7.DMA.32060 |
68.65 € | |
![[106072] RIEGLER Compact cylinder, double-acting, Piston Ø 32, Stroke 80, G 1/8](/web/image/product.template/174019/image_128/%5B106072%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2080%2C%20G%201-8?unique=a9c644e)
|
Type number: 7.DMA.32080 |
70.61 € | |
![[106074] RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 10, G 1/8](/web/image/product.template/174021/image_128/%5B106074%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2010%2C%20G%201-8?unique=8726ce8)
|
Type number: 7.DMA.40010 |
69.81 € | |
![[106075] RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 15, G 1/8](/web/image/product.template/174022/image_128/%5B106075%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2015%2C%20G%201-8?unique=96f277e)
|
Type number: 7.DMA.40015 |
71.35 € | |
![[106076] RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 20, G 1/8](/web/image/product.template/174023/image_128/%5B106076%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2020%2C%20G%201-8?unique=7ef1389)
|
Type number: 7.DMA.40020 |
71.90 € | |
![[106077] RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 25, G 1/8](/web/image/product.template/174024/image_128/%5B106077%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2025%2C%20G%201-8?unique=0ec5024)
|
Type number: 7.DMA.40025 |
71.48 € | |
![[106078] RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 30, G 1/8](/web/image/product.template/174025/image_128/%5B106078%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2030%2C%20G%201-8?unique=ddc12e2)
|
Type number: 7.DMA.40030 |
73.03 € | |
![[106079] RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 40, G 1/8](/web/image/product.template/174026/image_128/%5B106079%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2040%2C%20G%201-8?unique=bcccab2)
|
Type number: 7.DMA.40040 |
74.16 € | |
![[106080] RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 50, G 1/8](/web/image/product.template/174027/image_128/%5B106080%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2050%2C%20G%201-8?unique=6059202)
|
Type number: 7.DMA.40050 |
74.26 € | |
![[106073] RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 5, G 1/8](/web/image/product.template/174020/image_128/%5B106073%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%205%2C%20G%201-8?unique=f100cd5)
|
Type number: 7.DMA.40005 |
70.22 € | |
![[106081] RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 60, G 1/8](/web/image/product.template/174028/image_128/%5B106081%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2060%2C%20G%201-8?unique=ca290ed)
|
Type number: 7.DMA.40060 |
76.41 € | |
![[106082] RIEGLER Compact cylinder, double-acting, Piston Ø 40, Stroke 80, G 1/8](/web/image/product.template/174029/image_128/%5B106082%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2080%2C%20G%201-8?unique=ee003ba)
|
Type number: 7.DMA.40080 |
77.62 € | |
![[106084] RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 10, G 1/8](/web/image/product.template/174031/image_128/%5B106084%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2010%2C%20G%201-8?unique=93d23fe)
|
Type number: 7.DMA.50010 |
77.20 € | |
![[106085] RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 15, G 1/8](/web/image/product.template/174032/image_128/%5B106085%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2015%2C%20G%201-8?unique=3a402d8)
|
Type number: 7.DMA.50015 |
77.91 € | |
![[106086] RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 20, G 1/8](/web/image/product.template/174033/image_128/%5B106086%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2020%2C%20G%201-8?unique=663945e)
|
Type number: 7.DMA.50020 |
78.64 € | |
![[106087] RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 25, G 1/8](/web/image/product.template/174034/image_128/%5B106087%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2025%2C%20G%201-8?unique=c3a16eb)
|
Type number: 7.DMA.50025 |
79.38 € | |
![[106088] RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 30, G 1/8](/web/image/product.template/174035/image_128/%5B106088%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2030%2C%20G%201-8?unique=ac37c09)
|
Type number: 7.DMA.50030 |
81.21 € | |
![[106089] RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 40, G 1/8](/web/image/product.template/174036/image_128/%5B106089%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2040%2C%20G%201-8?unique=fa7c56b)
|
Type number: 7.DMA.50040 |
82.67 € | |
![[106083] RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 5, G 1/8](/web/image/product.template/174030/image_128/%5B106083%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%205%2C%20G%201-8?unique=642a1d3)
|
Type number: 7.DMA.50005 |
76.46 € | |
![[106091] RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 60, G 1/8](/web/image/product.template/174038/image_128/%5B106091%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2060%2C%20G%201-8?unique=a14eeec)
|
Type number: 7.DMA.50060 |
84.44 € | |
![[106092] RIEGLER Compact cylinder, double-acting, Piston Ø 50, Stroke 80, G 1/8](/web/image/product.template/174039/image_128/%5B106092%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2080%2C%20G%201-8?unique=6afc55a)
|
Type number: 7.DMA.50080 |
87.37 € | |
![[106094] RIEGLER Compact cylinder, double-acting, Piston Ø 63, Stroke 10, G 1/8](/web/image/product.template/174041/image_128/%5B106094%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2010%2C%20G%201-8?unique=4da6e3a)
|
Type number: 7.DMA.63010 |
90.12 € | |
![[106095] RIEGLER Compact cylinder, double-acting, Piston Ø 63, Stroke 15, G 1/8](/web/image/product.template/174042/image_128/%5B106095%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2015%2C%20G%201-8?unique=22fe8bd)
|
Type number: 7.DMA.63015 |
89.74 € | |
![[106096] RIEGLER Compact cylinder, double-acting, Piston Ø 63, Stroke 20, G 1/8](/web/image/product.template/174043/image_128/%5B106096%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2020%2C%20G%201-8?unique=1e4c7fa)
|
Type number: 7.DMA.63020 |
91.86 € | |
![[106097] RIEGLER Compact cylinder, double-acting, Piston Ø 63, Stroke 25, G 1/8](/web/image/product.template/174044/image_128/%5B106097%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2025%2C%20G%201-8?unique=ebd1b63)
|
Type number: 7.DMA.63025 |
92.71 € | |
![[106098] RIEGLER Compact cylinder, double-acting, Piston Ø 63, Stroke 30, G 1/8](/web/image/product.template/174045/image_128/%5B106098%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2030%2C%20G%201-8?unique=7feb050)
|
Type number: 7.DMA.63030 |
93.58 € | |
![[106099] RIEGLER Compact cylinder, double-acting, Piston Ø 63, Stroke 40, G 1/8](/web/image/product.template/174046/image_128/%5B106099%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2040%2C%20G%201-8?unique=d854e1c)
|
Type number: 7.DMA.63040 |
95.32 € | |
![[106100] RIEGLER Compact cylinder, double-acting, Piston Ø 63, Stroke 50, G 1/8](/web/image/product.template/174047/image_128/%5B106100%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2050%2C%20G%201-8?unique=d156e66)
|
Type number: 7.DMA.63050 |
97.06 € | |
![[106093] RIEGLER Compact cylinder, double-acting, Piston Ø 63, Stroke 5, G 1/8](/web/image/product.template/174040/image_128/%5B106093%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%205%2C%20G%201-8?unique=1d88aa3)
|
Type number: 7.DMA.63005 |
88.02 € | |
![[106101] RIEGLER Compact cylinder, double-acting, Piston Ø 63, Stroke 60, G 1/8](/web/image/product.template/174048/image_128/%5B106101%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2060%2C%20G%201-8?unique=6e41e82)
|
Type number: 7.DMA.63060 |
97.35 € | |
![[106102] RIEGLER Compact cylinder, double-acting, Piston Ø 63, Stroke 80, G 1/8](/web/image/product.template/174049/image_128/%5B106102%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2080%2C%20G%201-8?unique=79c8e4d)
|
Type number: 7.DMA.63080 |
102.23 € | |
![[106104] RIEGLER Compact cylinder, double-acting, Piston Ø 80, Stroke 10, G 1/8](/web/image/product.template/174051/image_128/%5B106104%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2010%2C%20G%201-8?unique=6fd82c3)
|
Type number: 7.DMA.80010 |
145.99 € | |
![[106105] RIEGLER Compact cylinder, double-acting, Piston Ø 80, Stroke 15, G 1/8](/web/image/product.template/174052/image_128/%5B106105%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2015%2C%20G%201-8?unique=4388cb9)
|
Type number: 7.DMA.80015 |
145.22 € | |
![[106106] RIEGLER Compact cylinder, double-acting, Piston Ø 80, Stroke 20, G 1/8](/web/image/product.template/174053/image_128/%5B106106%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2020%2C%20G%201-8?unique=acd67c6)
|
Type number: 7.DMA.80020 |
148.54 € | |
![[106107] RIEGLER Compact cylinder, double-acting, Piston Ø 80, Stroke 25, G 1/8](/web/image/product.template/174054/image_128/%5B106107%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2025%2C%20G%201-8?unique=4ccad84)
|
Type number: 7.DMA.80025 |
147.70 € | |
![[106108] RIEGLER Compact cylinder, double-acting, Piston Ø 80, Stroke 30, G 1/8](/web/image/product.template/174055/image_128/%5B106108%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2030%2C%20G%201-8?unique=54fad18)
|
Type number: 7.DMA.80030 |
148.96 € | |
![[106109] RIEGLER Compact cylinder, double-acting, Piston Ø 80, Stroke 40, G 1/8](/web/image/product.template/174056/image_128/%5B106109%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2040%2C%20G%201-8?unique=6a9db87)
|
Type number: 7.DMA.80040 |
153.53 € | |
![[106110] RIEGLER Compact cylinder, double-acting, Piston Ø 80, Stroke 50, G 1/8](/web/image/product.template/174057/image_128/%5B106110%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2050%2C%20G%201-8?unique=6067d86)
|
Type number: 7.DMA.80050 |
156.07 € | |
![[106103] RIEGLER Compact cylinder, double-acting, Piston Ø 80, Stroke 5, G 1/8](/web/image/product.template/174050/image_128/%5B106103%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%205%2C%20G%201-8?unique=e79fcf4)
|
Type number: 7.DMA.80005 |
142.73 € | |
![[106111] RIEGLER Compact cylinder, double-acting, Piston Ø 80, Stroke 60, G 1/8](/web/image/product.template/174058/image_128/%5B106111%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2060%2C%20G%201-8?unique=c11bed3)
|
Type number: 7.DMA.80060 |
158.64 € | |
![[106112] RIEGLER Compact cylinder, double-acting, Piston Ø 80, Stroke 80, G 1/8](/web/image/product.template/174059/image_128/%5B106112%5D%20RIEGLER%20Compact%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2080%2C%20G%201-8?unique=54f88f0)
|
Type number: 7.DMA.80080 |
163.68 € | |
![[106046] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 20, Stroke 10, M5](/web/image/product.template/173993/image_128/%5B106046%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2C%20M5?unique=8a2d2d0)
|
Type number: 7.DMA.20010 |
56.70 € | |
![[106047] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 20, Stroke 15, M5](/web/image/product.template/173994/image_128/%5B106047%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2015%2C%20M5?unique=42675e3)
|
Type number: 7.DMA.20015 |
56.38 € | |
![[106048] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 20, Stroke 20, M5](/web/image/product.template/173995/image_128/%5B106048%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2020%2C%20M5?unique=0cb1e96)
|
Type number: 7.DMA.20020 |
56.79 € | |
![[106049] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 20, Stroke 25, M5](/web/image/product.template/173996/image_128/%5B106049%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2C%20M5?unique=6b6e18f)
|
Type number: 7.DMA.20025 |
57.99 € | |
![[106050] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 20, Stroke 30, M5](/web/image/product.template/173997/image_128/%5B106050%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2030%2C%20M5?unique=f8c0728)
|
Type number: 7.DMA.20030 |
57.63 € | |
![[106051] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 20, Stroke 40, M5](/web/image/product.template/173998/image_128/%5B106051%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2040%2C%20M5?unique=e6b0216)
|
Type number: 7.DMA.20040 |
59.25 € | |
![[106052] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 20, Stroke 50, M5](/web/image/product.template/173999/image_128/%5B106052%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2050%2C%20M5?unique=c75d917)
|
Type number: 7.DMA.20050 |
59.32 € | |
![[106045] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 20, Stroke 5, M5](/web/image/product.template/173992/image_128/%5B106045%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%205%2C%20M5?unique=4fc81cb)
|
Type number: 7.DMA.20005 |
55.53 € | |
![[106053] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 20, Stroke 60, M5](/web/image/product.template/174000/image_128/%5B106053%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2060%2C%20M5?unique=52f5ce5)
|
Type number: 7.DMA.20060 |
60.96 € | |
![[106055] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 25, Stroke 10, M5](/web/image/product.template/174002/image_128/%5B106055%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2010%2C%20M5?unique=cc82bbb)
|
Type number: 7.DMA.25010 |
58.70 € | |
![[106056] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 25, Stroke 15, M5](/web/image/product.template/174003/image_128/%5B106056%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2015%2C%20M5?unique=c953235)
|
Type number: 7.DMA.25015 |
59.15 € | |
![[106057] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 25, Stroke 20, M5](/web/image/product.template/174004/image_128/%5B106057%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2020%2C%20M5?unique=8978560)
|
Type number: 7.DMA.25020 |
60.44 € | |
![[106058] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 25, Stroke 25, M5](/web/image/product.template/174005/image_128/%5B106058%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2025%2C%20M5?unique=df6ce44)
|
Type number: 7.DMA.25025 |
60.05 € | |
![[106059] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 25, Stroke 30, M5](/web/image/product.template/174006/image_128/%5B106059%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2030%2C%20M5?unique=ea30fe4)
|
Type number: 7.DMA.25030 |
60.49 € | |
![[106060] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 25, Stroke 40, M5](/web/image/product.template/174007/image_128/%5B106060%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2040%2C%20M5?unique=a54d8ec)
|
Type number: 7.DMA.25040 |
62.21 € | |
![[106061] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 25, Stroke 50, M5](/web/image/product.template/174008/image_128/%5B106061%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2050%2C%20M5?unique=54493db)
|
Type number: 7.DMA.25050 |
62.23 € | |
![[106054] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 25, Stroke 5, M5](/web/image/product.template/174001/image_128/%5B106054%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%205%2C%20M5?unique=b65ac98)
|
Type number: 7.DMA.25005 |
59.12 € | |
![[106062] RIEGLER Compact cylinder LINER, double-acting, Piston Ø 25, Stroke 60, M5](/web/image/product.template/174009/image_128/%5B106062%5D%20RIEGLER%20Compact%20cylinder%20LINER%2C%20double-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%2060%2C%20M5?unique=ab54262)
|
Type number: 7.DMA.25060 |
63.08 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

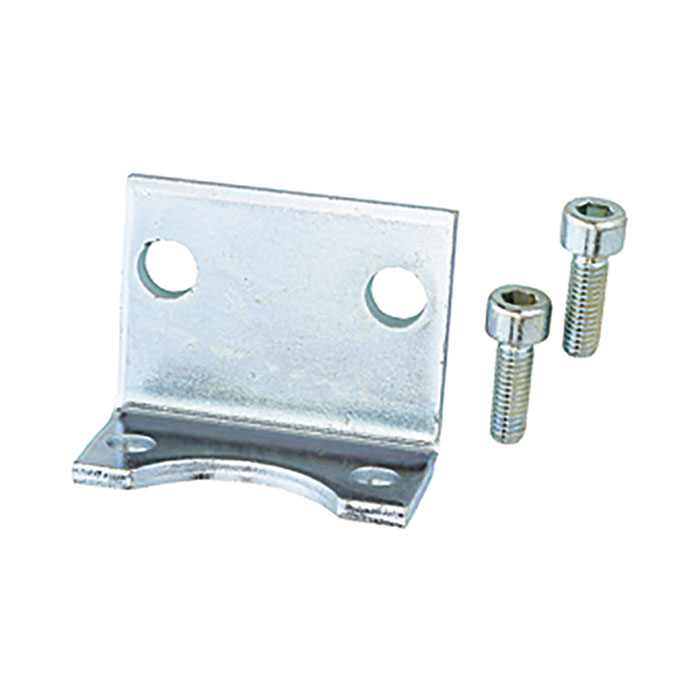

![[106127] RIEGLER Foot fastening, ISO 15552, for compact/standard cyl., Piston Ø 50](/web/image/product.template/174074/image_128/%5B106127%5D%20RIEGLER%20Foot%20fastening%2C%20ISO%2015552%2C%20for%20compact-standard%20cyl.%2C%20Piston%20%C3%98%2050?unique=e3ac522)
|
Type number: 450.13-M |
10.19 € | |

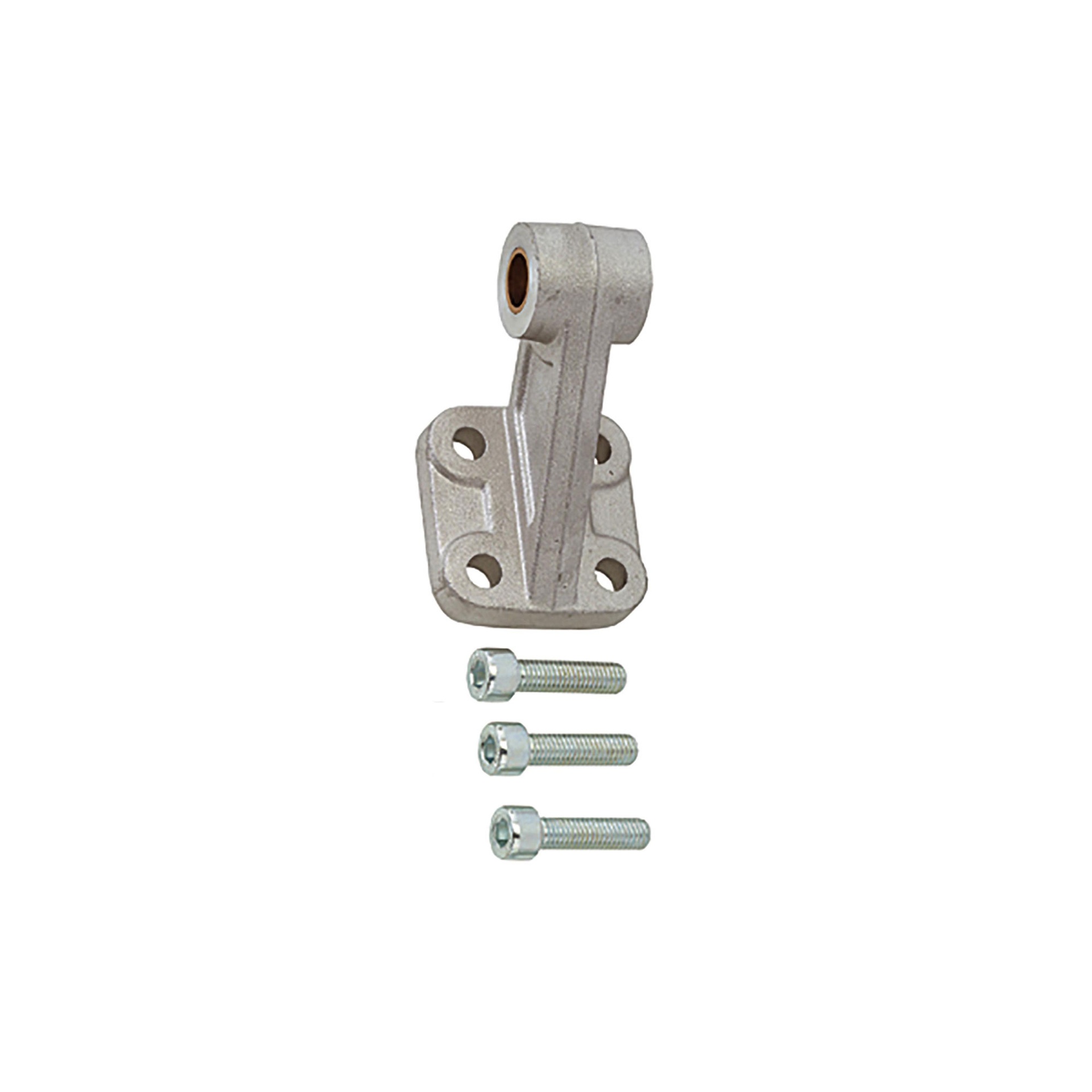

![[106139] RIEGLER Counter bearing CETOP, for ISO15552, ISO21287, Ø50, with 4 screws](/web/image/product.template/174086/image_128/%5B106139%5D%20RIEGLER%20Counter%20bearing%20CETOP%2C%20for%20ISO15552%2C%20ISO21287%2C%20%C3%9850%2C%20with%204%20screws?unique=773cc82)
|
Type number: 437.25-M |
27.43 € | |
![[106161] RIEGLER Front or floor flange, ISO 15552, ISO 21287, Piston Ø 50](/web/image/product.template/174108/image_128/%5B106161%5D%20RIEGLER%20Front%20or%20floor%20flange%2C%20ISO%2015552%2C%20ISO%2021287%2C%20Piston%20%C3%98%2050?unique=4b7b894)
|
Type number: 450.030-M |
16.31 € | |
![[106166] RIEGLER Piston rod nut, for compact/standard cylinder, Piston Ø 50-63/40](/web/image/product.template/174113/image_128/%5B106166%5D%20RIEGLER%20Piston%20rod%20nut%2C%20for%20compact-standard%20cylinder%2C%20Piston%20%C3%98%2050-63-40?unique=4de05a5)
|
Type number: 435.82-M |
1.82 € | |

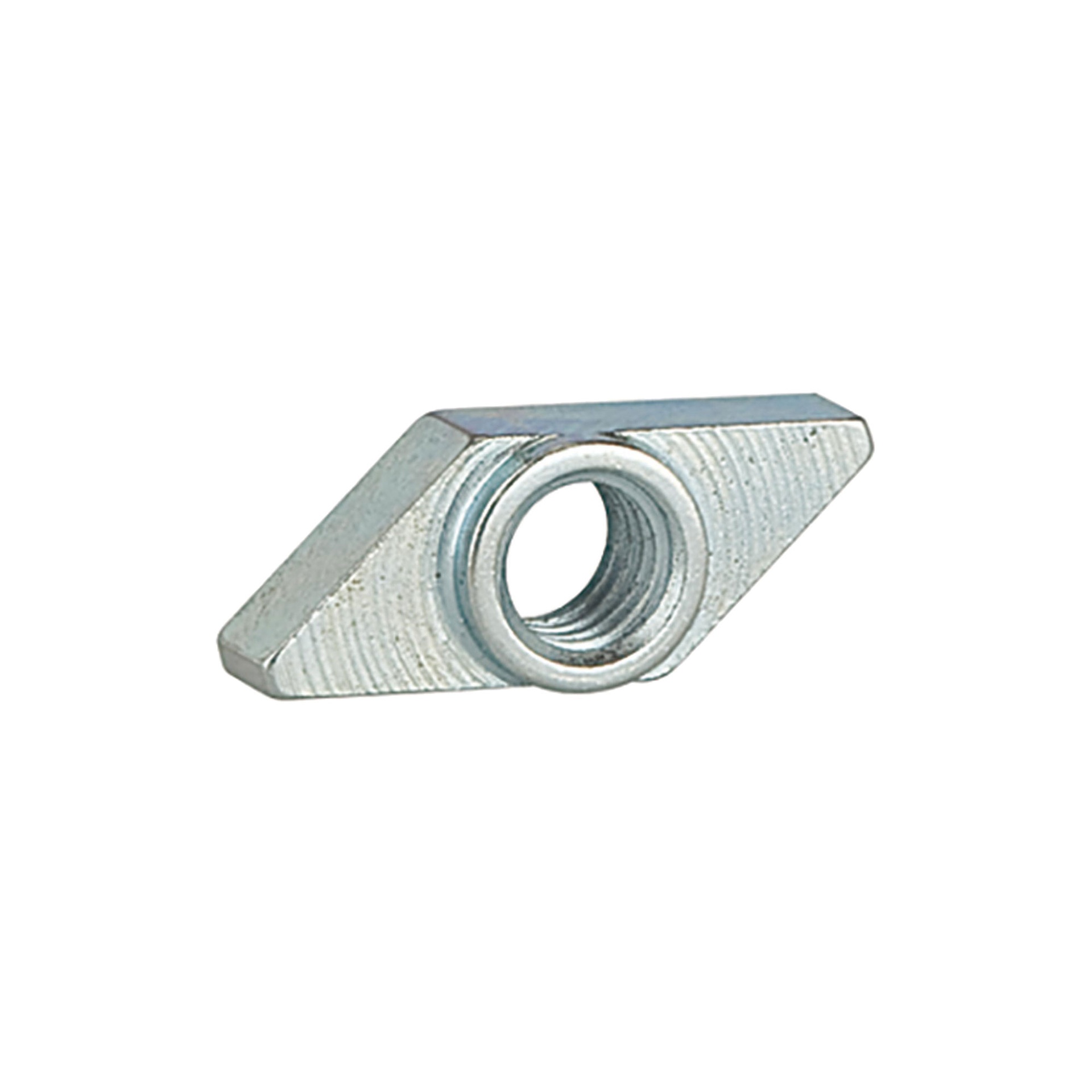

![[106168] RIEGLER Threaded plate for the T-nut, for compact/standard cylinder, M4](/web/image/product.template/174115/image_128/%5B106168%5D%20RIEGLER%20Threaded%20plate%20for%20the%20T-nut%2C%20for%20compact-standard%20cylinder%2C%20M4?unique=477e92e)
|
Type number: 235.11-M |
5.45 € | |

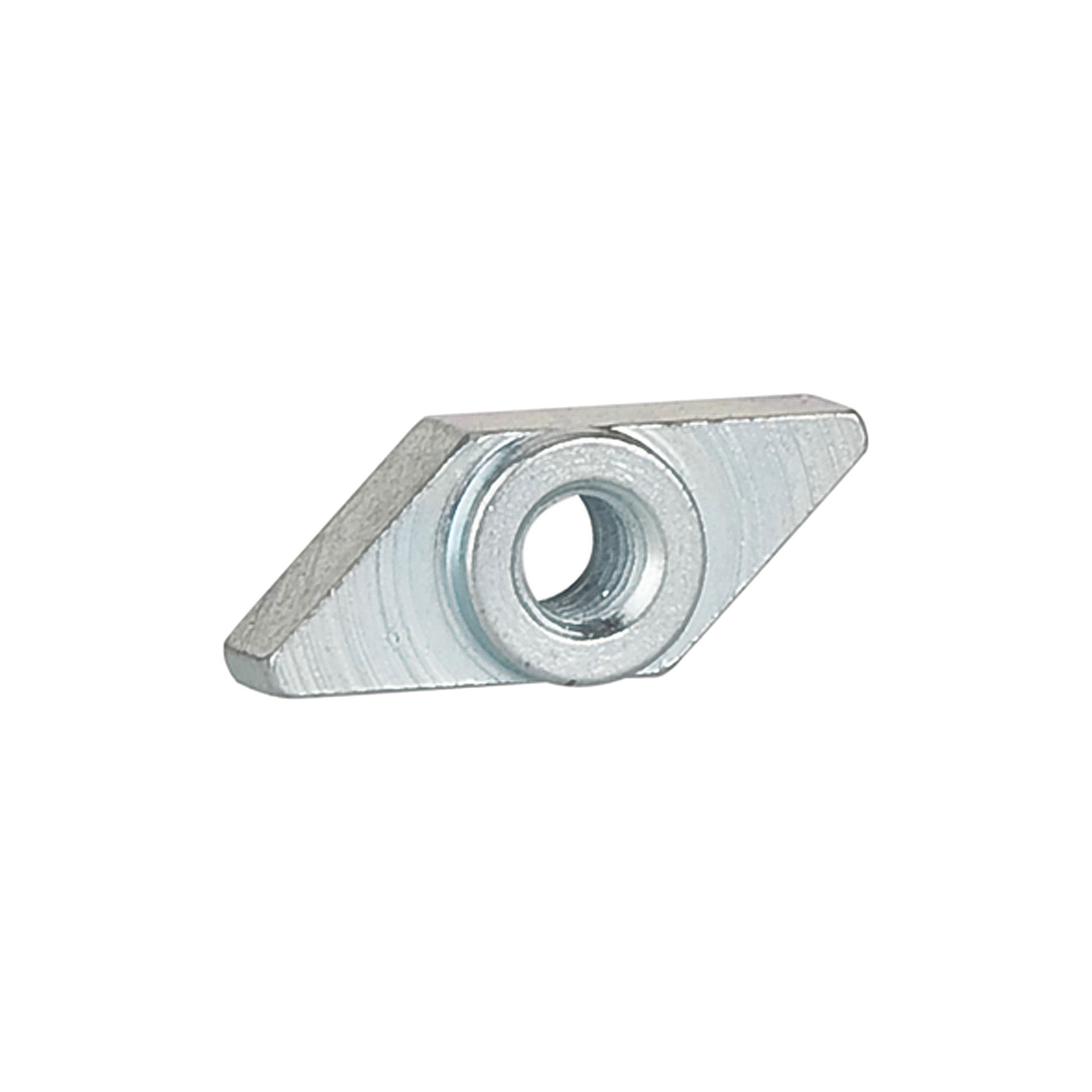

![[106169] RIEGLER Threaded plate for the T-nut, for compact/standard cylinder, M3](/web/image/product.template/174116/image_128/%5B106169%5D%20RIEGLER%20Threaded%20plate%20for%20the%20T-nut%2C%20for%20compact-standard%20cylinder%2C%20M3?unique=7f5ae60)
|
Type number: 235.12-M |
5.45 € | |
![[125522] RIEGLER Threaded plate for the T-nut, for compact/standard cylinder M3/M4](/web/image/product.template/202499/image_128/%5B125522%5D%20RIEGLER%20Threaded%20plate%20for%20the%20T-nut%2C%20for%20compact-standard%20cylinder%20M3-M4?unique=e918c9d)
|
Type number: 235.05-M |
5.95 € | |

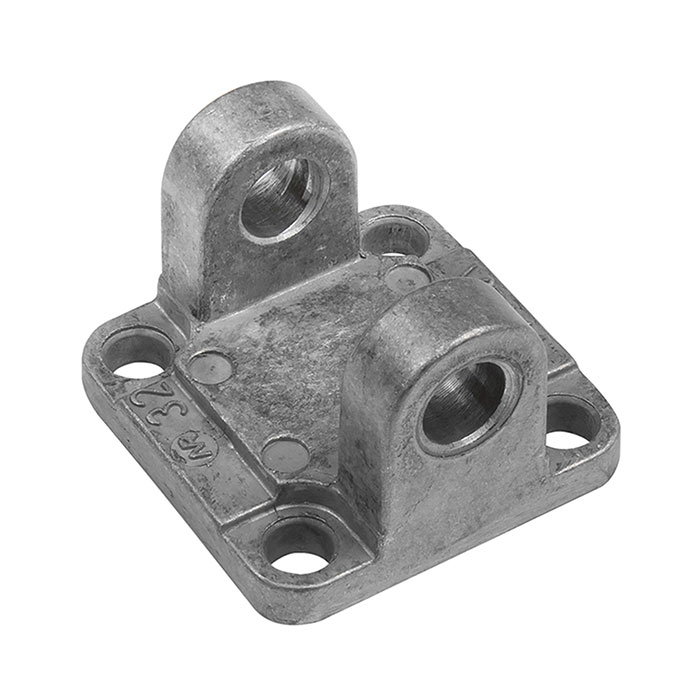

![[156660] RIEGLER Female hinge model, ISO 15552, ISO 21287, Ø50](/web/image/product.template/213396/image_128/%5B156660%5D%20RIEGLER%20Female%20hinge%20model%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9850?unique=212e313)
|
Typennummer: 453.003 |
17.65 € | |

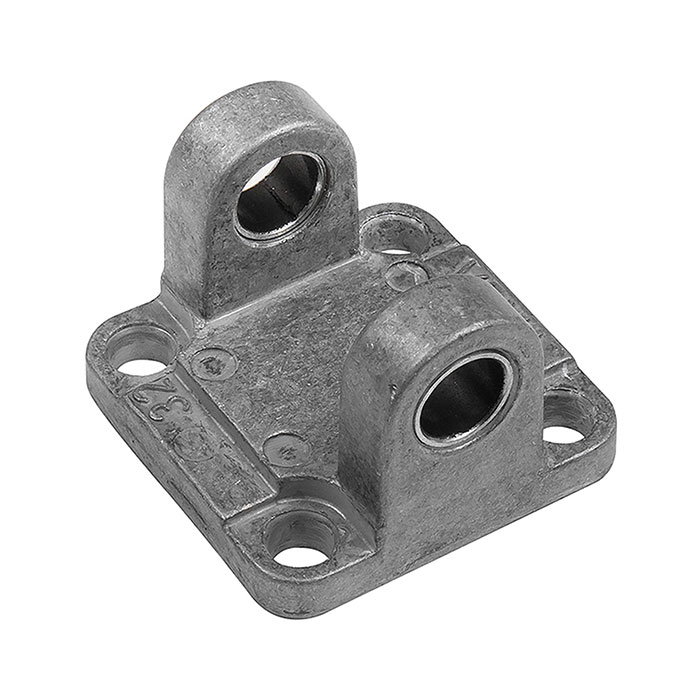

![[156671] RIEGLER Female hinge model with bushes, ISO 15552, ISO 21287, Ø50](/web/image/product.template/213407/image_128/%5B156671%5D%20RIEGLER%20Female%20hinge%20model%20with%20bushes%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9850?unique=3293bcd)
|
Typennummer: 453.014 |
20.27 € | |

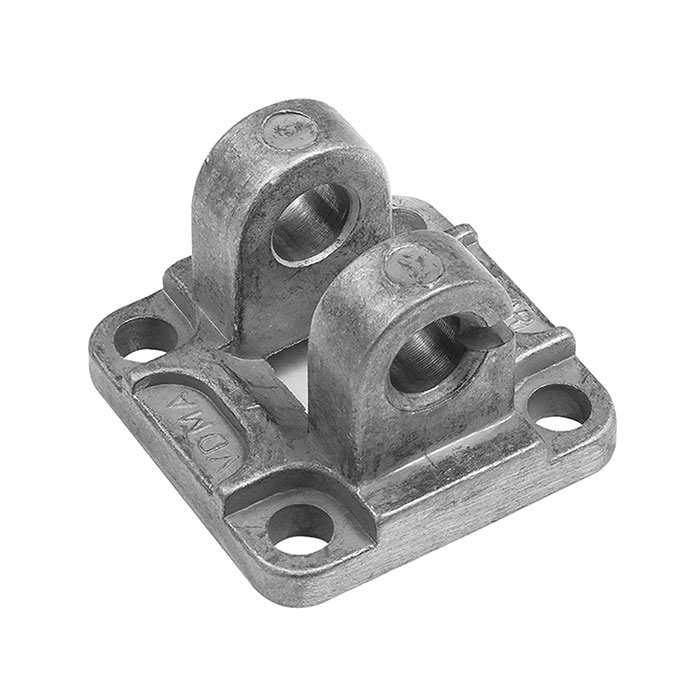

![[156682] RIEGLER Female hinge model for articulated male hinge model, Ø50](/web/image/product.template/213418/image_128/%5B156682%5D%20RIEGLER%20Female%20hinge%20model%20for%20articulated%20male%20hinge%20model%2C%20%C3%9850?unique=a8cfc9d)
|
Typennummer: 453.025 |
19.31 € | |

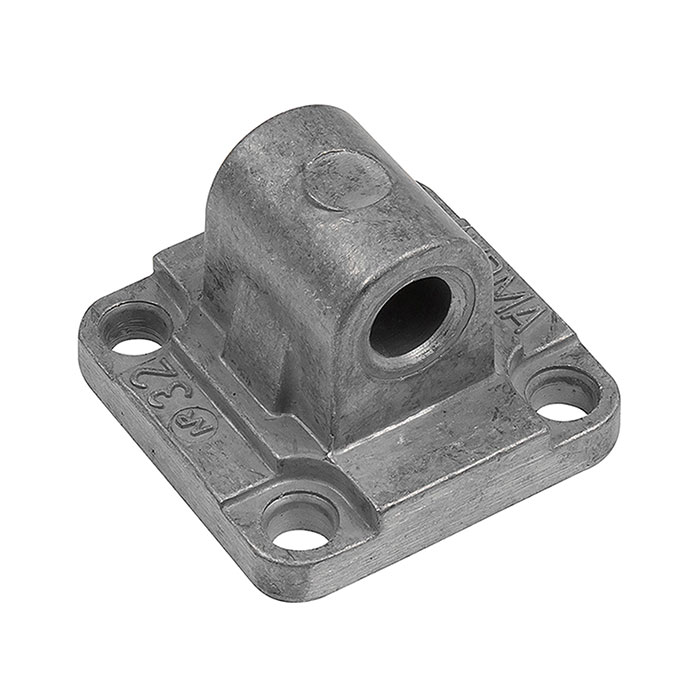

![[156703] RIEGLER Male hinge model, ISO 15552, ISO 21287, Ø50](/web/image/product.template/214444/image_128/%5B156703%5D%20RIEGLER%20Male%20hinge%20model%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9850?unique=aafe6ff)
|
Typennummer: 453.046 |
15.71 € | |

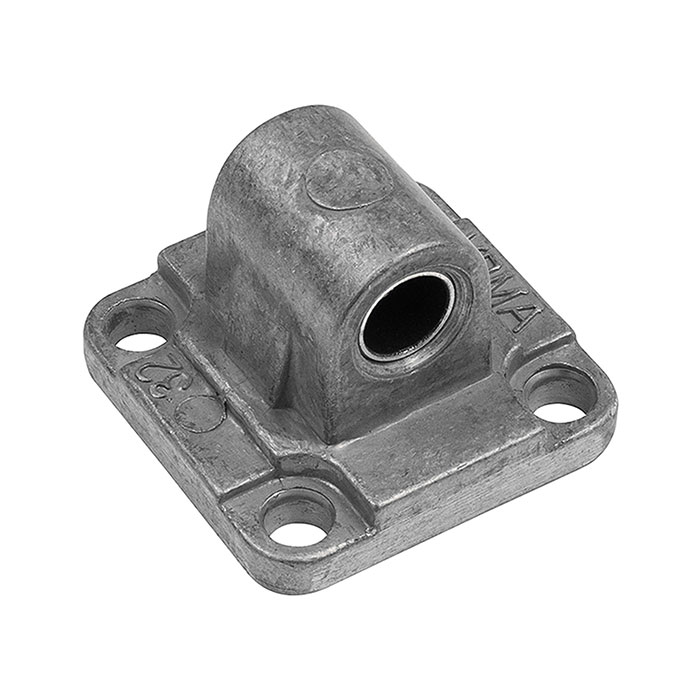

![[156714] RIEGLER Male hinge model with bushes, ISO 15552, ISO 21287, Ø50](/web/image/product.template/214455/image_128/%5B156714%5D%20RIEGLER%20Male%20hinge%20model%20with%20bushes%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9850?unique=1807c3f)
|
Typennummer: 453.057 |
18.30 € | |

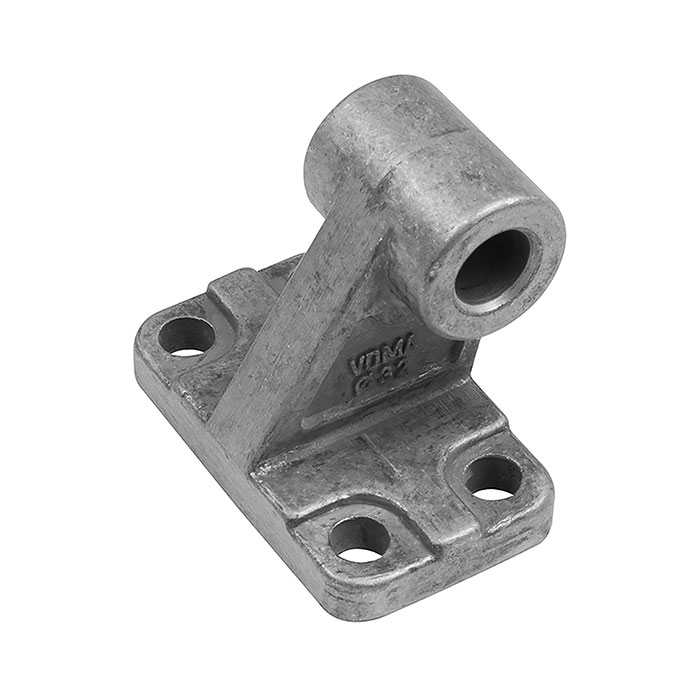

![[156725] RIEGLER Counter-hinge model CETOP RP107P, ISO 15552, ISO 21287, Ø50](/web/image/product.template/214466/image_128/%5B156725%5D%20RIEGLER%20Counter-hinge%20model%20CETOP%20RP107P%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9850?unique=c76d647)
|
Typennummer: 453.068 |
16.16 € | |

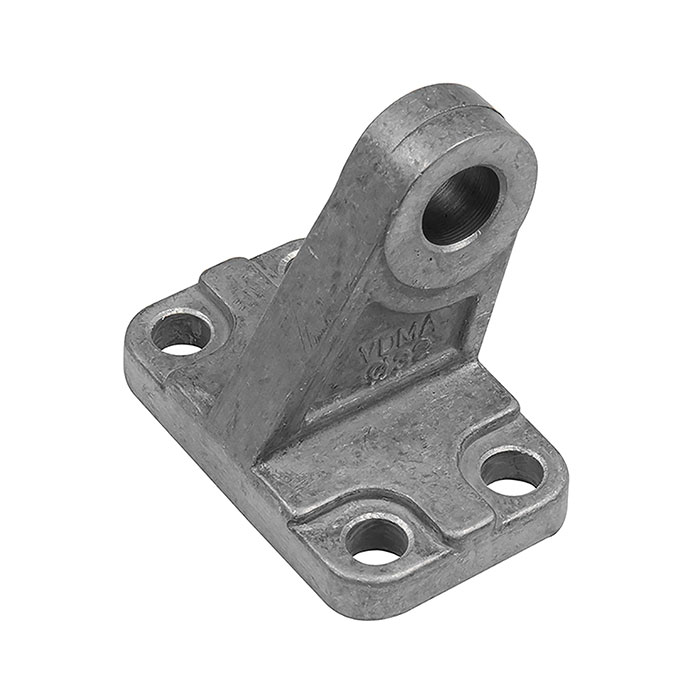

![[156734] RIEGLER Count-hinge mod., round cyl., ISO15552/21287, f.fork mod.DIN71752](/web/image/product.template/214475/image_128/%5B156734%5D%20RIEGLER%20Count-hinge%20mod.%2C%20round%20cyl.%2C%20ISO15552-21287%2C%20f.fork%20mod.DIN71752?unique=8a706ea)
|
Typennummer: 453.077 |
20.34 € | |

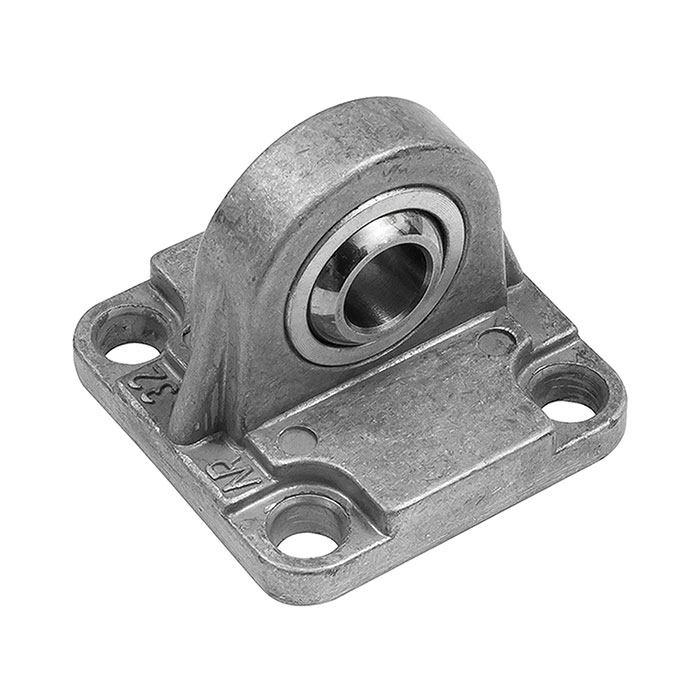

![[156745] RIEGLER Articulated male hinge model, ISO 15552, ISO 21287, Ø50](/web/image/product.template/214485/image_128/%5B156745%5D%20RIEGLER%20Articulated%20male%20hinge%20model%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9850?unique=dbff385)
|
Typennummer: 453.088 |
41.66 € | |

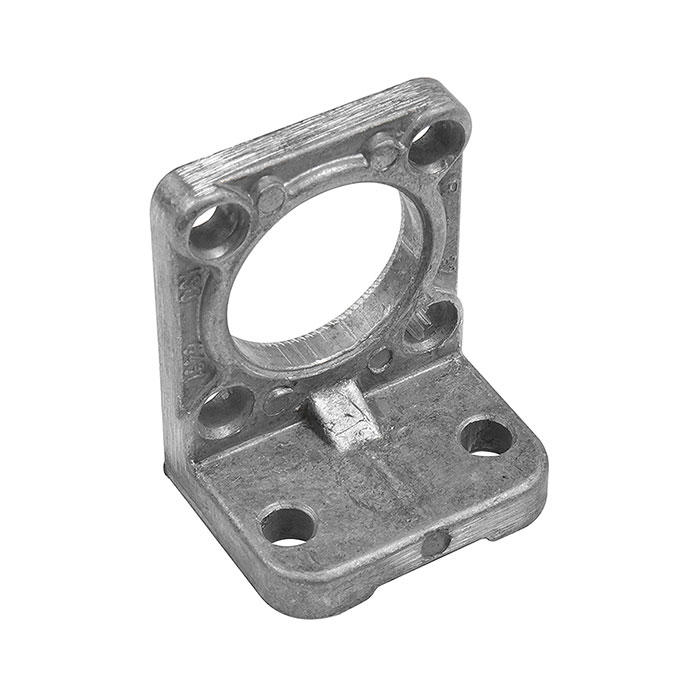

![[156756] RIEGLER Angle flange, ISO 15552, ISO 21287, Ø50](/web/image/product.template/214496/image_128/%5B156756%5D%20RIEGLER%20Angle%20flange%2C%20ISO%2015552%2C%20ISO%2021287%2C%20%C3%9850?unique=6945045)
|
Typennummer: 453.099 |
13.66 € | |

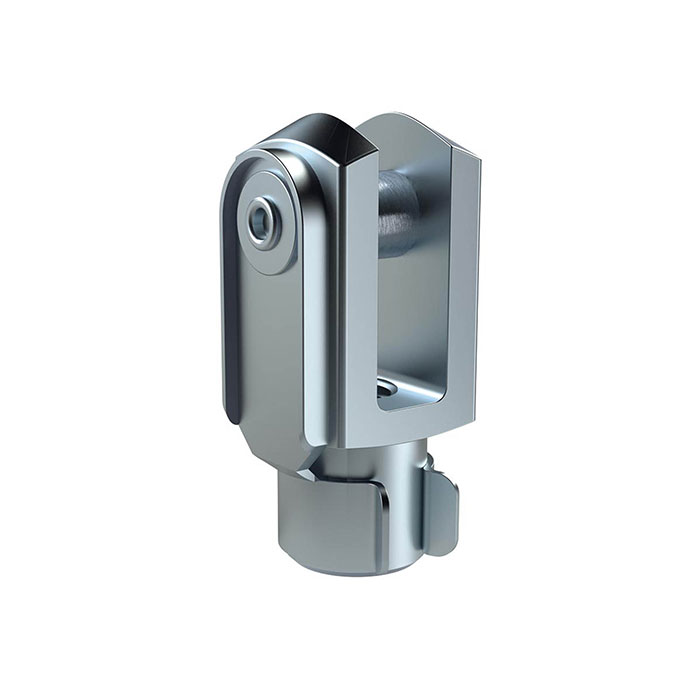

![[179922] RIEGLER Rod clevis AP2 ISO 8140, bore 12, M12x1.25](/web/image/product.template/216434/image_128/%5B179922%5D%20RIEGLER%20Rod%20clevis%20AP2%20ISO%208140%2C%20bore%2012%2C%20M12x1.25?unique=77fa983)
|
Typennummer: GAKAP2M12X125 |
7.08 € | |

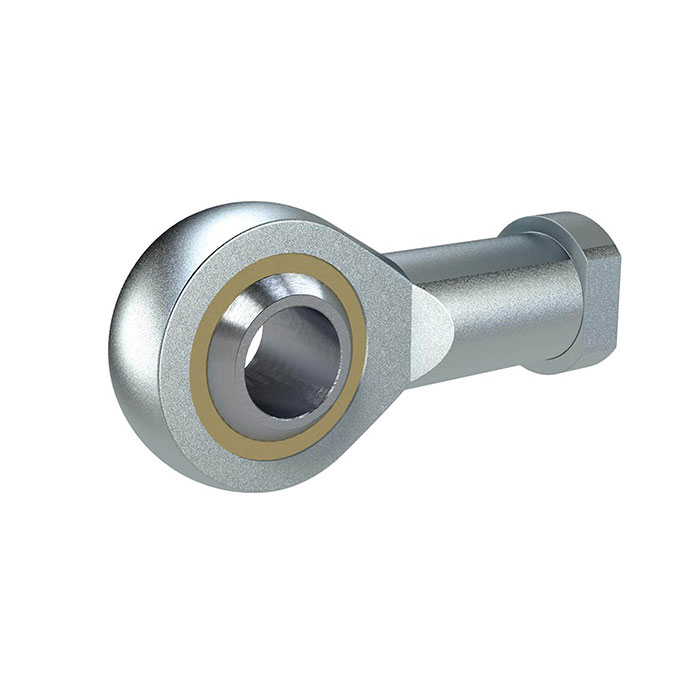

![[179933] RIEGLER Rod eye AP6 ISO 8139, bore 12, M12x1.25](/web/image/product.template/216445/image_128/%5B179933%5D%20RIEGLER%20Rod%20eye%20AP6%20ISO%208139%2C%20bore%2012%2C%20M12x1.25?unique=3ef3195)
|
Typennummer: GEKAP6M12X125 |
24.37 € | |

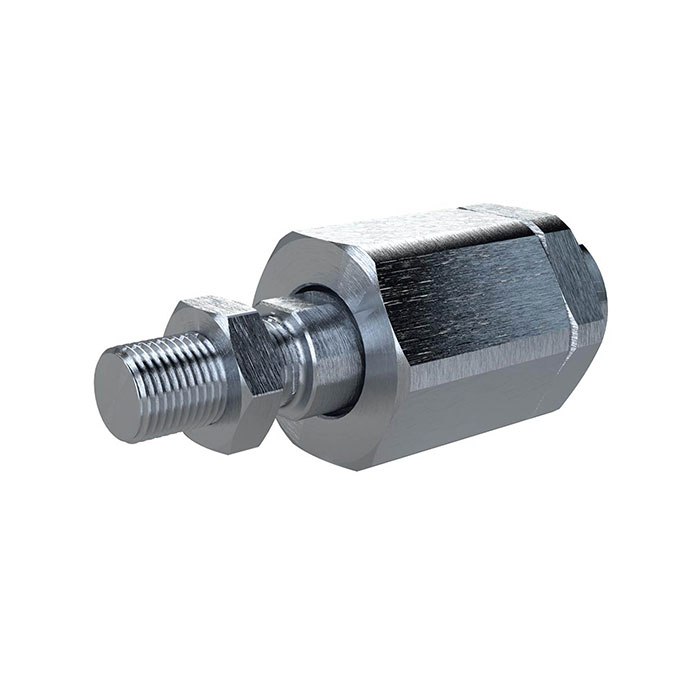

![[179944] RIEGLER Self-aligning rod coupler, for piston rod thread M12x1.25](/web/image/product.template/216456/image_128/%5B179944%5D%20RIEGLER%20Self-aligning%20rod%20coupler%2C%20for%20piston%20rod%20thread%20M12x1.25?unique=2328f9e)
|
Typennummer: AKM12X125 |
37.28 € | |
![[194356] RIEGLER REED sensor for T-slots and rectangular slots,2-wire, 2.5 m cable](/web/image/product.template/216648/image_128/%5B194356%5D%20RIEGLER%20REED%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C2-wire%2C%202.5%20m%20cable?unique=1aaf9b8)
|
Typennummer: 235.03-M-1 |
20.19 € | |
![[194357] RIEGLER REED sensor for T-slots and rectangular slots, 2-wire, M8, 300mm](/web/image/product.template/216649/image_128/%5B194357%5D%20RIEGLER%20REED%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C%202-wire%2C%20M8%2C%20300mm?unique=d9942e7)
|
Typennummer: 235.04-M-1 |
28.68 € | |
![[194358] RIEGLER HALL sensor for T-slots and rectangular slots,3-wire, 2.5 m cable](/web/image/product.template/216650/image_128/%5B194358%5D%20RIEGLER%20HALL%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C3-wire%2C%202.5%20m%20cable?unique=8457e26)
|
Typennummer: 235.06-M-1 |
27.41 € | |

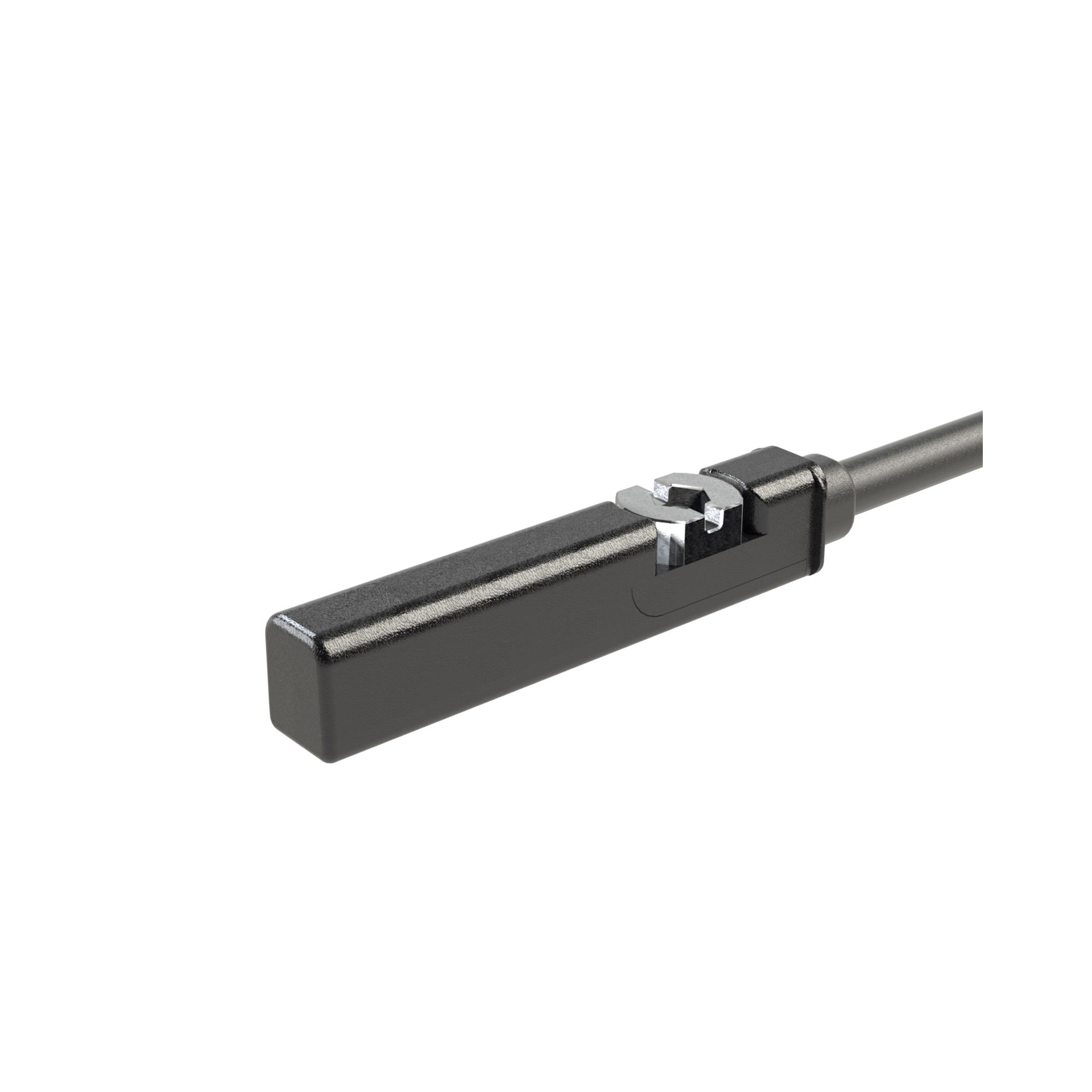

![[194359] RIEGLER HALL sensor for T-slots and rectangular slots, 3-wire, M8, 300mm](/web/image/product.template/216651/image_128/%5B194359%5D%20RIEGLER%20HALL%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C%203-wire%2C%20M8%2C%20300mm?unique=aca7913)
|
Typennummer: 235.07-M-1 |
36.66 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

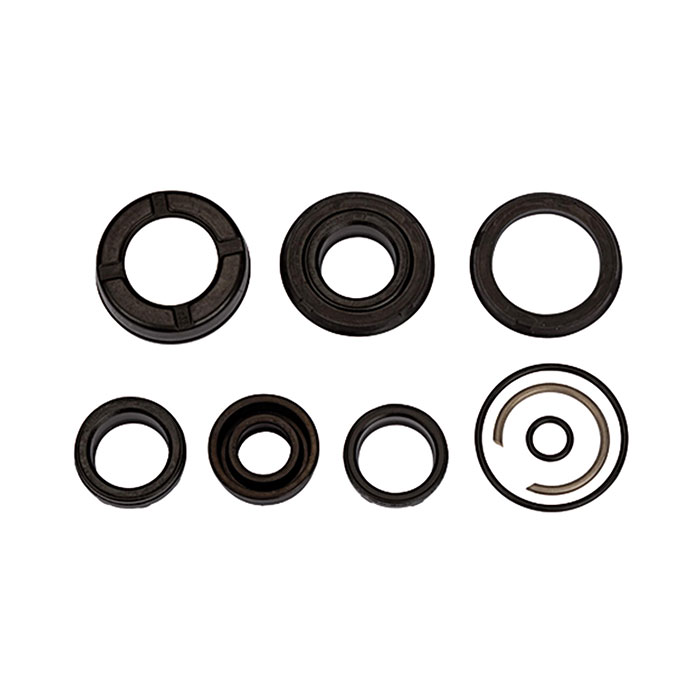

![[106174] RIEGLER Seal set (wear part), for compact cylinder, Piston Ø 50, PU seal](/web/image/product.template/174121/image_128/%5B106174%5D%20RIEGLER%20Seal%20set%20%28wear%20part%29%2C%20for%20compact%20cylinder%2C%20Piston%20%C3%98%2050%2C%20PU%20seal?unique=384ab8d)
|
Type number: 235.19-M |
10.33 € | |
