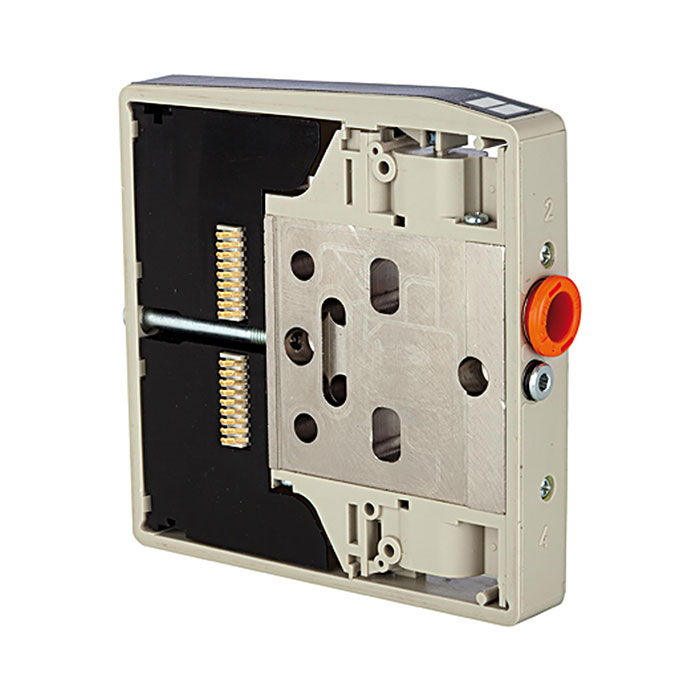

RIEGLER Intermediate plate for valve terminal HDM, separated exhaust
Type number: 20
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Intermediate plate for valve terminal HDM with separated exhaust (for multi-pressure systems, 2+4 are separately exhausted)
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Power consumption | 0.6 W per actuation |
| Protection class | IP 65 |
| Material | Aluminum |
| Control | up to 16 actuations (e.g. 16 spring-return valves) |
| Manual override | resting |
| Function | with separate exhaust air (2+4 are vented separately) |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106696] RIEGLER Intermediate plate for valve terminal HDM, separated air intake](/web/image/product.template/175753/image_128/%5B106696%5D%20RIEGLER%20Intermediate%20plate%20for%20valve%20terminal%20HDM%2C%20separated%20air%20intake?unique=994180c)
|
Type number: 7 |
63.88 € | |
![[106695] RIEGLER Intermediate plate for valve terminal HDM, supply/exhaust air](/web/image/product.template/175752/image_128/%5B106695%5D%20RIEGLER%20Intermediate%20plate%20for%20valve%20terminal%20HDM%2C%20supply-exhaust%20air?unique=02827b9)
|
Type number: 6 |
66.60 € | |
