RIEGLER Intermediate plate for valve terminal HDM, separated air intake
Type number: 7
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Intermediate plate for valve terminal HDM with separated air intake (for multi-pressure systems, 2+4 are separately pressurised)
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Power consumption | 0.6 W per actuation |
| Protection class | IP 65 |
| Material | Aluminum |
| Control | up to 16 actuations (e.g. 16 spring-return valves) |
| Manual override | resting |
| Function | with separate supply air (2+4 are ventilated separately) |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

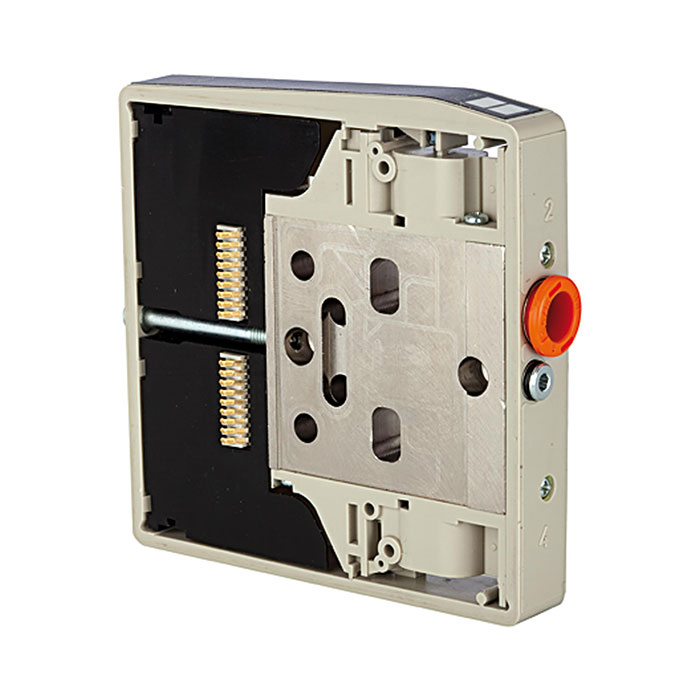

![[106697] RIEGLER Intermediate plate for valve terminal HDM, separated exhaust](/web/image/product.template/175754/image_128/%5B106697%5D%20RIEGLER%20Intermediate%20plate%20for%20valve%20terminal%20HDM%2C%20separated%20exhaust?unique=6d9ca3b)
|
Type number: 20 |
57.83 € | |
![[106695] RIEGLER Intermediate plate for valve terminal HDM, supply/exhaust air](/web/image/product.template/175752/image_128/%5B106695%5D%20RIEGLER%20Intermediate%20plate%20for%20valve%20terminal%20HDM%2C%20supply-exhaust%20air?unique=02827b9)
|
Type number: 6 |
66.60 € | |
