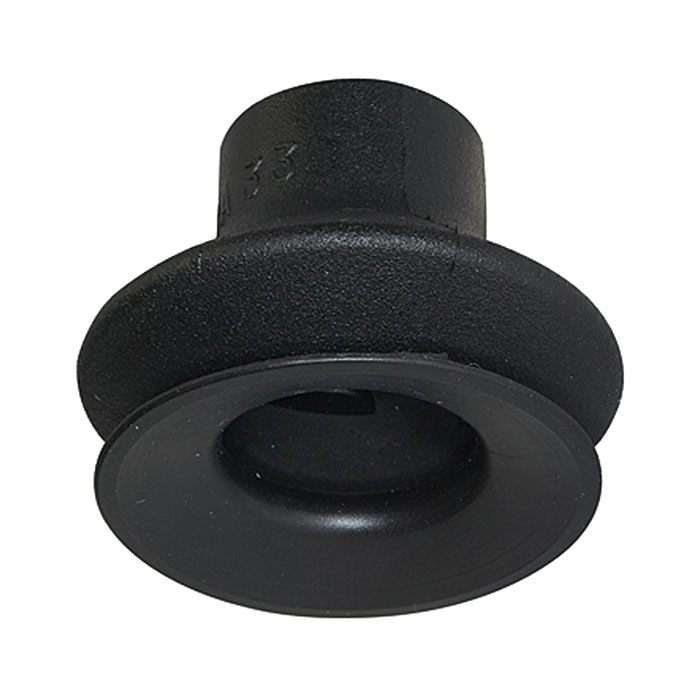

RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø43
Type number: FGA 1543-1
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Bellows suction cup, Round 1.5 folds, Material NBR, »FGA«, ø 43 mm, suitable connection nipple IT G 1/4, ET G 1/4
| Diameter | 43 mm |
| Suitable connection nipple IG | G 1/4 |
| Suitable connection nipple AG | G 1/4 |
| Overall height with nipple IG | 43.0 mm |
| Overall height with nipple AG | 32.0 mm |
| Suction power | 22.8 N |
| Volume | 9.25 cm³ |
| Workpiece radius convex min. | 60 mm |
| Recommended hose Ø | 6 mm |
| Tear-off force | 64.5 N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108490] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø11](/web/image/product.template/192387/image_128/%5B108490%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B811?unique=83953b1)
|
Type number: FGA 1511-1 |
3.95 € | |
![[108491] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø14](/web/image/product.template/192388/image_128/%5B108491%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B814?unique=a69700d)
|
Type number: FGA 1514-1 |
4.14 € | |
![[108492] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø16](/web/image/product.template/192389/image_128/%5B108492%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B816?unique=450d0e5)
|
Type number: FGA 1516-1 |
4.28 € | |
![[108493] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø20](/web/image/product.template/192390/image_128/%5B108493%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B820?unique=a5a2c43)
|
Type number: FGA 1520-1 |
5.30 € | |
![[108494] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø25](/web/image/product.template/192391/image_128/%5B108494%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B825?unique=bb76136)
|
Type number: FGA 1525-1 |
5.38 € | |
![[108495] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø33](/web/image/product.template/192392/image_128/%5B108495%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B833?unique=dc5f8ec)
|
Type number: FGA 1533-1 |
5.45 € | |
![[108497] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø53](/web/image/product.template/192394/image_128/%5B108497%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B853?unique=1701b5e)
|
Type number: FGA 1553-1 |
9.40 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[108509] RIEGLER Connection nipple for bellows suction cup, round, »FGA« Ø32-52](/web/image/product.template/192406/image_128/%5B108509%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB%20%C3%9832-52?unique=29471d2)
|
Type number: 313.014 |
5.27 € | |
![[108512] RIEGLER Connection nipple for bellows suction cup, round, »FGA«](/web/image/product.template/192409/image_128/%5B108512%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB?unique=eae3477)
|
Type number: 314.014 |
5.27 € | |
