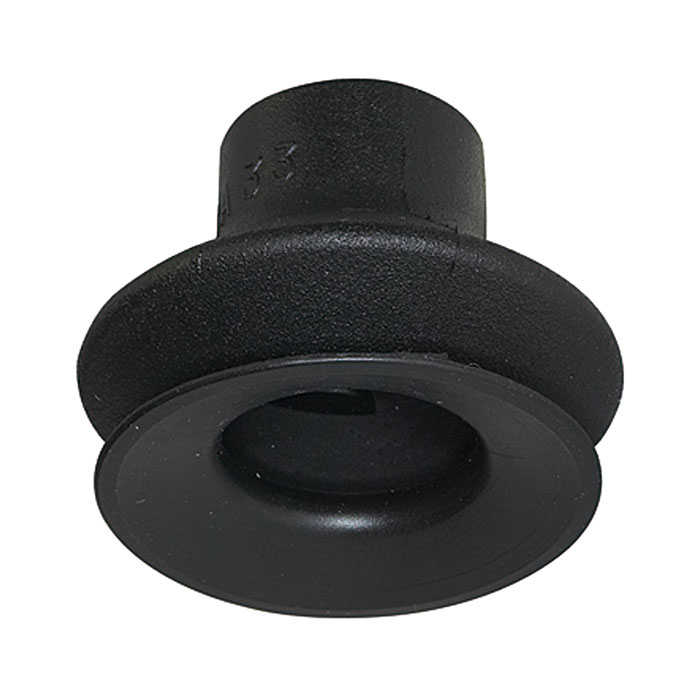

RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø43
Type number: FGA 1543-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bellows suction cups for vacuum technology - Type FGA 1543-1
The RIEGLER bellows suction cup, round 1.5 folds, material NBR, FGA, diameter 43 mm lifts and transports workpieces safely by vacuum. Suction force 22.8 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 43 mm |
| Suitable connection nipple IG | G 1/4 |
| Suitable connection nipple AG | G 1/4 |
| Overall height with nipple IG | 43.0 mm |
| Overall height with nipple AG | 32.0 mm |
| Suction power | 22.8 N |
| Volume | 9.25 cm³ |
| Workpiece radius convex min. | 60 mm |
| Recommended hose Ø | 6 mm |
| Tear-off force | 64.5 N |
