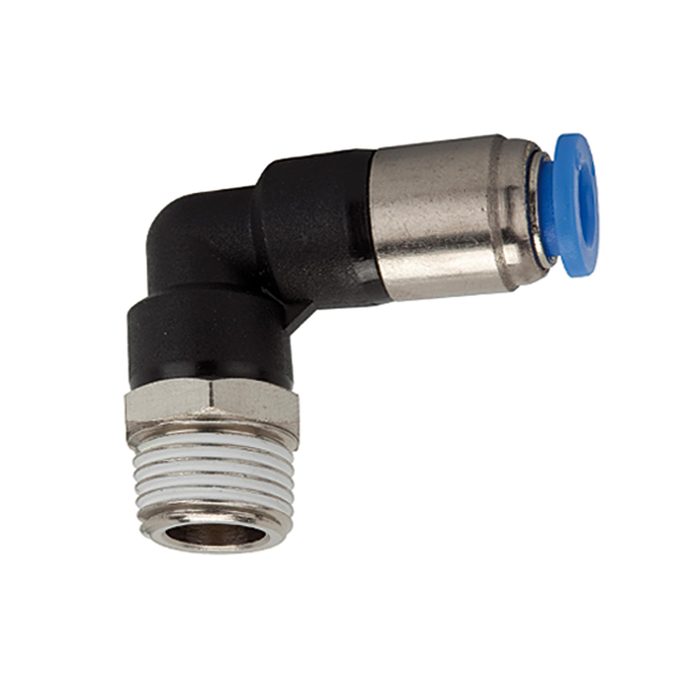

RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/4 o.
Type number: 198.1410
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Push-in L-fitting "Blue series" self-locking made of plastic or nickel-plated brass - Type 198.1410
The RIEGLER L push-in fitting "Blue series" self-closing, R 1/4 a. Ø10mm enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Connection thread R 1/4 (ISO 7-1) - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/4 |
| SW | 17 mm |
| Thread standard | ISO 7-1 |
| Function | Self-locking |
| for hose outer Ø | 10 mm |
| Execution | With PTFE thread coating |
| L1 | 42.5 mm |
| L2 | 34.3 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
| Construction method | rotatable |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

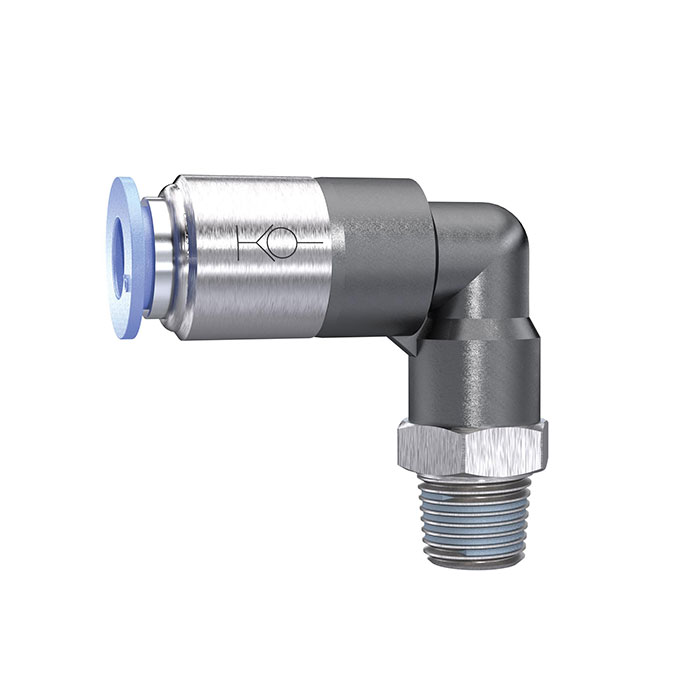

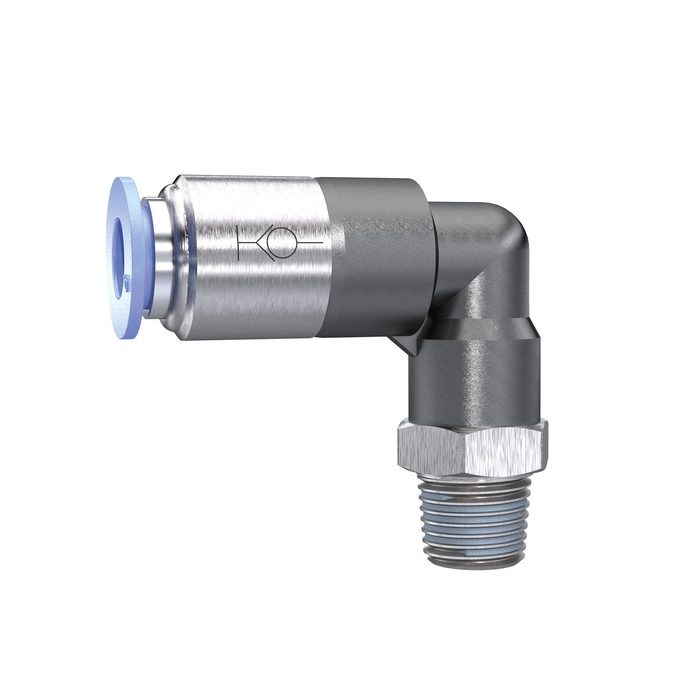

![[151479] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/4 o.](/web/image/product.template/210634/image_128/%5B151479%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20R%201-4%20o.?unique=80c724c)
|
