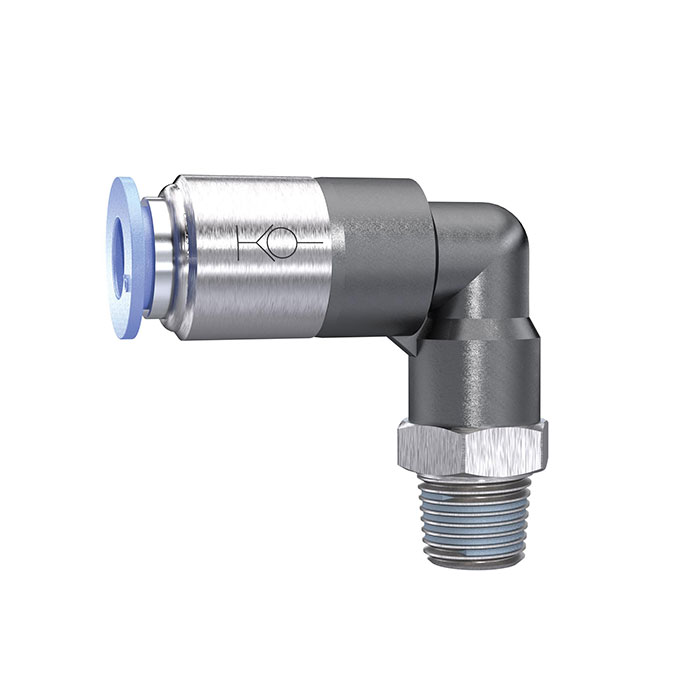

RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/4 o.
Typennummer: 198.1410-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Push-in L-fitting "Blue series" made of plastic or nickel-plated brass - Type 198.1410-2
The RIEGLER "Blue series" push-in L-fitting, self-closing, R 1/4 external enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Connection thread R 1/4 (ISO 7-1) - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/4 |
| SW | 17 mm |
| Thread standard | ISO 7-1 |
| Function | Self-locking |
| for hose outer Ø | 10 mm |
| Execution | With thread coating |
| L1 | 45 mm |
| L2 | 30 mm |
| Class name | EASY |
| Construction method | rotatable |
