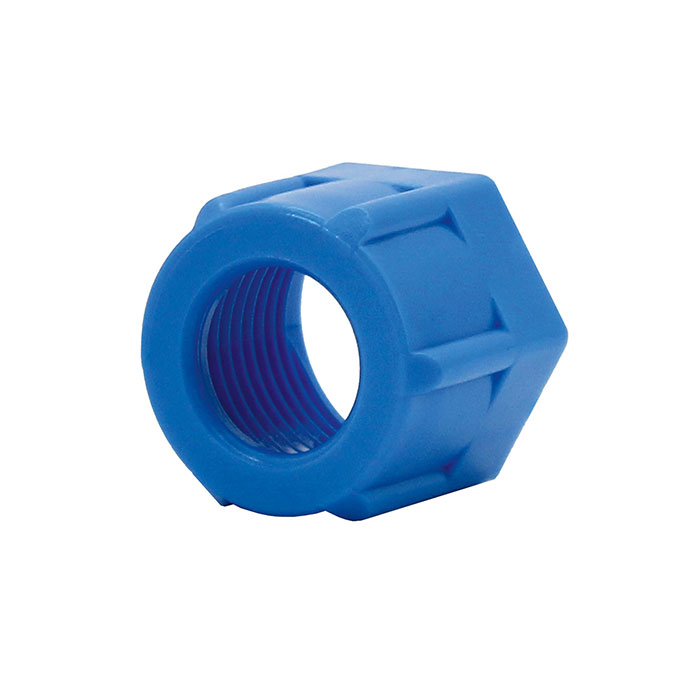

RIEGLER Clamping nut, M10x1, for hose 6/4 mm, AF 12, POM
Type number: 16/12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Clamping nut for pneumatic installation, max. 10 bar, M10x1.0 - type 16/12
The RIEGLER clamping nut, M10x1.0, for hose 6/4 mm, SW 12, POM connects compressed air hoses and pipes quickly and securely by simply screwing them in. The operating pressure range is 0 bar to 10 bar. The temperature range is between -10 °C and 60 °C. M10x1.0 connection thread - suitable for common industry standards. Easy installation and removal for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Thread | M10x1.0 |
| SW | 12 mm |
| for hose | 6/4 mm |
| L1 | 13 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | EASY |
