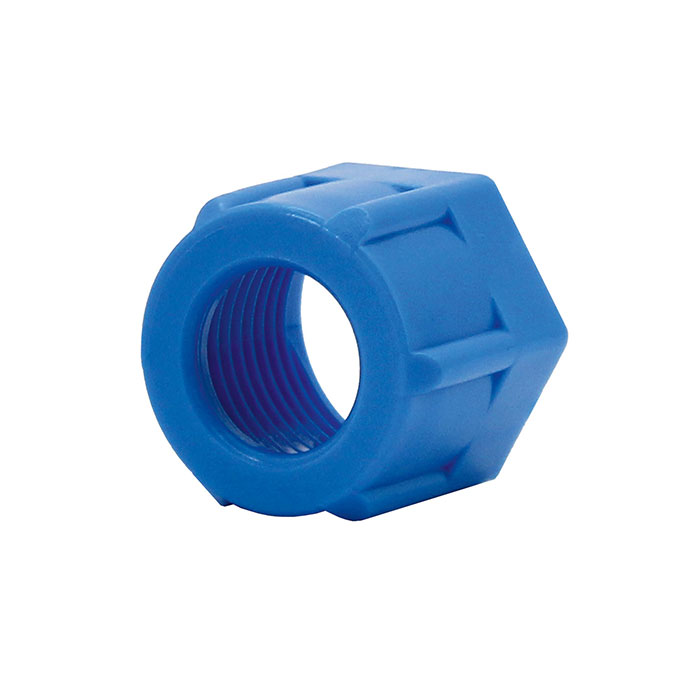

RIEGLER Clamping nut, M12x1, for hose 8/6 mm, AF 14, POM
Type number: 16/13
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Clamping nut, M12x1.0, for hose 8/6 mm, SW 14, operating pressure 0 - 10 bar, temp. -10 °C to 60 °C, POM
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Thread | M12x1.0 |
| SW | 14 mm |
| for hose | 8/6 mm |
| L1 | 13 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110753] RIEGLER Clamping nut, M10x1, for hose 6/4 mm, AF 12, POM](/web/image/product.template/181683/image_128/%5B110753%5D%20RIEGLER%20Clamping%20nut%2C%20M10x1%2C%20for%20hose%206-4%20mm%2C%20AF%2012%2C%20POM?unique=f04c07f)
|
Type number: 16/12 |
0.14 € | |
![[110756] RIEGLER Clamping nut, M14x1, for hose 10/8 mm, AF 17, POM](/web/image/product.template/181686/image_128/%5B110756%5D%20RIEGLER%20Clamping%20nut%2C%20M14x1%2C%20for%20hose%2010-8%20mm%2C%20AF%2017%2C%20POM?unique=c7cb47f)
|
Type number: 16/15 |
0.23 € | |
![[110755] RIEGLER Clamping nut, M16x1, for hose 12/9 mm, AF 19, POM](/web/image/product.template/181685/image_128/%5B110755%5D%20RIEGLER%20Clamping%20nut%2C%20M16x1%2C%20for%20hose%2012-9%20mm%2C%20AF%2019%2C%20POM?unique=c2d3803)
|
Type number: 16/14 |
0.48 € | |
