RIEGLER Angled bulkhead connector, M18x1.5, for hose 9/12 mm, AF 24, PA
Type number: 140.44
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Angled bulkhead connection for pneumatic installation, M18x1.5 - type 140.44
The RIEGLER elbow bulkhead connector, M18x1.5, for hose 9/12 mm, SW 24, PA connects compressed air hoses and pipes quickly and securely by simply screwing them in. Connection thread M18x1.5 - suitable for common industry standards. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| Thread | M18x1.5 |
| SW | 24 mm |
| for hose | 9/12 mm |
| L1 | 67 mm |
| L2 | 43 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

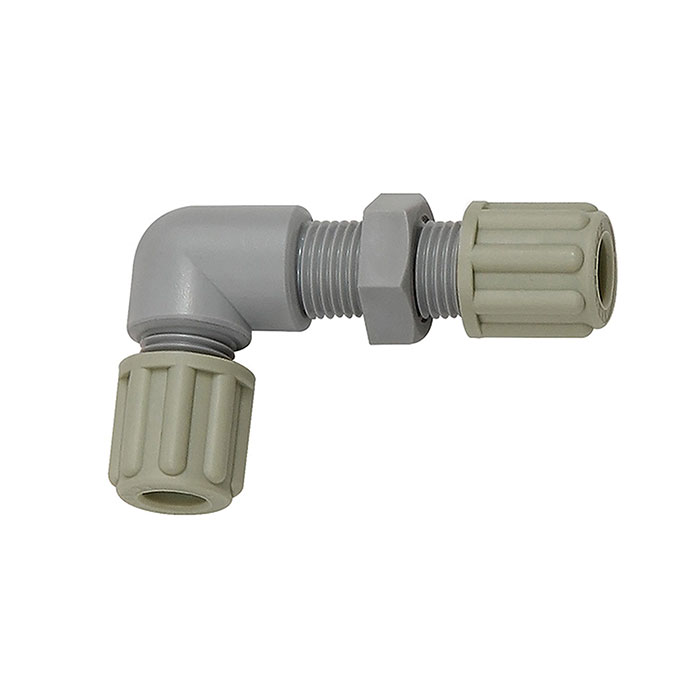

![[110844] RIEGLER Angled bulkhead connector, M10x1, for hose 4/6 mm, AF 14, PA](/web/image/product.template/181774/image_128/%5B110844%5D%20RIEGLER%20Angled%20bulkhead%20connector%2C%20M10x1%2C%20for%20hose%204-6%20mm%2C%20AF%2014%2C%20PA?unique=0eb50f5)
|
Type number: 140.41 |
2.44 € | |
![[110845] RIEGLER Angled bulkhead connector, M14x1.5, for hose 6/8 mm, AF 19, PA](/web/image/product.template/181775/image_128/%5B110845%5D%20RIEGLER%20Angled%20bulkhead%20connector%2C%20M14x1.5%2C%20for%20hose%206-8%20mm%2C%20AF%2019%2C%20PA?unique=7337c0f)
|
Type number: 140.42 |
3.61 € | |
![[110846] RIEGLER Angled bulkhead connector, M16x1.5, for hose 8/10 mm, AF 22, PA](/web/image/product.template/181776/image_128/%5B110846%5D%20RIEGLER%20Angled%20bulkhead%20connector%2C%20M16x1.5%2C%20for%20hose%208-10%20mm%2C%20AF%2022%2C%20PA?unique=bb7319e)
|
Type number: 140.43 |
4.82 € | |
