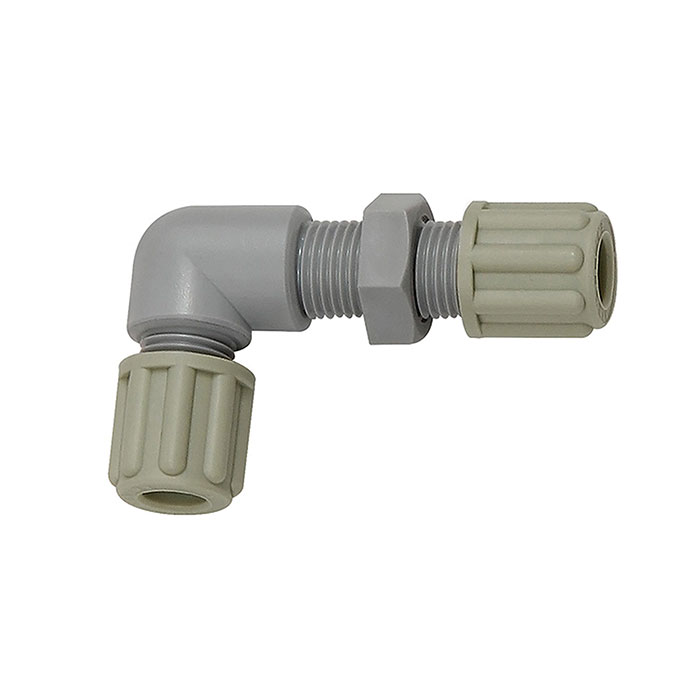

RIEGLER Angled bulkhead connector, M14x1.5, for hose 6/8 mm, AF 19, PA
Type number: 140.42
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Angled bulkhead connection for pneumatic installation, M14x1.5 - Type 140.42
The RIEGLER elbow bulkhead connector, M14x1.5, for hose 6/8 mm, SW 19, PA connects compressed air hoses and pipes quickly and securely by simply screwing them in. Connection thread M14x1.5 - suitable for common industry standards. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| Thread | M14x1.5 |
| SW | 19 mm |
| for hose | 6/8 mm |
| L1 | 53 mm |
| L2 | 33 mm |
| Class name | FLEX |
